What hardware is used to attach external sun visor to the A pillars?
There are 2 holes on each side.
Also, there are 7 holes for what must be wood screws into the top wood.
I tried searching "visor" here and at the vendor site. Ford Service has no entry in the index, nor does Ford Owner.
What hardware is used to attach external sun visor to the A pillars?
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
varmint
Topic author - Posts: 838
- Joined: Mon Jan 07, 2019 2:02 pm
- First Name: Vernon
- Last Name: Worley
- * REQUIRED* Type and Year of Model Ts owned: October 26, 1926 Coupe
- Location: New Orleans, LA
- Contact:
What hardware is used to attach external sun visor to the A pillars?
Vern (Vieux Carre)
-
jiminbartow
- Posts: 2434
- Joined: Sun Jan 06, 2019 10:55 pm
- First Name: James
- Last Name: Patrick
- * REQUIRED* Type and Year of Model Ts owned: 1926 Coupe
- Location: Bartow, FL
- Board Member Since: 2001
Re: What hardware is used to attach external sun visor to the A pillars?

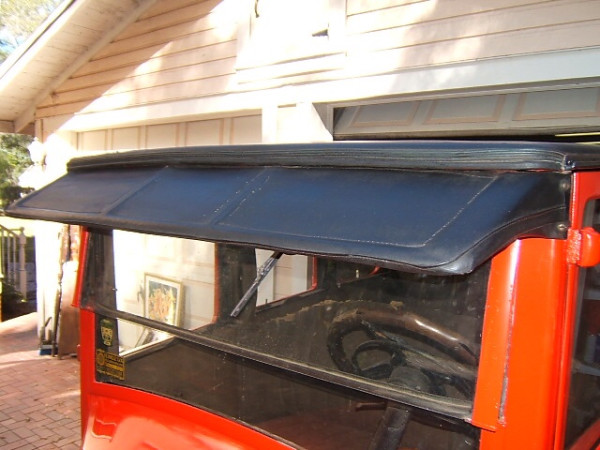

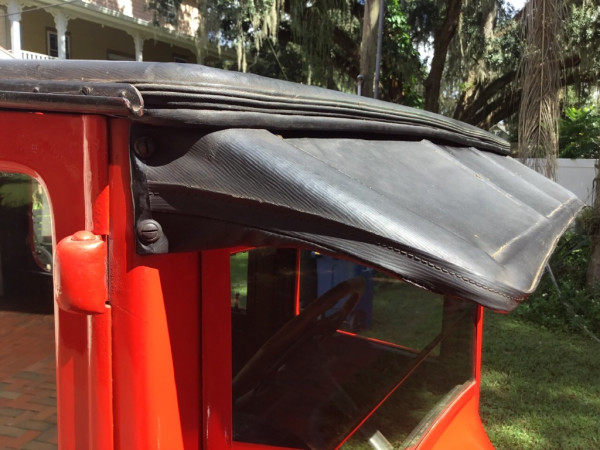

This is an original sunvisor on my 1926 Fordor. I hope this helps a little. Jim Patrick
-
Mark Gregush
- Posts: 5370
- Joined: Sat Jan 05, 2019 1:57 pm
- First Name: Mark
- Last Name: Gregush
- * REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1948 F2 Ford flat head 6 pickup 3 speed
- Location: Portland Or
- Board Member Since: 1999
Re: What hardware is used to attach external sun visor to the A pillars?
I know the voices aren't real but damn they have some good ideas!
1925 Cut down pickup
1948 Ford F2 pickup
1925 Cut down pickup
1948 Ford F2 pickup
-
Humblej
- Posts: 1957
- Joined: Sun Jan 06, 2019 12:23 pm
- First Name: Jeff
- Last Name: Humble
- * REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
- Location: Charlevoix, Mi
- Board Member Since: 2006
Re: What hardware is used to attach external sun visor to the A pillars?

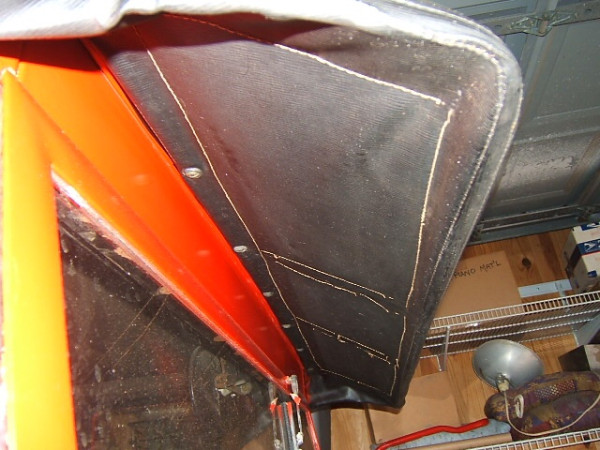

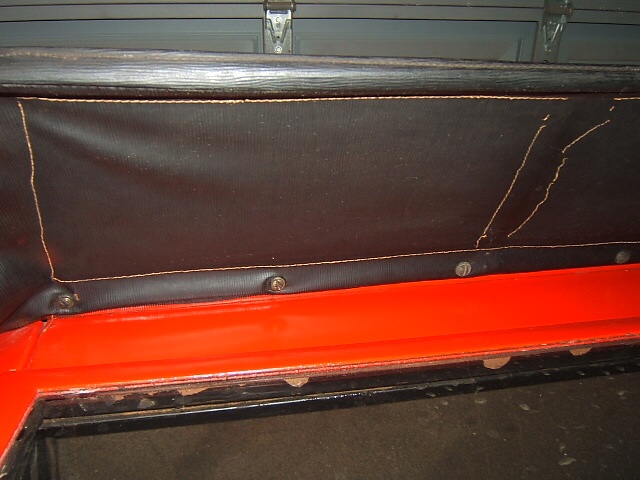

Oval head sheet metal screw with countersunk washer, like Jim shows.
-
varmint
Topic author - Posts: 838
- Joined: Mon Jan 07, 2019 2:02 pm
- First Name: Vernon
- Last Name: Worley
- * REQUIRED* Type and Year of Model Ts owned: October 26, 1926 Coupe
- Location: New Orleans, LA
- Contact:
Re: What hardware is used to attach external sun visor to the A pillars?
Thanks for the link.
I have the original style visor.
The washers look like escutcheons, all 7 underneath and the 4 on the sides.
Not machine screws for the sides, got it.
The holes are 1/4" on the visor but I did not measure the A-pillar holes though they look smaller.
Appreciate seeing the visor cover photos as I am missing the two inner corner brackets.
The paperwork shows the dimensions how to remake them.
I am also missing the two tabs but can weld on new ones.
So, what size works (four side screws)? #10, #12, #14, 1/4" ?
Thanks
I have the original style visor.
The washers look like escutcheons, all 7 underneath and the 4 on the sides.
Not machine screws for the sides, got it.
The holes are 1/4" on the visor but I did not measure the A-pillar holes though they look smaller.
Appreciate seeing the visor cover photos as I am missing the two inner corner brackets.
The paperwork shows the dimensions how to remake them.
I am also missing the two tabs but can weld on new ones.
So, what size works (four side screws)? #10, #12, #14, 1/4" ?
Thanks
Vern (Vieux Carre)
-
John.Zibell
- Posts: 361
- Joined: Mon Jan 07, 2019 9:09 am
- First Name: John
- Last Name: Zibell
- * REQUIRED* Type and Year of Model Ts owned: 1926 Tudor
- Location: Huntsville, AL
Re: What hardware is used to attach external sun visor to the A pillars?
Here is your hardware. http://www.modeltford.com/item/50537MK.aspx
1926 Tudor
