Rare View of Five-Main Bearing Crankshaft and Supports

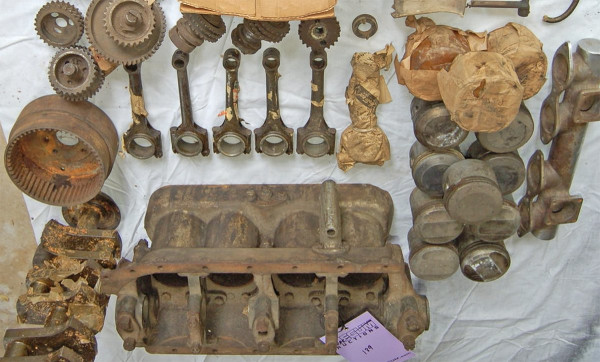

The lower end of this engine appears to be equipped with either a Roof or a Green five-main bearing crankshaft, and a set of bronze main bearing supports for #2 and #3 mains. All of the mains have been fitted with bronze caps with steel re-enforcing plates. Some of the other pieces in the photo appear to be DOHC Fronty parts and a clutch hub and cut-down flywheel for a 1928 Ford multiple-disc clutch conversion used on some racing engines post-1927.
The photo is by Mecom Auctions that sold parts from collector David V. Uihlein's collection at the 2011 Miller Race meet at the Milwaukee Mile race track.
The photo is by Mecom Auctions that sold parts from collector David V. Uihlein's collection at the 2011 Miller Race meet at the Milwaukee Mile race track.
-
Dan McEachern
- Posts: 1400
- Joined: Sun Jan 06, 2019 11:08 am
- First Name: DAN
- Last Name: MCEACHERN
- * REQUIRED* Type and Year of Model Ts owned: too many. '14 touring, 2 depot hacks, 2 speedsters
- Location: ALAMEDA,CA,USA
Re: Rare View of Five-Main Bearing Crankshaft and Supports
Interesting how the extra main saddles used the two adjacent tappet bores to hold the saddle into the block.
-
Les Schubert
- Posts: 1357
- Joined: Thu Jan 10, 2019 5:47 pm
- First Name: Les
- Last Name: Schubert
- * REQUIRED* Type and Year of Model Ts owned: 27 roadster 13 touring
- Location: Calgary
Re: Rare View of Five-Main Bearing Crankshaft and Supports

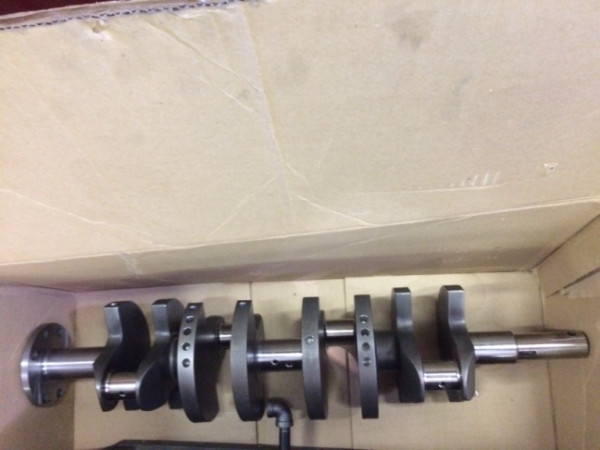

Another 5 main T crank

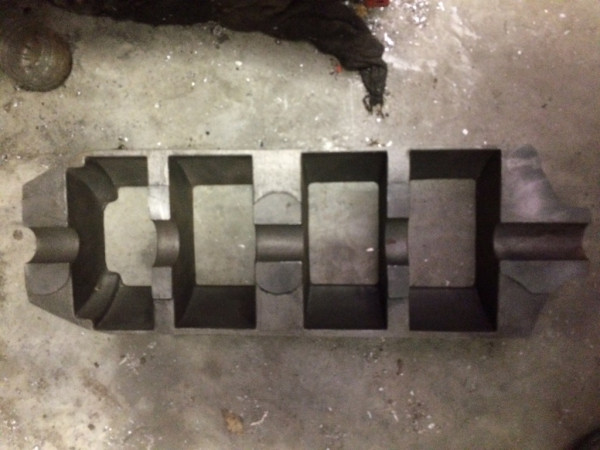

The support girdle
-
Les Schubert
- Posts: 1357
- Joined: Thu Jan 10, 2019 5:47 pm
- First Name: Les
- Last Name: Schubert
- * REQUIRED* Type and Year of Model Ts owned: 27 roadster 13 touring
- Location: Calgary
Re: Rare View of Five-Main Bearing Crankshaft and Supports

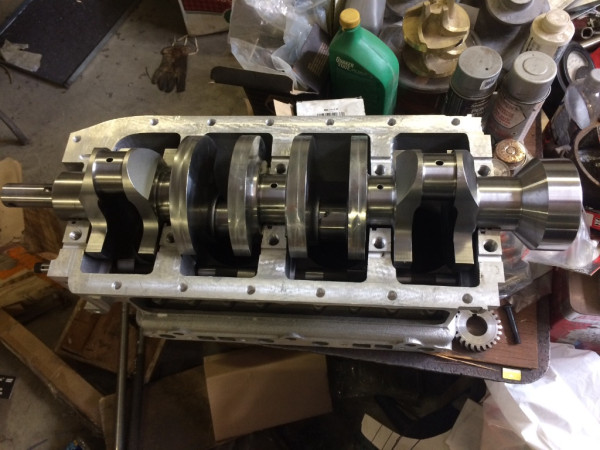

And of course this version!
-
David Greenlees
Topic author - Posts: 169
- Joined: Wed Feb 02, 2022 1:18 pm
- First Name: David
- Last Name: Greenlees
- * REQUIRED* Type and Year of Model Ts owned: 1913 Model T racing car, 1924 Model T Depot Hack with original York #803 body.
- Location: Guilford, VT
- Contact:
Re: Rare View of Five-Main Bearing Crankshaft and Supports
Dan, until just recently when I stumbled upon some photos of two of these bronze bulkheads out of an engine it was a mystery about how they attached, because of Roof's sideways view of the assembly in the Company's ads hid the inner details. This photo shows us all of those details.Dan McEachern wrote: ↑Sun Mar 27, 2022 3:37 pmInteresting how the extra main saddles used the two adjacent tappet bores to hold the saddle into the block.
-
Henry K. Lee
- Posts: 5474
- Joined: Sun Jan 06, 2019 11:09 am
- First Name: Henry
- Last Name: Lee
- * REQUIRED* Type and Year of Model Ts owned: Many
- Location: South Pittsburg, TN
- MTFCA Life Member: YES
Re: Rare View of Five-Main Bearing Crankshaft and Supports
OK Les you win! The full Monty Car Porn you have it hands down!!!!
Thanks for posting!!!!
Hank
Thanks for posting!!!!
Hank
-
Les Schubert
- Posts: 1357
- Joined: Thu Jan 10, 2019 5:47 pm
- First Name: Les
- Last Name: Schubert
- * REQUIRED* Type and Year of Model Ts owned: 27 roadster 13 touring
- Location: Calgary
Re: Rare View of Five-Main Bearing Crankshaft and Supports
Hank
Thank you for the kind words. I don’t view it as a competition. Really I’m just trying to inspire others with what can be done today!
Thank you for the kind words. I don’t view it as a competition. Really I’m just trying to inspire others with what can be done today!
-
It's Bill
- Posts: 279
- Joined: Mon Jan 07, 2019 6:41 pm
- First Name: Bill
- Last Name: Hoffer
- Location: Mars, PA
- Board Member Since: 2016
Re: Rare View of Five-Main Bearing Crankshaft and Supports
Apparently, anything! Cheers, Bill
-
Henry K. Lee
- Posts: 5474
- Joined: Sun Jan 06, 2019 11:09 am
- First Name: Henry
- Last Name: Lee
- * REQUIRED* Type and Year of Model Ts owned: Many
- Location: South Pittsburg, TN
- MTFCA Life Member: YES
Re: Rare View of Five-Main Bearing Crankshaft and Supports
On the same page with you Les! Just had to have a little fun!!!!!
Hank
