Air Friction carburetor instructions and other literature

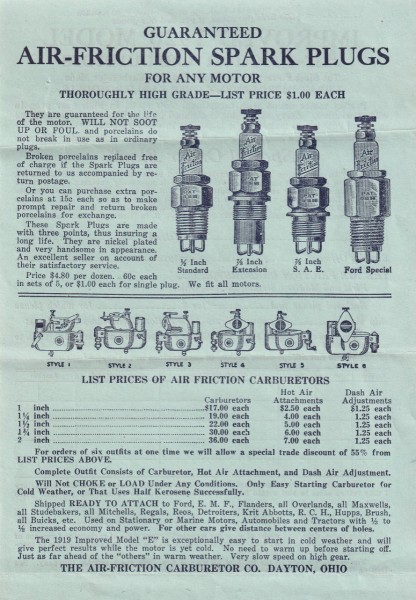

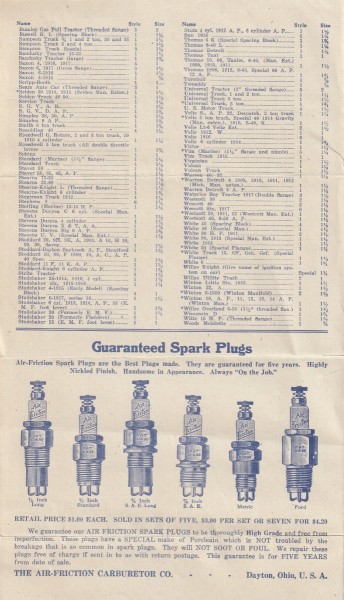

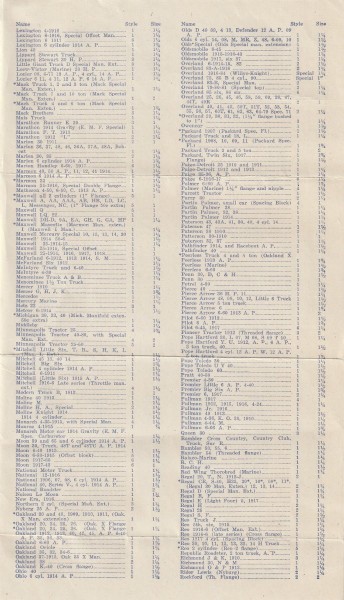

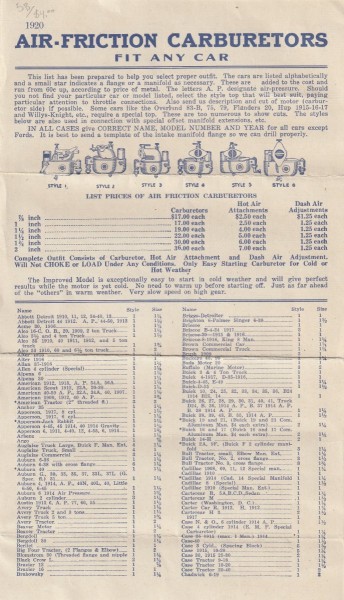

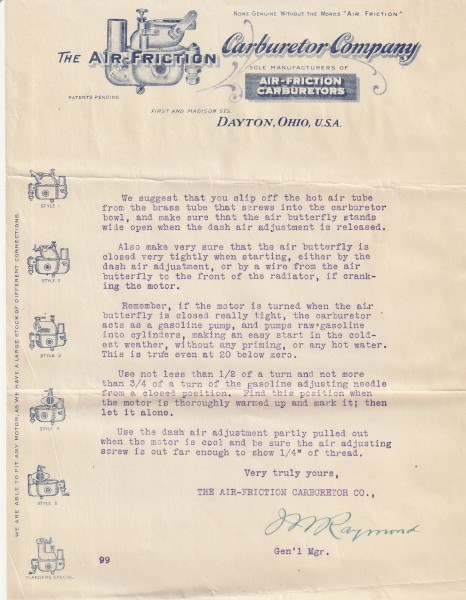

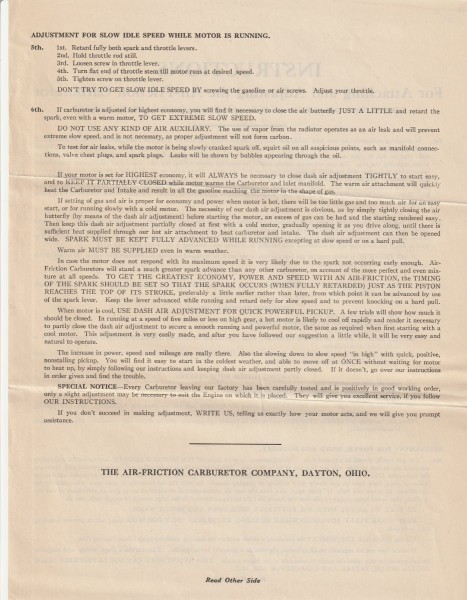

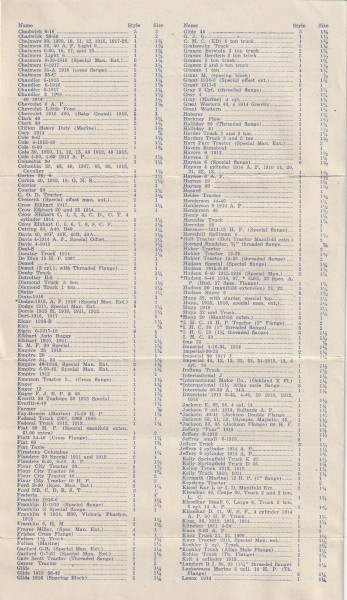

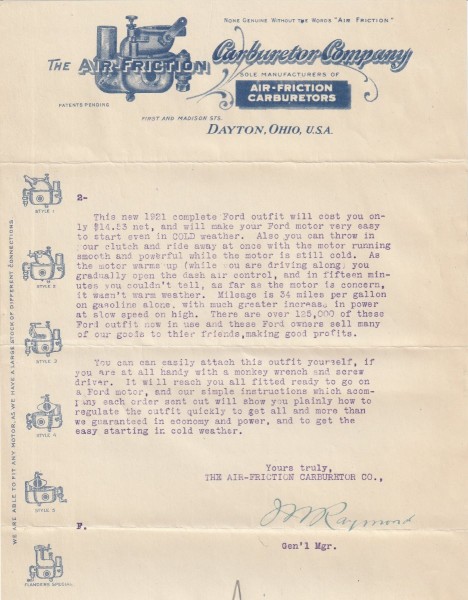

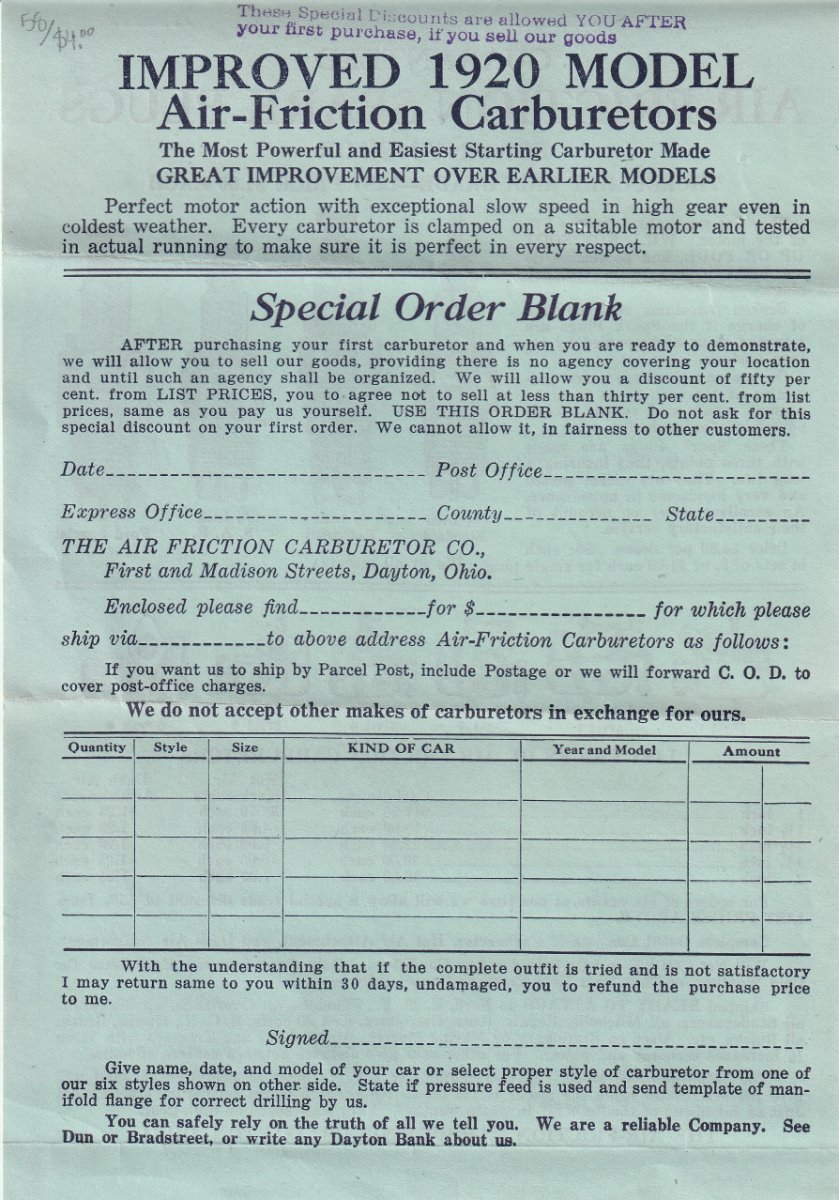

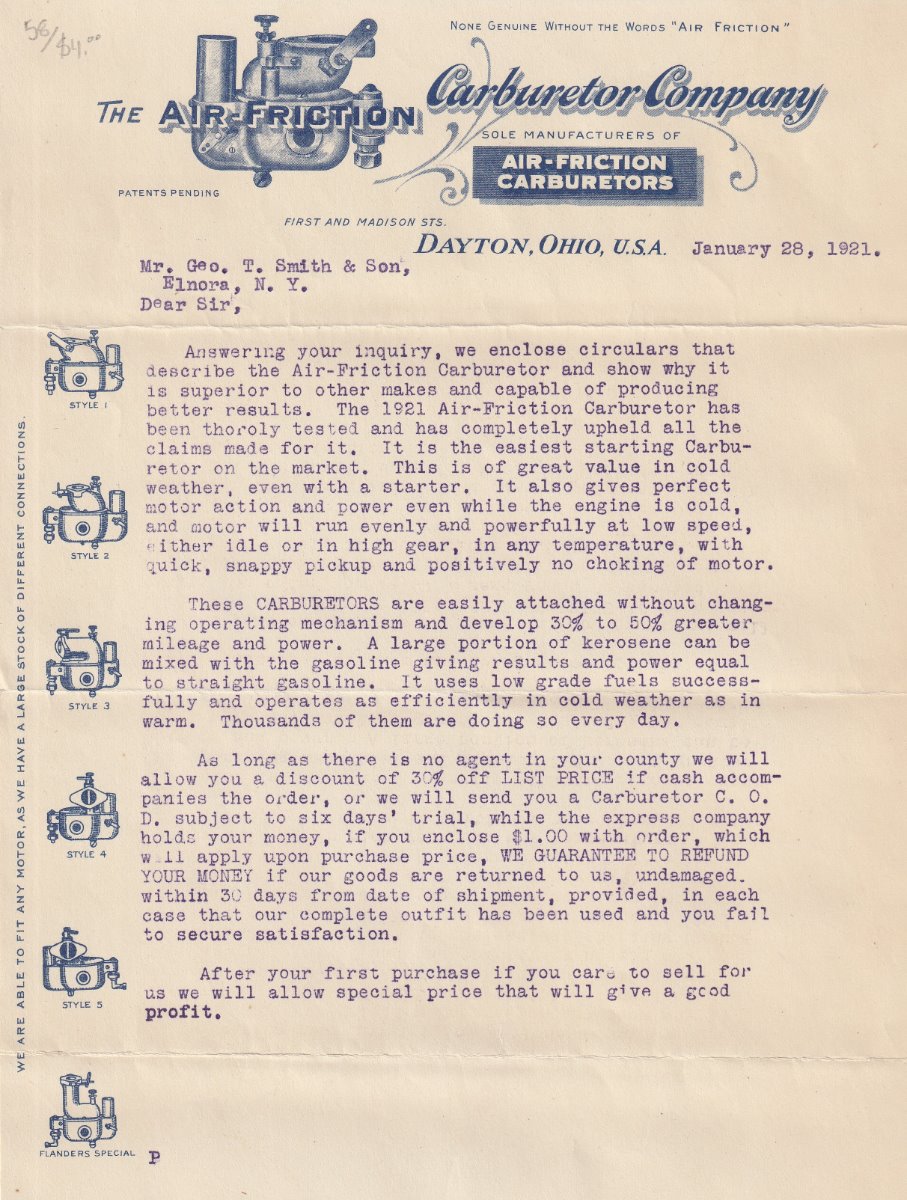

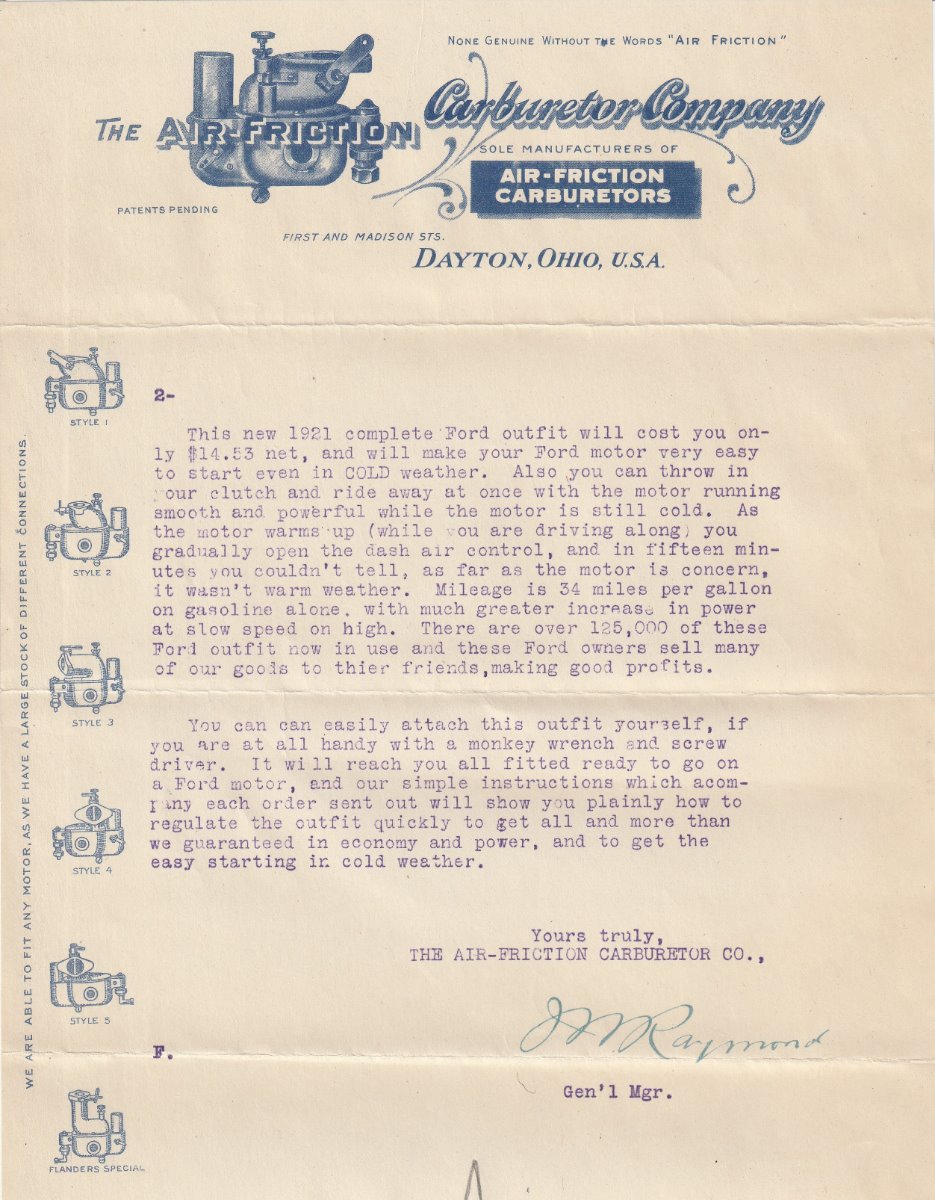

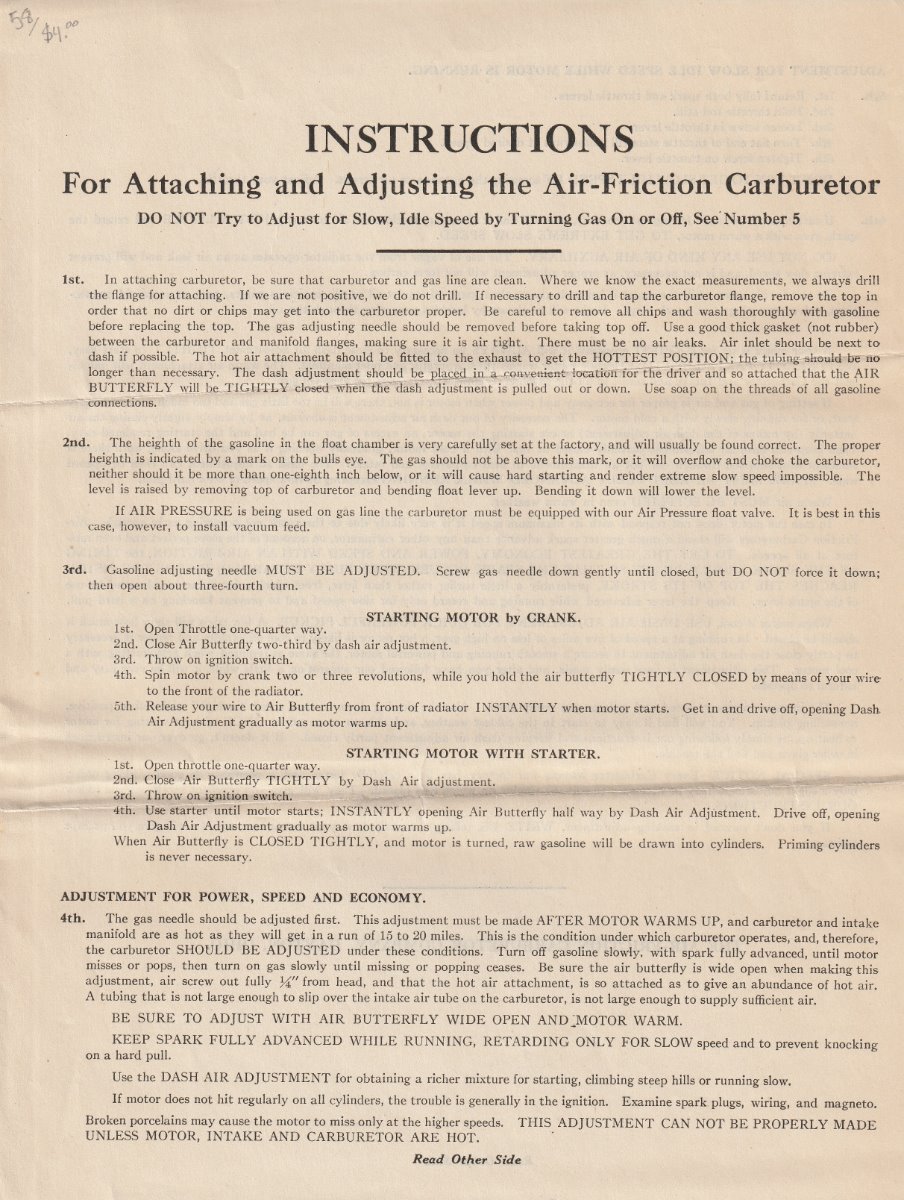

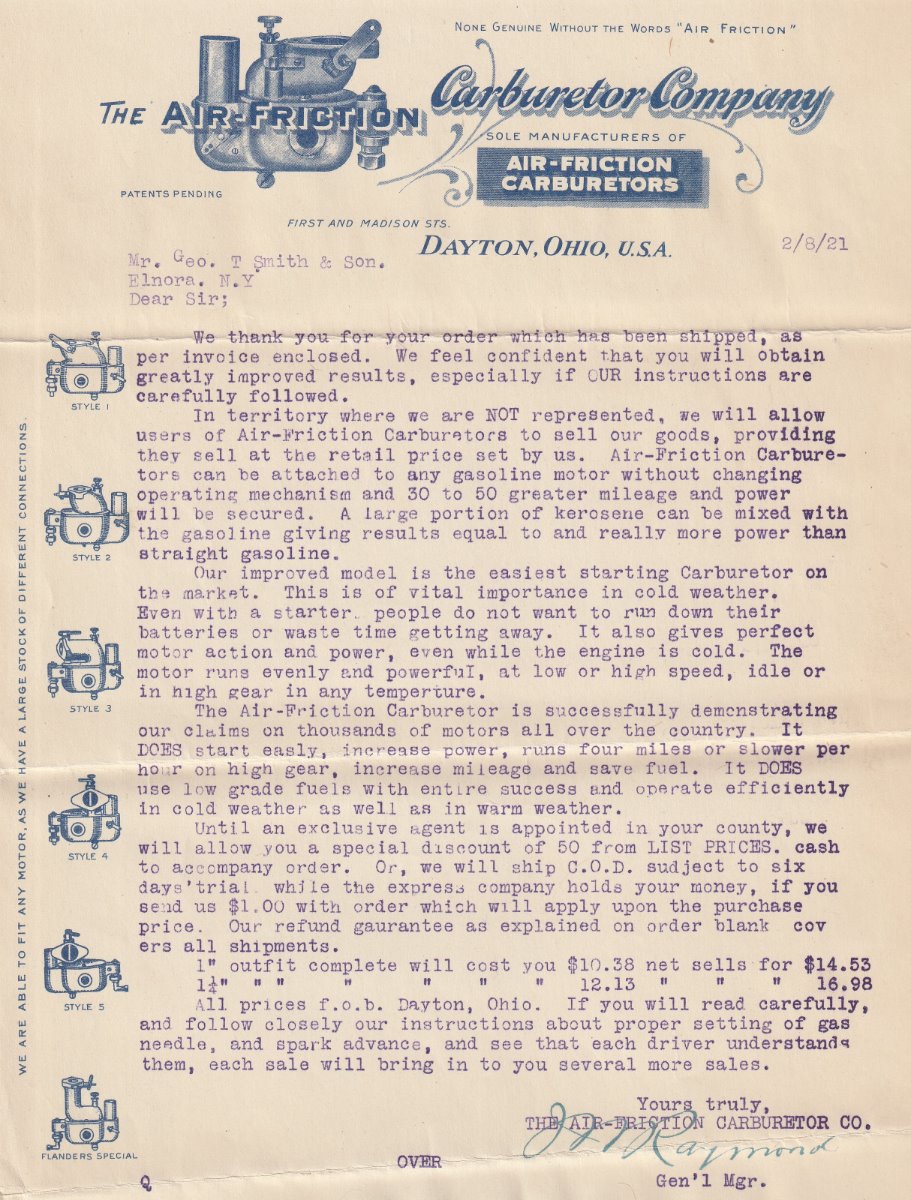

I just acquired several air friction carburetor pieces of literature. Here are some scans of them ..
-
JWalters
- Posts: 113
- Joined: Sun Jan 06, 2019 6:34 pm
- First Name: Jason
- Last Name: Walters
- * REQUIRED* Type and Year of Model Ts owned: 1922 Touring
- Location: Missouri
- Board Member Since: 2000
Re: Air Friction carburetor instructions and other literature
Good stuff Donnie! Thanks for sharing this info with us!
Jason Walters
Jason Walters
-
Eric Hylen
- Posts: 7
- Joined: Sun Jan 06, 2019 6:12 pm
- First Name: Eric
- Last Name: Hylen
- * REQUIRED* Type and Year of Model Ts owned: ‘14 Touring, ‘15 Runabout, ‘23 Runabout
- Location: Clearwater, MN
Re: Air Friction carburetor instructions and other literature
Thanks, for posting this info. I’ve got an Air Friction carb on the shelf that I’ve been meaning to try out. Having the proper instructions will make setting it up easier.
-
Corey Walker
- Posts: 641
- Joined: Sun Jan 06, 2019 11:46 am
- First Name: Corey
- Last Name: Walker
- * REQUIRED* Type and Year of Model Ts owned: 1914 runabout, 1921 homemade truck, 1921 Speedster
- Location: Brownsboro, TX
- Board Member Since: 2007
Re: Air Friction carburetor instructions and other literature

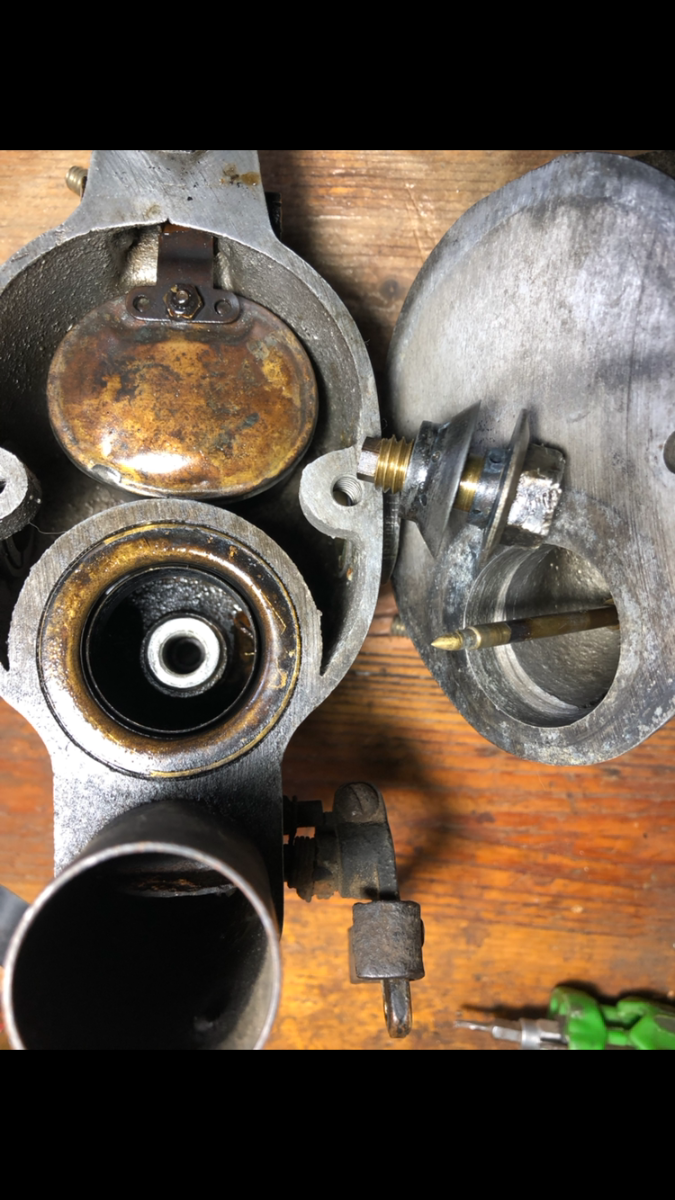

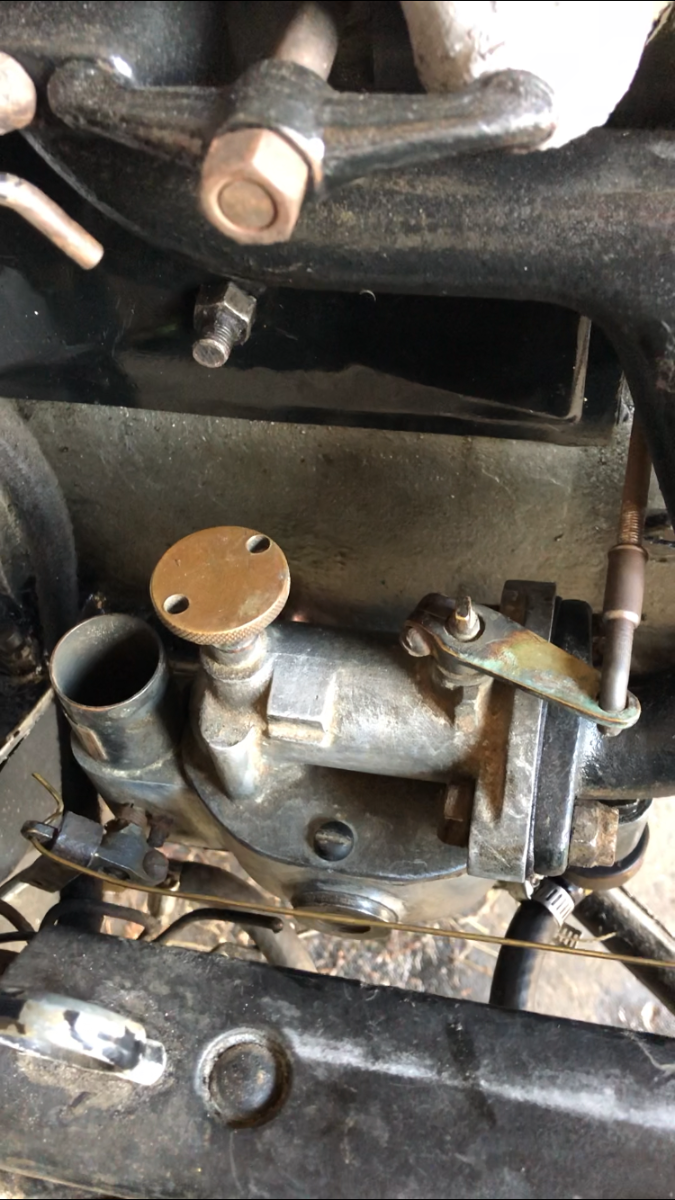

I bought one of those to find out what was inside. It seems to run ok but I didn’t run it for enough to check the mileage claims. The venturi slides up and down, I suppose it acts as an air valve like the flapper or balls in a Kingston.
- Attachments
-
-
Corey Walker, Brownsboro, Texas
-
dobro1956
Topic author - Posts: 1428
- Joined: Sun Jan 06, 2019 10:13 pm
- First Name: Donnie
- Last Name: Brown
- * REQUIRED* Type and Year of Model Ts owned: 1927 Sport Touring, 1919 Speedster, 1914 Speedster, Wards tractor conversion, non starter 1926 Improved Touring
- Location: Hills of Arkansas
Re: Air Friction carburetor instructions and other literature
Air Friction carbs are fairly common, but other than ads, I have seen very little info or items pertaining to the carbs. A few years ago I did find a watch fob, and a hat/lapel pin. Im not sure if I ever posted a photo of the watch fob and pin. So Ill post them here, just in case .....
