'26-'27 Radiator Fan Lube??

Post by Professor Fate » Sat Apr 09, 2022 9:05 pm

Can you or how do you lube the bearings in the hub of a '26-'27 fan?
Not seeing the screw to lube earlier ones on "improved" T.
Thanks in advance.
________________
**FATE**
---------------------------
Top

jiminbartow
Posts: 2434
Joined: Sun Jan 06, 2019 10:55 pm
First Name: James
Last Name: Patrick
* REQUIRED* Type and Year of Model Ts owned: 1926 Coupe
Location: Bartow, FL
Board Member Since: 2001

Re: '26-'27 Radiator Fan Lube??

Post by jiminbartow » Sat Apr 09, 2022 11:09 pm

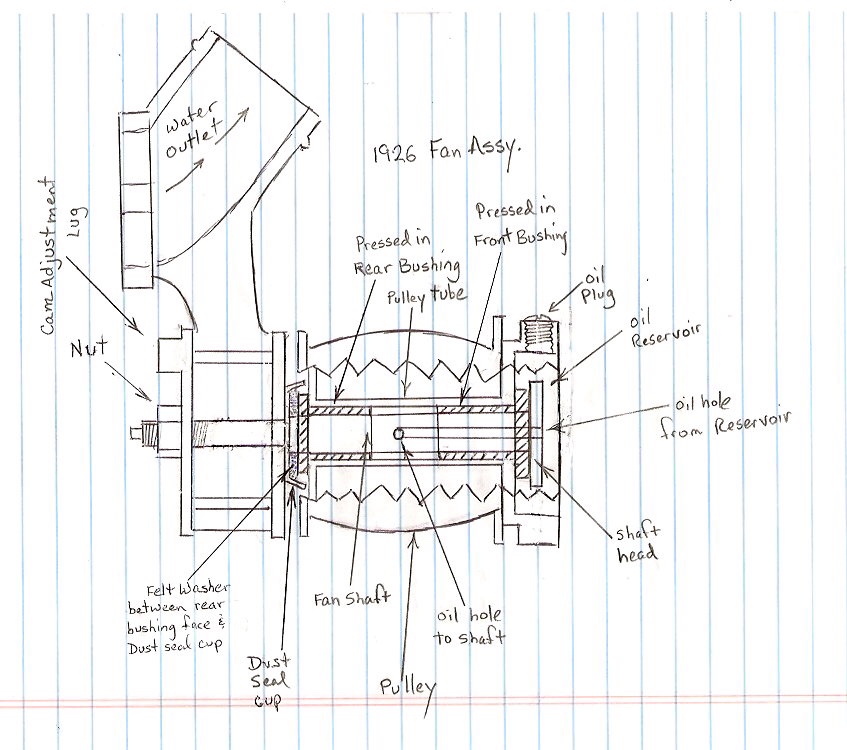

Unscrew the fan hub set screw just behind the fan and fill the reservoir with engine oil. The oil flows through a tunnel through the center of the shaft and comes out into the void between the front and rear bushings. Jim Patrick

Top
User avatar

DanTreace
Posts: 3813
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
* REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
Location: North Central FL
Board Member Since: 2000
Contact:
Contact DanTreace

Re: '26-'27 Radiator Fan Lube??

Post by DanTreace » Sun Apr 10, 2022 5:28 am

Have found heavy oil like 600w gear oil better as less can sling past the felt seal, clings well to the brass bushing surface too.
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Top

Allan
Posts: 6609
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
* REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
Location: Gawler, Australia

Re: '26-'27 Radiator Fan Lube??

Post by Allan » Sun Apr 10, 2022 7:02 am

Chain bar oil is rather clingy too.
Allan from down under.
Top
User avatar

Humblej
Posts: 1957
Joined: Sun Jan 06, 2019 12:23 pm
First Name: Jeff
Last Name: Humble
* REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
Location: Charlevoix, Mi
Board Member Since: 2006

Re: '26-'27 Radiator Fan Lube??

Post by Humblej » Sun Apr 10, 2022 7:16 am

As everyone has already stated, oil. But for oil to stay in the hub you need a good felt seal at the back and a good sealing paper gasket at the fan blade, and your bushings cannot be all worn out and sloppy.
Top

Bryant
Posts: 1152
Joined: Sat Sep 11, 2021 3:11 pm
First Name: Bryant
Last Name: Shafer
* REQUIRED* Type and Year of Model Ts owned: 1926 Tudor transforming to a closed cab pickup
Location: Myersville Maryland
Board Member Since: 2021

Re: '26-'27 Radiator Fan Lube??

Post by Bryant » Sun Apr 10, 2022 10:48 am

jiminbartow wrote: ↑
Sat Apr 09, 2022 11:09 pm
 Unscrew the fan hub set screw just behind the fan and fill the reservoir with engine oil. The oil flows through a tunnel through the center of the shaft and comes out into the void between the front and rear bushings. Jim Patrick


That’s a nice drawing Jim! Very detailed 👍
“Whether you think you can, or think you can’t-you’re right.”
Top

Topic author
Professor Fate
Posts: 755
Joined: Tue Jan 08, 2019 12:39 am
First Name: Dan
Last Name: S
* REQUIRED* Type and Year of Model Ts owned: '23 and '26
Location: Taxachusetts
Board Member Since: 2015

Re: '26-'27 Radiator Fan Lube??

Post by Professor Fate » Sun Apr 10, 2022 1:48 pm

Thank you!
-Dan
________________
**FATE**
---------------------------
Top

Alan Long
Posts: 381
Joined: Tue Jan 08, 2019 2:33 am
First Name: Alan
Last Name: Long
* REQUIRED* Type and Year of Model Ts owned: 1910 Canadian Touring Car and 1926 Australian built Utility
Location: Western Australia

Re: '26-'27 Radiator Fan Lube??

Post by Alan Long » Sun Apr 10, 2022 8:46 pm

My earlier post on this subject disappeared for some reason... but I agree with all of the above responses except you may have
a modern sealed bearing upgraded Fan Hub? I would remove and service your Fan / Hub. Make sure the oil feed holes are clear
and all parts are serviceable. It will give you peace if mind to know the style you have and that it’s well lubed, serviceable
and give you trouble free service for many years!
Cheers Alan
Western Australia
Top

jiminbartow
Posts: 2434
Joined: Sun Jan 06, 2019 10:55 pm
First Name: James
Last Name: Patrick
* REQUIRED* Type and Year of Model Ts owned: 1926 Coupe
Location: Bartow, FL
Board Member Since: 2001

Re: '26-'27 Radiator Fan Lube??

Post by jiminbartow » Sun Apr 10, 2022 10:08 pm

Thank you Bryant. I drew it ten years ago when I had my fan assembly apart installing new bushings and seals. Regarding the oil viscosity, the most important thing is to find a happy medium. The oil needs to be thin enough to flow through the shaft tube but thick enough to not be slung out. Too thick and it will not be able to find its’ way through the shaft to the void between the bushings. Jim Patrick.
Last edited by jiminbartow on Mon Apr 11, 2022 9:00 pm, edited 1 time in total.
Top

Topic author
Professor Fate
Posts: 755
Joined: Tue Jan 08, 2019 12:39 am
First Name: Dan
Last Name: S
* REQUIRED* Type and Year of Model Ts owned: '23 and '26
Location: Taxachusetts
Board Member Since: 2015

Re: '26-'27 Radiator Fan Lube??

Post by Professor Fate » Sun Apr 10, 2022 11:35 pm

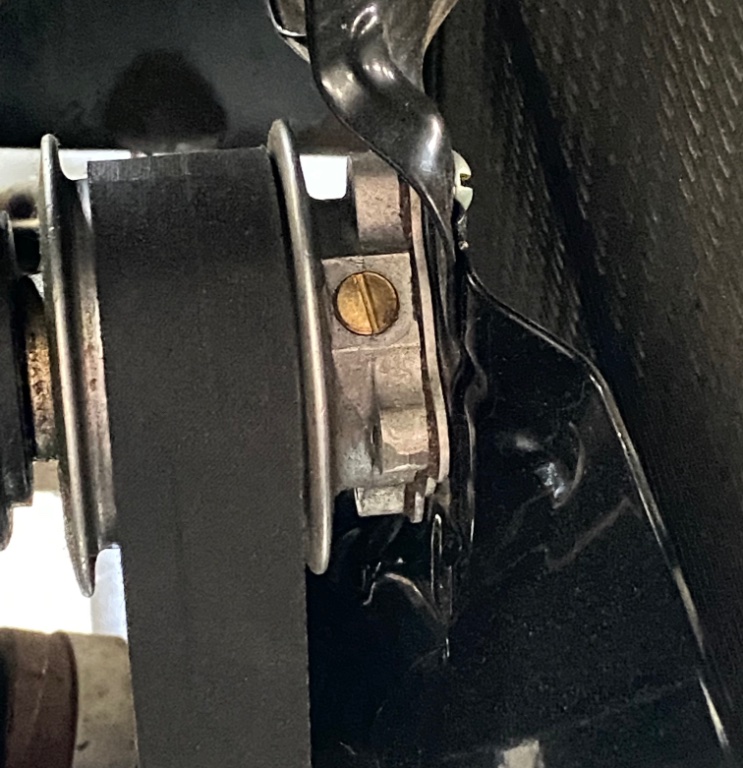

I looked fort the oil screw and couldn't find it. Might be under some paint.
Attachments
________________
**FATE**
---------------------------
Top
User avatar

ABoer
Posts: 229
Joined: Mon Jan 07, 2019 2:41 pm
First Name: Anthonie
Last Name: Boer
* REQUIRED* Type and Year of Model Ts owned: 1912 touring 1923 roadster 1925 pickup
Location: Klaaswaal NL

Re: '26-'27 Radiator Fan Lube??

Post by ABoer » Mon Apr 11, 2022 6:28 am

Is it a problem to lube the bearings with grease ?
Toon
Top
User avatar

Humblej
Posts: 1957
Joined: Sun Jan 06, 2019 12:23 pm
First Name: Jeff
Last Name: Humble
* REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
Location: Charlevoix, Mi
Board Member Since: 2006

Re: '26-'27 Radiator Fan Lube??

Post by Humblej » Mon Apr 11, 2022 6:56 am

Grease is not a good lube for a bushing turning at a high speed. The fan pulley is a little smaller than the crankshaft pulley, so the fan is turning faster than the crankshaft, that's too fast for grease as a lube for a bushing in my opinion.
Top

Chuck Regan
Posts: 80
Joined: Tue Jan 08, 2019 1:58 am
First Name: Chuck
Last Name: Regan
* REQUIRED* Type and Year of Model Ts owned: 1926 Roadster Pickup
Location: Thousand Oaks, CA
Board Member Since: 2019

Re: '26-'27 Radiator Fan Lube??

Post by Chuck Regan » Mon Apr 11, 2022 11:45 am

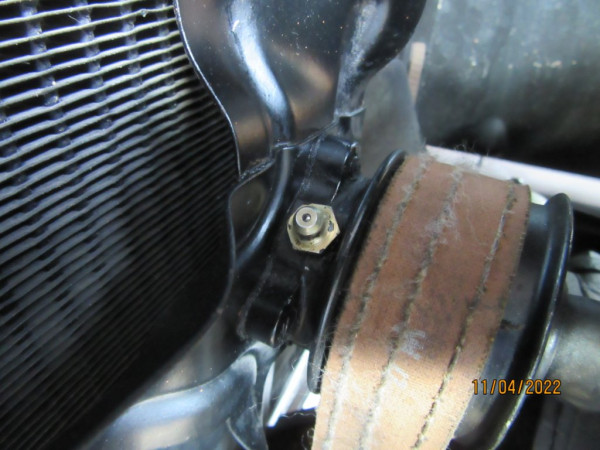

Dan - here is photo of oil screw on my ‘26.
Attachments
Top

Original Smith
Posts: 3699
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
* REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
Location: Lomita, California
MTFCA Life Member: YES

Re: '26-'27 Radiator Fan Lube??

Post by Original Smith » Mon Apr 11, 2022 12:10 pm

I haven't seen any documentation from Ford, on what they used back then, but I am using SAE 140 in mine, and it works. It's a good idea to check it from time to time, and it does leak out over a period of time. Putting in a modern bearing is a waste of time. Be sure to use the proper felt seal and retainer like Ford says, and you will have no regrets.
Top

Topic author
Professor Fate
Posts: 755
Joined: Tue Jan 08, 2019 12:39 am
First Name: Dan
Last Name: S
* REQUIRED* Type and Year of Model Ts owned: '23 and '26
Location: Taxachusetts
Board Member Since: 2015

Re: '26-'27 Radiator Fan Lube??

Post by Professor Fate » Mon Apr 11, 2022 3:20 pm

Thank you for the picture. I'll check later today, but I think the brass screw on mine is under some paint. Might have to clean things up a bit.

But thanks again.
--Dan

Chuck Regan wrote: ↑
Mon Apr 11, 2022 11:45 am
 Dan - here is photo of oil screw on my ‘26.
________________
**FATE**
---------------------------
Top
User avatar

JohnH
Posts: 367
Joined: Sun Jan 06, 2019 6:57 pm
First Name: John
Last Name: Hunter
* REQUIRED* Type and Year of Model Ts owned: 1926 Geelong Tourer
Location: Blue Mountains, Australia
Board Member Since: 2002
Contact:
Contact JohnH

Re: '26-'27 Radiator Fan Lube??

Post by JohnH » Mon Apr 11, 2022 7:42 pm

Original Smith wrote: ↑
Mon Apr 11, 2022 12:10 pm
 Be sure to use the proper felt seal and retainer like Ford says, and you will have no regrets.
After owning my T for nearly 20yrs, I had no idea there was such a seal. There wasn't one there when I got the car. Just goes to show there's still more to learn. Sure enough, the felt does exist https://www.modeltford.com/item/3983.aspx
Until now I just accepted the fan hub was a 'total loss' oiling system and put up with the mess. And, I was about to order a modern sealed bearing to stop the oil leaking...
Thanks for mentioning this!
Top

Topic author
Professor Fate
Posts: 755
Joined: Tue Jan 08, 2019 12:39 am
First Name: Dan
Last Name: S
* REQUIRED* Type and Year of Model Ts owned: '23 and '26
Location: Taxachusetts
Board Member Since: 2015

Re: '26-'27 Radiator Fan Lube??

Post by Professor Fate » Tue Apr 12, 2022 8:50 pm

Thanks for that pic Chuck.
I had to do a little exploring thru multiple layers of paint and gunk to find mine on my '26 project.
Road testing of car weeks away now..... can't wait.
I built it from a very clean frame, a rusty rolling chassis, and a pile of parts.
I've had a great time just getting to this point. Fun!!!
________________
**FATE**
---------------------------
Top

Chuck Regan
Posts: 80
Joined: Tue Jan 08, 2019 1:58 am
First Name: Chuck
Last Name: Regan
* REQUIRED* Type and Year of Model Ts owned: 1926 Roadster Pickup
Location: Thousand Oaks, CA
Board Member Since: 2019

Re: '26-'27 Radiator Fan Lube??

Post by Chuck Regan » Tue Apr 12, 2022 9:21 pm

Dan - glad the picture helped - holler if you need anything else. Post a pic of your ‘26 when she’s on the road.
Top

Topic author
Professor Fate
Posts: 755
Joined: Tue Jan 08, 2019 12:39 am
First Name: Dan
Last Name: S
* REQUIRED* Type and Year of Model Ts owned: '23 and '26
Location: Taxachusetts
Board Member Since: 2015

Re: '26-'27 Radiator Fan Lube??

Post by Professor Fate » Tue Apr 12, 2022 9:27 pm

Half windshield and hood to be installed shortly. Speedster style! No fenders 4 me......😁
Attachments
________________
**FATE**
---------------------------
Top

Topic author
Professor Fate
Posts: 755
Joined: Tue Jan 08, 2019 12:39 am
First Name: Dan
Last Name: S
* REQUIRED* Type and Year of Model Ts owned: '23 and '26
Location: Taxachusetts
Board Member Since: 2015

Re: '26-'27 Radiator Fan Lube??

Post by Professor Fate » Tue Apr 12, 2022 9:31 pm

Can't wait to go running with the pack in '22!
