how to remove & replace hub bearing cup

Post by andy2794 » Wed Apr 20, 2022 12:31 pm

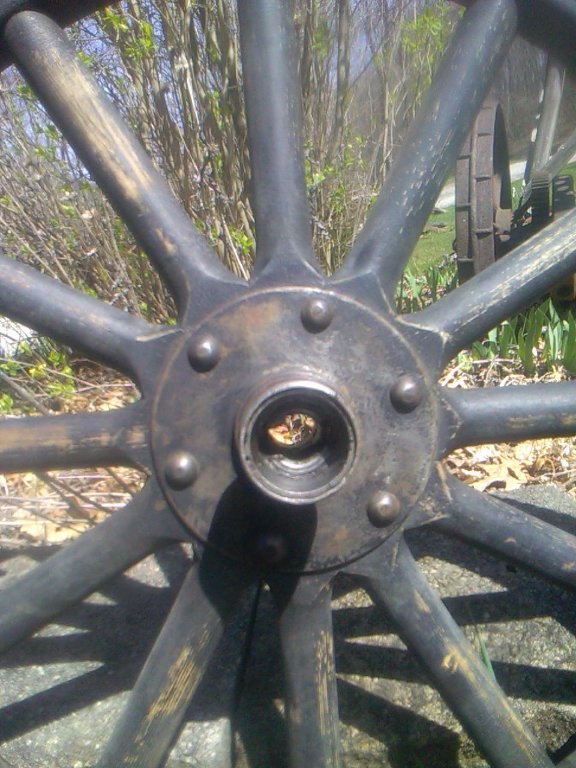

Are there some easy to follow instructions on how to remove & replace hub bearing cup?
Attachments
Top

Jerry VanOoteghem
Posts: 4082
Joined: Sun Jan 06, 2019 4:06 pm
First Name: Jerry
Last Name: Van
Location: S.E. Michigan

Re: how to remove & replace hub bearing cup

Post by Jerry VanOoteghem » Wed Apr 20, 2022 3:49 pm

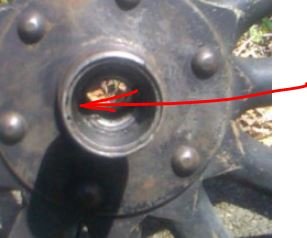

Slip a long punch into the back end of the hub and position it in one of the two notches, (see arrow). The notches allow access to the backside of the cup. Tap the cup out by hitting it on its backside. Alternate between the two notches to drive it out straight. If you get it cocked you'll stretch the hub nose and ruin it.

Same process for the large cup removal.
Top
User avatar

George House
Posts: 2814
Joined: Sun Jan 06, 2019 5:25 pm
First Name: George
Last Name: House
* REQUIRED* Type and Year of Model Ts owned: ‘10 Maxwell AA, ‘11Hupp Model 20, Two 1914 Ford runabouts, 19 centerdoor, 25 C Cab,26 roadster
Location: Northern Caldwell County TX
MTFCA Life Member: YES
Board Member Since: 1999

Re: how to remove & replace hub bearing cup

Post by George House » Wed Apr 20, 2022 4:26 pm

OR......if you have an arc welder; strike about an inch of weld on the cup across from each other. It’ll probably fall out after that shrinks it
A Fine is a Tax for Doing Something Wrong….A Tax is a Fine for Doing Something RIGHT 🤔
Top

Topic author
andy2794
Posts: 68
Joined: Thu Dec 30, 2021 5:47 pm
First Name: Andy
Last Name: Apjok
* REQUIRED* Type and Year of Model Ts owned: 1916 Touring
Location: Indiana, PA

Re: how to remove & replace hub bearing cup

Post by andy2794 » Thu Apr 21, 2022 8:34 am

thank you for the advise
