How much torque for a wrist pin bolt, and how much for rod castle nuts?
Thanks!
How much torque?
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
WayneJ
Topic author - Posts: 521
- Joined: Sun Jan 06, 2019 8:15 pm
- First Name: Wayne
- Last Name: Jorgensen
- * REQUIRED* Type and Year of Model Ts owned: 1915 Runabout, 1918 Runabout
- Location: Batavia, IL
- Board Member Since: 2013
How much torque?
Wayne Jorgensen, Batavia, IL
1915 Runabout
1918 Runabout
1915 Runabout
1918 Runabout
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: How much torque?
Perhaps more important than the torque applied to the wrist pin bolts is how that torque is applied. The piston/rod assembly needs to be held by the wrist pin when torquing the pin bolt. I have two dummy spiggots which go in each end of the wrist pin, and then the whole is held in a vice while the bolt is tightened. Otherwise you run the real risk of twisting the rod if it is held while the bolt is tightened.
Hope this helps.
Allan from down under.
Hope this helps.
Allan from down under.
-
Kerry
- Posts: 1447
- Joined: Mon Jan 07, 2019 2:42 pm
- First Name: Frank
- Last Name: van Ekeren
- * REQUIRED* Type and Year of Model Ts owned: 1916 touring, 1916 pick-up, 1924 coupe, 1926 touring, 1927 touring
- Location: Rosedale Vic Australia
Re: How much torque?
Some who like to use a torque value say 30lbs. I still do it Henry's way of by feel, Also as Allan has posted, hold by wrist pin when tightening the bolt, the pin is hollow so slide onto a phillips screw driver in a vice, also remember that the wrist pin bolt faces the cam shaft when assembling engine.
-
Mark Gregush
- Posts: 5370
- Joined: Sat Jan 05, 2019 1:57 pm
- First Name: Mark
- Last Name: Gregush
- * REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1948 F2 Ford flat head 6 pickup 3 speed
- Location: Portland Or
- Board Member Since: 1999
Re: How much torque?
I use a piece of rod held in the vice and go by feel also, using an original Ford wrench.
Adding: Forgot because I have not used it yet, I have a piston vice.
Adding: Forgot because I have not used it yet, I have a piston vice.
Last edited by Mark Gregush on Fri Apr 29, 2022 11:17 am, edited 1 time in total.
I know the voices aren't real but damn they have some good ideas!
1925 Cut down pickup
1948 Ford F2 pickup
1925 Cut down pickup
1948 Ford F2 pickup
-
ABoer
- Posts: 229
- Joined: Mon Jan 07, 2019 2:41 pm
- First Name: Anthonie
- Last Name: Boer
- * REQUIRED* Type and Year of Model Ts owned: 1912 touring 1923 roadster 1925 pickup
- Location: Klaaswaal NL
Re: How much torque?

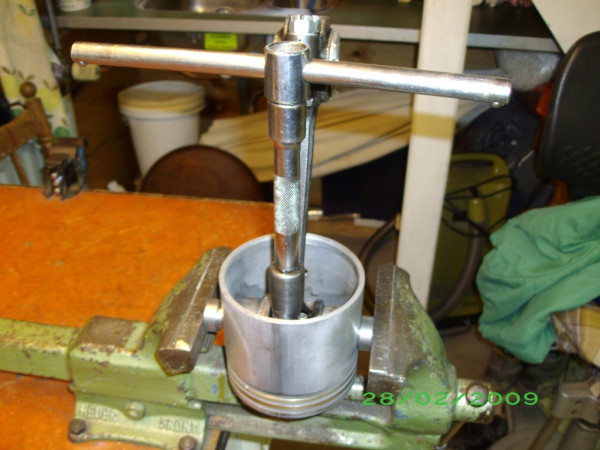

I use this ;
Toon
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: How much torque?

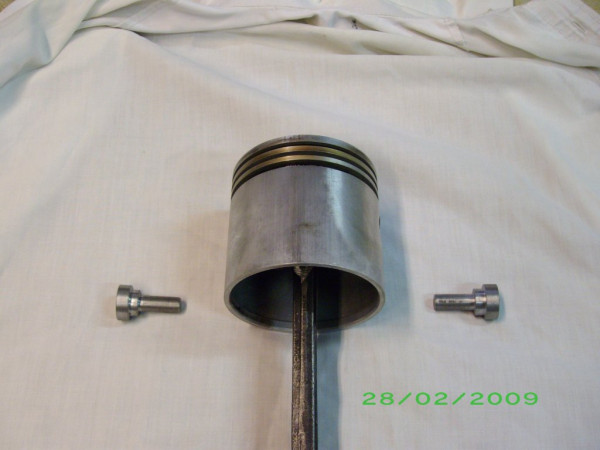

Just like mine Toon. They hold the pin tightly with no slop at all.
Allan from down under.
Allan from down under.
-
RajoRacer
- Posts: 5171
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: How much torque?
I also use a piston vice & a rod through the pin. Rod bolt nuts I also hand tighten by feel - I assume if one's intent on utilizing a torque wrench, I believe a grade 5 bolt is 6-8 lbs. per 1/8" - Model T rod bolts are 3/8" so close to 24 foot lbs.
