Magneto output

Post by Oldav8tor » Wed May 04, 2022 9:36 pm

I bought a cheapie analog voltmeter to check my Magneto output. With the engine running and the throttle advanced 5 notches it reads 15 VAC. At about half-throttle it reads 28 VAC. If I rev it a bit the needle jumps over 30 VAC. Does this sound normal to you?

The engine was rebuilt in 2018 and a new coil ring and recharged magnets installed. I've put 5000 miles on it since then. It starts and runs very well on magneto.
1917 Touring
1946 Aeronca Champ
1952 Willys M38a1 Jeep (sold 2023)
1953 Ford Jubilee Tractor
Top
User avatar

Steve Jelf
Posts: 7237
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
* REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
Location: Parkerfield, Kansas
Board Member Since: 2007
Contact:
Contact Steve Jelf

Re: Magneto output

Post by Steve Jelf » Wed May 04, 2022 9:55 pm

The Electrical System book says 9.8 V @ 7.9 amps @ 400 RPM (10 mph), 18.8 V
@8.8 amps @ 800 RPM (20 mph), and 26.2V @ 9 amps @ 1200 RPM (30 mph).
The inevitable often happens.
1915 Runabout
1923 Touring
Top
User avatar

AndreFordT
Posts: 513
Joined: Sun Jan 06, 2019 12:25 pm
First Name: Andre
Last Name: Valkenaers
* REQUIRED* Type and Year of Model Ts owned: 1926 ; 1922 ; 1915.
Location: Scherpenheuvel

Re: Magneto output

Post by AndreFordT » Thu May 05, 2022 6:03 am

Tim,
an easy way to test your magneto:
You need to charge your magneto output by a 12V 21W light bulb between the magneto post and the frame. Than connect you Ac Volt meter between the post and the frame and run the engine the same way you did. You should fined the same test results. At the end, at high running speed, the ligh should blown out. Than you should see 30AcV+. Your magneto is working right.

I tought I had photos about it but it is a little film and I don't know how to post it on the forum.

Good luck.
Andre
Belgium
Top
User avatar

Bill Robinson
Posts: 309
Joined: Sun Jan 06, 2019 2:24 pm
First Name: Bill
Last Name: Robinson
* REQUIRED* Type and Year of Model Ts owned: '21 Depot Hack, '25 Touring Car, '26 Roadster Pickup, '27 Tudor, & another '27 Tudor
Location: Salty Bottom, ALABAMA AL
Board Member Since: 1999
Contact:
Contact Bill Robinson

Re: Magneto output

Post by Bill Robinson » Thu May 05, 2022 8:26 am

The easiest test there is!
https://youtu.be/QnMUPNFbVWQ
Top
User avatar

Quickm007
Posts: 1201
Joined: Mon Jan 07, 2019 10:58 am
First Name: Mario
Last Name: Brossard
* REQUIRED* Type and Year of Model Ts owned: 1911 Touring and 1914 speedster
Location: Quebec City Canada
Board Member Since: 1999

Re: Magneto output

Post by Quickm007 » Thu May 05, 2022 10:15 am

Personnaly, I used the software Magneto Test Capability from Mike Kossor. Work really well and gave the right accurency. Bulb method work fine either but I'm scientific person who like to measure everything with fact. Both method will work but one gave you the exact output. It may not necessary https://modeltitimer.com/
Super Mario Bross ;)

1911 Touring
1914 Speedster
Top
User avatar

TWrenn
Posts: 3743
Joined: Sun Jan 06, 2019 10:53 am
First Name: Tim
Last Name: Wrenn
* REQUIRED* Type and Year of Model Ts owned: '13 Touring, '26 "Overlap" Fordor
Location: Ohio
Board Member Since: 2019

Re: Magneto output

Post by TWrenn » Fri May 06, 2022 9:56 am

Or, just for the fun or heck of it, put one of these little accessories on ur car.

https://www.modeltford.com/item/A-MAGM.aspx
Top

Les Schubert
Posts: 1357
Joined: Thu Jan 10, 2019 5:47 pm
First Name: Les
Last Name: Schubert
* REQUIRED* Type and Year of Model Ts owned: 27 roadster 13 touring
Location: Calgary

Re: Magneto output

Post by Les Schubert » Fri May 06, 2022 10:42 am

Your magneto output sounds GREAT to me. Exactly what I would hope for.
Top
User avatar

Topic author
Oldav8tor
Posts: 2246
Joined: Sun Jan 06, 2019 11:39 am
First Name: Tim
Last Name: Juhl
* REQUIRED* Type and Year of Model Ts owned: 1917 Touring
Location: Thumb of Michigan
Board Member Since: 2018

Re: Magneto output

Post by Oldav8tor » Fri May 06, 2022 9:41 pm

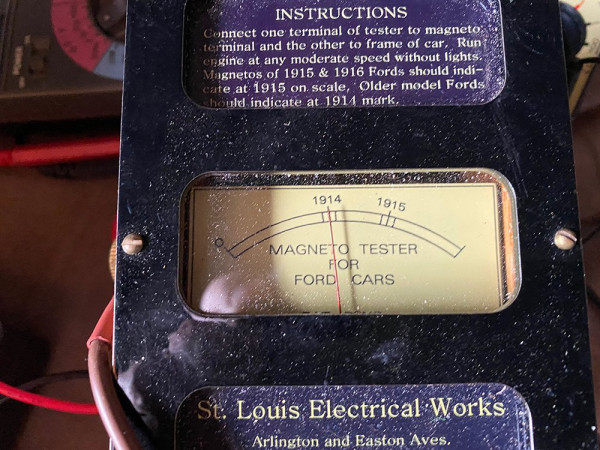

Our club has a Fun Projects replica of a St. Louis Magneto tester. It is designed to show if a mag is producing a proper output and works at any RPM above idle. When I tested mine, it indicated output correct for a 1914, even though I have a 1917. Not a big deal as I'm not trying to run headlights, just the ignition coils.
1917 Touring
1946 Aeronca Champ
1952 Willys M38a1 Jeep (sold 2023)
1953 Ford Jubilee Tractor
Top
User avatar

Steve Jelf
Posts: 7237
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
* REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
Location: Parkerfield, Kansas
Board Member Since: 2007
Contact:
Contact Steve Jelf

Re: Magneto output

Post by Steve Jelf » Fri May 06, 2022 11:57 pm

When I tested mine, it indicated output correct for a 1914...

That should be enough to start on MAG.
The inevitable often happens.
1915 Runabout
1923 Touring
Top
User avatar

Topic author
Oldav8tor
Posts: 2246
Joined: Sun Jan 06, 2019 11:39 am
First Name: Tim
Last Name: Juhl
* REQUIRED* Type and Year of Model Ts owned: 1917 Touring
Location: Thumb of Michigan
Board Member Since: 2018

Re: Magneto output

Post by Oldav8tor » Sat May 07, 2022 9:18 pm

My car starts very well on mag. I really can't complain.
