Generator testing out of car.

Discuss all things Model T related.
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
Post Reply Previous topicNext topic

Topic author
Been Here Before
Posts: 654
Joined: Mon Oct 07, 2019 2:00 pm
First Name: George John
Last Name: Drobnock
* REQUIRED* Type and Year of Model Ts owned: 1922 Coupe
Location: Central Pennsylvania

Generator testing out of car.

Post by Been Here Before » Sun Jun 05, 2022 2:13 pm

Any suggestions, shared knowledge, tips for testing a generator out of the car?
Top

speedytinc
Posts: 4725
Joined: Fri Feb 12, 2021 12:24 pm
First Name: john
Last Name: karvaly
* REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
Location: orange, ca
Board Member Since: 2020

Re: Generator testing out of car.

Post by speedytinc » Sun Jun 05, 2022 2:44 pm

Gen test stand. See T1 manual. The gen needs to be made to run hooked up to an ammeter. Checking on your motor works. Does it produce voltage @ the terminal? The manual will give other tests by having it powered to motor with & without the 3rd brush down. A good battery or high amp battery charger for power.
Top

John kuehn
Posts: 4433
Joined: Sun Jan 06, 2019 8:00 pm
First Name: John
Last Name: Kuehn
* REQUIRED* Type and Year of Model Ts owned: 19 Roadster, 21 Touring, 24 Coupe
Location: Texas

Re: Generator testing out of car.

Post by John kuehn » Sun Jun 05, 2022 2:57 pm

There is some good testing information in the MTFCA electrical manual. When working on a Model T the information is readily available about how to do it. The manuals are really helpful.
Top
User avatar

JohnH
Posts: 367
Joined: Sun Jan 06, 2019 6:57 pm
First Name: John
Last Name: Hunter
* REQUIRED* Type and Year of Model Ts owned: 1926 Geelong Tourer
Location: Blue Mountains, Australia
Board Member Since: 2002
Contact:
Contact JohnH

Re: Generator testing out of car.

Post by JohnH » Sun Jun 05, 2022 8:07 pm

Connecting a battery to it and running it as a motor is a simple go/no go test, which will give some idea about the condition of the windings, brushes, and bearings. To test it properly, you really need to apply a rotational force at an appropriate speed, and feed it into battery or suitable load resistor in series with an ammeter. In other words, duplicate the in car set up.
Top

Dan Hatch
Posts: 5009
Joined: Tue Jan 08, 2019 7:31 pm
First Name: Dan
Last Name: Hatch
Location: Alabama

Re: Generator testing out of car.

Post by Dan Hatch » Sun Jun 05, 2022 9:35 pm

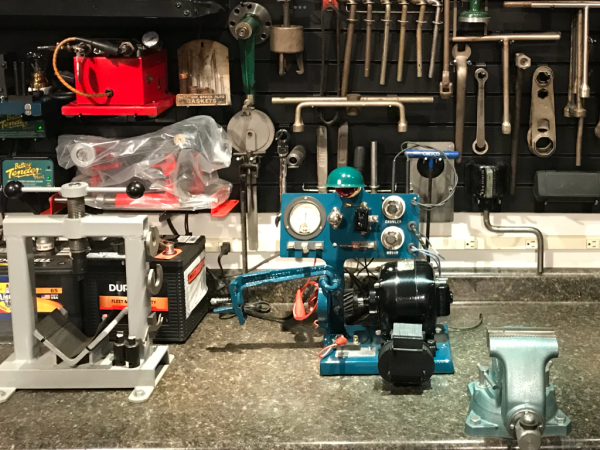

Here is what I use.
Top

John kuehn
Posts: 4433
Joined: Sun Jan 06, 2019 8:00 pm
First Name: John
Last Name: Kuehn
* REQUIRED* Type and Year of Model Ts owned: 19 Roadster, 21 Touring, 24 Coupe
Location: Texas

Re: Generator testing out of car.

Post by John kuehn » Sun Jun 05, 2022 10:05 pm

Is your generator not charging or it’s not working correctly or?
Top
User avatar

ABoer
Posts: 229
Joined: Mon Jan 07, 2019 2:41 pm
First Name: Anthonie
Last Name: Boer
* REQUIRED* Type and Year of Model Ts owned: 1912 touring 1923 roadster 1925 pickup
Location: Klaaswaal NL

Re: Generator testing out of car.

Post by ABoer » Mon Jun 06, 2022 5:23 am

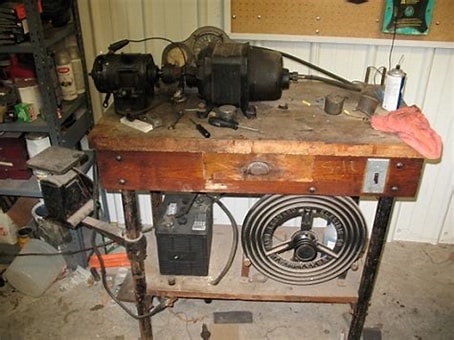

Here is what I use .
Toon
Top

Brent Mize
Posts: 255
Joined: Sun Jan 06, 2019 12:36 pm
First Name: Brent
Last Name: Mize
* REQUIRED* Type and Year of Model Ts owned: 1927 Sport Touring & 1927 Sport Runabout
Location: Reynoldsburg, Oh

Re: Generator testing out of car.

Post by Brent Mize » Mon Jun 06, 2022 6:47 am

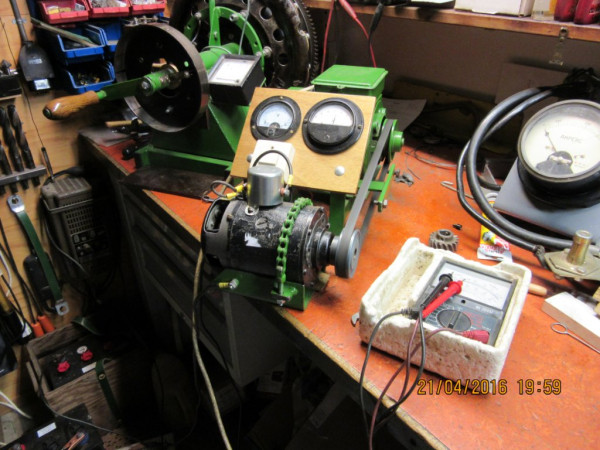

I use an Allen spin tester.
It does a great job and it’s compact.
Attachments
Top

Plankhill
Posts: 134
Joined: Sun Jan 06, 2019 8:04 pm
First Name: Brendan
Last Name: Doughty
* REQUIRED* Type and Year of Model Ts owned: 16 , 21, 24, Touring , 24 Roadster, 26 Speedster
Location: Central Wisconsin

Re: Generator testing out of car.

Post by Plankhill » Mon Jun 06, 2022 8:33 am

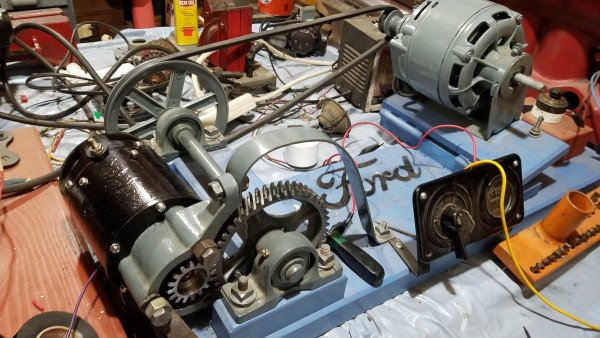

I made this one out of a generator bracket, an old timing gear, jack shaft, and old appliance motor.
Gen. Test stand.jpg
Top

Scott_Conger
Posts: 6523
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
* REQUIRED* Type and Year of Model Ts owned: 1919
Location: not near anywhere, WY
Board Member Since: 2005

Re: Generator testing out of car.

Post by Scott_Conger » Mon Jun 06, 2022 1:46 pm

Brendan, in an age where we give prizes for just showing up, I think you deserve a STATUE for creativity. I love this on several different levels! :D
Scott Conger

Tyranny under the guise of law is still Tyranny

NH Full Flow Float Valves™
Obsolete carburetor parts manufactured
Top
