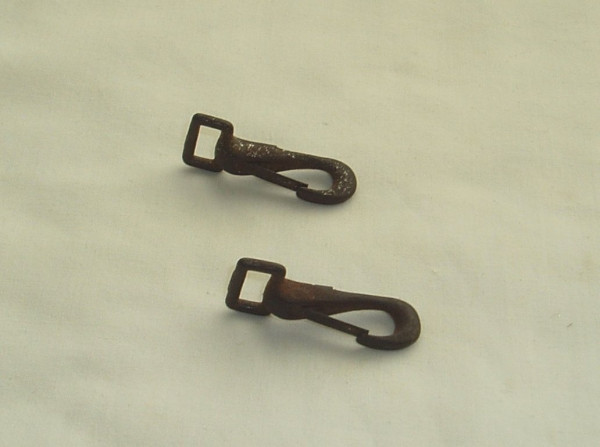

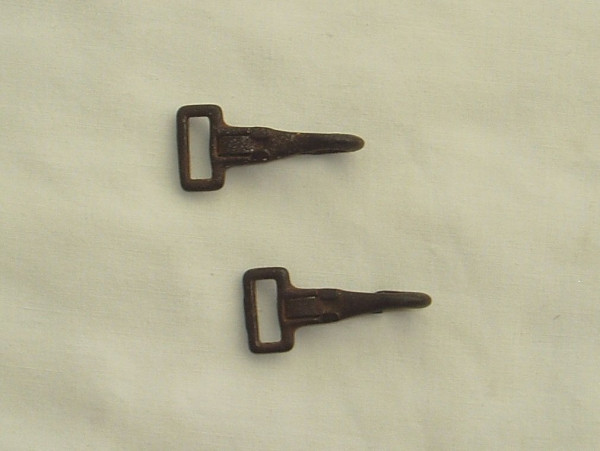

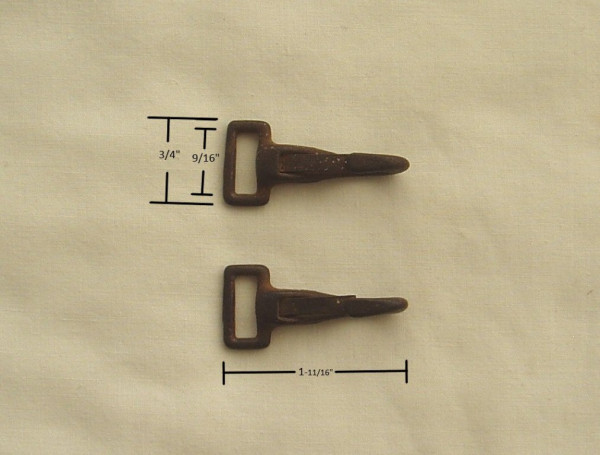

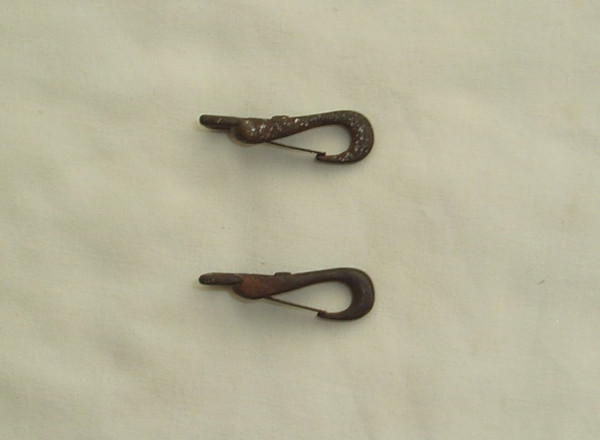

I found these 2 clips (see 4 attached photos) in a coffee can of parts that came with my 1913 runabout.
They look like the clips I've seen that attach the early 1909-1911 top straps down to the radiator bolts hooks, but they are only wide enough to accept about a 9/16"-5/8" wide strap. Seems like the straps would need to be wider. Can anyone confirm that is what these are?...or were these used elsewhere on a model T?
Need help identifying possible 1909-1911 top strap to radiator clips.
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Tony Delbianco
Topic author - Posts: 23
- Joined: Mon May 16, 2022 2:36 am
- First Name: Tony
- Last Name: Delbianco
- * REQUIRED* Type and Year of Model Ts owned: 1913 Runabout
- Location: Seattle, WA
- Board Member Since: 2022
-
RajoRacer
- Posts: 5171
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: Need help identifying possible 1909-1911 top strap to radiator clips.
Could be later top strap to windshield hinge hooks.
-
Russ_Furstnow
- Posts: 370
- Joined: Tue Jan 08, 2019 9:01 am
- First Name: Russ
- Last Name: Furstnow
- * REQUIRED* Type and Year of Model Ts owned: 1911 Torpedo,1913 Touring, 1914 Runabout, 1915 Coupelet, 1916 Coupelet, 1917 Coupelet
- Location: Flagstaff, AZ
- MTFCA Life Member: YES
Re: Need help identifying possible 1909-1911 top strap to radiator clips.
These are common snap hooks. The width of the top strap on a 1909 Ford is 7/8". A 1913 Ford used either a 3/4" front top strap or a 7/8" strap, but the hook used for a 1913 Ford was referred to as a "buckle hook." I don't know of any top strap that would be 1/2" wide, which is the width of the strap that would use this type of snap hook. I hope this helps. Russ Furstnow
-
Tony Delbianco
Topic author - Posts: 23
- Joined: Mon May 16, 2022 2:36 am
- First Name: Tony
- Last Name: Delbianco
- * REQUIRED* Type and Year of Model Ts owned: 1913 Runabout
- Location: Seattle, WA
- Board Member Since: 2022
Re: Need help identifying possible 1909-1911 top strap to radiator clips.
Thanks guys for the responses.
So these "Snap Hooks" are too small to have been from a Model T top strap.
Russ...thanks for sharing your knowledge...this is just what I needed to know.
These will go in the non-Model T parts pile, and I can stop wondering about them.
So these "Snap Hooks" are too small to have been from a Model T top strap.
Russ...thanks for sharing your knowledge...this is just what I needed to know.
These will go in the non-Model T parts pile, and I can stop wondering about them.
