A friend and I decided to make a pan jig out of our collective available resources.
I had a piece if 6061-T6 one inch thick aluminum plate (aircraft grade),
We bought some steel tubing and channel to fill in what we didn't have on hand.
A friend with access to a water jet cut the plate out for us.
Another friend with a CNC mill drilled the hole pattern for us.
The co-conspirator is a machinist and made the machine parts.

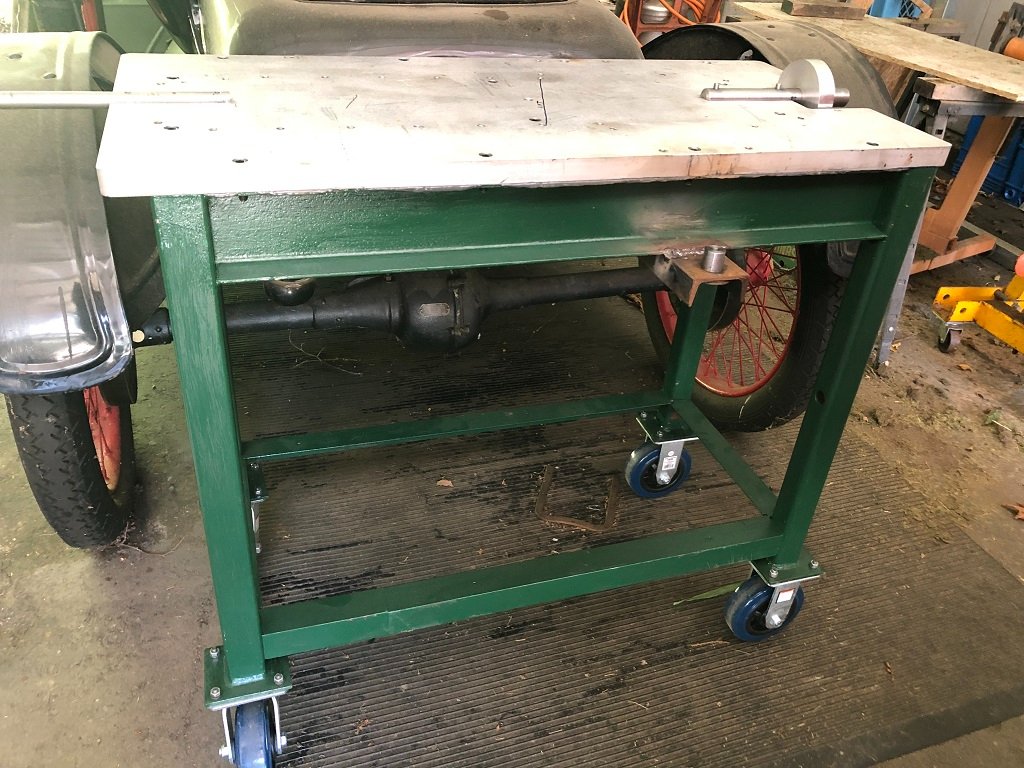

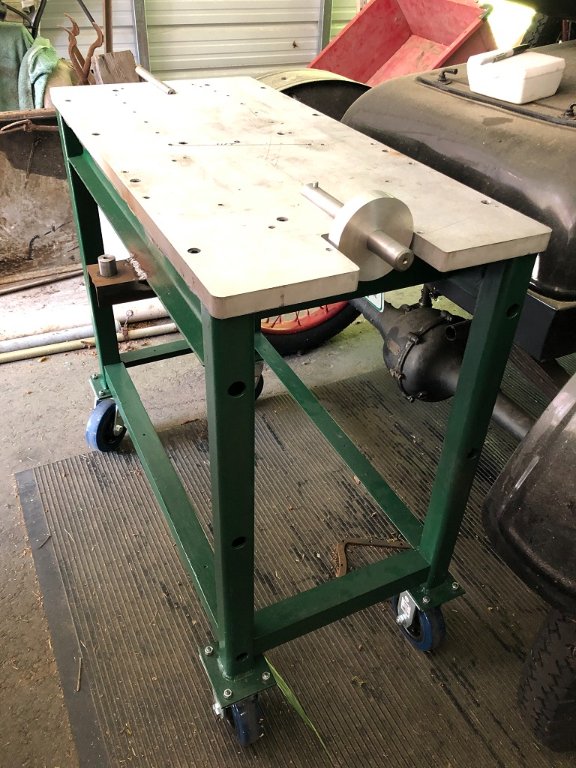

Here is the final assembly.
The top plate is set in a leveling epoxy and held down to a full frame and several cross-members.
In a perfect it should have been made it out of steel plate but, I don't live there.
This will be a useful tool.
Respectfully Submitted,
Be_Zero_Be
I drive a Model T ... Microseconds don't matter
For every Absolute Model T Fact there are at least three exceptions.
-
Steve Jelf
- Posts: 7237
- Joined: Fri Jan 04, 2019 9:37 pm
- First Name: Steve
- Last Name: Jelf
- * REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
- Location: Parkerfield, Kansas
- Board Member Since: 2007
-
Contact:
Post
by Steve Jelf » Wed Jul 20, 2022 1:09 am
What did you use to locate the holes? Ford drawing?
The inevitable often happens.
1915 Runabout
1923 Touring
-
Topic author
BE_ZERO_BE
- Posts: 628
- Joined: Sun Jan 06, 2019 12:27 pm
- First Name: BOB
- Last Name: CASCISA
- * REQUIRED* Type and Year of Model Ts owned: 1916 TOURING
- Location: POULSBO, WA
Post
by BE_ZERO_BE » Wed Jul 20, 2022 10:55 am
I used the Ford drawing that I previously posted.
https://mtfca.com/phpBB3/viewtopic.php?t=23464
Respectfully Submitted,
Be_Zero_Be
I drive a Model T ... Microseconds don't matter
For every Absolute Model T Fact there are at least three exceptions.
-
RajoRacer
- Posts: 5172
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Post
by RajoRacer » Wed Jul 20, 2022 12:02 pm
Nice jig there Bob ! Probably a little lighter than my T-1 steel jig. The late Herman Kohnke assisted me many years ago with all the critical dimensions off his original KRW jig. Every crankcase should be checked prior to installation !
-
Attachments
-

-
Henry K. Lee
- Posts: 5474
- Joined: Sun Jan 06, 2019 11:09 am
- First Name: Henry
- Last Name: Lee
- * REQUIRED* Type and Year of Model Ts owned: Many
- Location: South Pittsburg, TN
- MTFCA Life Member: YES
Post
by Henry K. Lee » Wed Jul 20, 2022 3:04 pm
Bob,
Your design is better than steel or cast iron.., Why? Because the aluminum high density alloy with absorb shock when being struck instead reverberating energy back up causing stretch to occur to the oil pan. Nice with the reenforcement and epoxy. Rolls Royce has been using a similar "Buck" design for about 100 years!
Just Sayin'
Hank
-
RajoRacer
- Posts: 5172
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Post
by RajoRacer » Wed Jul 20, 2022 4:26 pm
I prefer hydraulic pressure for assisting rather than a BFH ! I use a chain & bottle neck jack for most help. I had the "local" T guy (RIP) straighten a crankcase years ago - he used a BFH and broke the snout off the "not my c.c." - we didn't speak for quite some time - that's why I built mine.
