Is this the inner berring?
So I took the wheel off the front to continue to repack the front bearings. I'm cleaning out the old grease from the inside of the hub. I ordered two grease seals and was about to take out the old felt seal when I noticed that I can't move the bearing around with my finger. Should I get a wooden dowel or end of a hammer and place it on the edge of the bearing from the other side and push it out? It almost looks like there is no bearing at all. So do I give it a good wack and and have faith?
-
Scott_Conger
- Posts: 6523
- Joined: Sun Jan 06, 2019 11:18 am
- First Name: Scott
- Last Name: Conger
- * REQUIRED* Type and Year of Model Ts owned: 1919
- Location: not near anywhere, WY
- Board Member Since: 2005
Re: Is this the inner berring?
the metal housing holding the felt seal is holding your bearing in place (as it should).
Yes, tapping briskly from the inside will drive the bearing into the seal/housing and the whole mess will be pushed out the back...you will be surprised at how large the bearing really is.
Yes, tapping briskly from the inside will drive the bearing into the seal/housing and the whole mess will be pushed out the back...you will be surprised at how large the bearing really is.
Scott Conger
Tyranny under the guise of law is still Tyranny
NH Full Flow Float Valves™
Obsolete carburetor parts manufactured
Tyranny under the guise of law is still Tyranny
NH Full Flow Float Valves™
Obsolete carburetor parts manufactured
-
Mopar_man
Topic author - Posts: 1152
- Joined: Sat Jan 12, 2019 9:24 pm
- First Name: Robert
- Last Name: Govoni
- * REQUIRED* Type and Year of Model Ts owned: 1926 Touring
- Location: Fredericksburg, VA
- Board Member Since: 2016
Re: Is this the inner berring?
As always thanks for the info. I'll give it a wack!
-
FundyTides
- Posts: 217
- Joined: Wed Jan 16, 2019 6:29 pm
- First Name: David
- Last Name: Wilson
- * REQUIRED* Type and Year of Model Ts owned: 1927 Canadian Touring
- Location: Saint John, NB, Canada
- Board Member Since: 1999
Re: Is this the inner berring?
There should be a couple of notches in the hub that will allow you to get something against the edge of the outer cup. You might have to alternate hitting the two sides to get it out
-
DanTreace
- Posts: 3813
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Is this the inner berring?

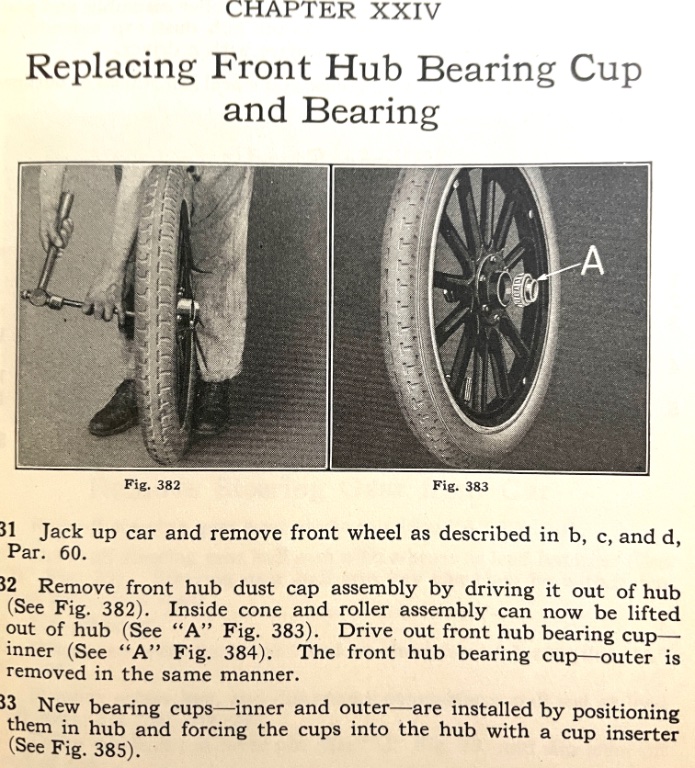

Image in Ford Service, use a punch or better, a wood dowel stick.
- Attachments
-
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
Mopar_man
Topic author - Posts: 1152
- Joined: Sat Jan 12, 2019 9:24 pm
- First Name: Robert
- Last Name: Govoni
- * REQUIRED* Type and Year of Model Ts owned: 1926 Touring
- Location: Fredericksburg, VA
- Board Member Since: 2016
Re: Is this the inner berring?
Well I got it out. A few taps and out it came. I should have looked in the book.
Thanks for putting up with me. I cleaned out all the old grease and will put it back once the solvent drys out.
Thanks for putting up with me. I cleaned out all the old grease and will put it back once the solvent drys out.-
John kuehn
- Posts: 4433
- Joined: Sun Jan 06, 2019 8:00 pm
- First Name: John
- Last Name: Kuehn
- * REQUIRED* Type and Year of Model Ts owned: 19 Roadster, 21 Touring, 24 Coupe
- Location: Texas
Re: Is this the inner berring?
The Ford service manual is a great resource for information for most any T repair. It has been for me.
