Hey All,
I am installing a new firewall. I have it all ready except for the finish. It is made of birch plywood and it is very blond, almost white. I have seen others in pictures and they appear to be stained a darker color.. Any advice about a stain that was used. We have a 1916 touring. I also have a new patent plate to install. Where should it be mounted?
Thanks,
Campbell Tellman
Beaufort,NC
My new firewall
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Campbell Tellman
Topic author - Posts: 52
- Joined: Mon Oct 11, 2021 9:28 am
- First Name: Campbell
- Last Name: Tellman
- * REQUIRED* Type and Year of Model Ts owned: 1916 Ford Touring
- Location: Beaufort, NC
-
MWalker
- Posts: 475
- Joined: Fri Jan 04, 2019 9:49 am
- First Name: Mike
- Last Name: Walker
- * REQUIRED* Type and Year of Model Ts owned: 1916 Roadster Pickup
- Location: NW Arkansas
- MTFCA Life Member: YES
Re: My new firewall
I believe the firewall should be painted black on a '16. The stained ones were earlier.
-
Erik Johnson
- Posts: 1055
- Joined: Mon Feb 04, 2019 10:25 pm
- First Name: Erik
- Last Name: Johnson
- Location: Minneapolis, MN
Re: My new firewall
Mike Walker is correct, the firewall should be painted black on 1915 and forward.
Be aware that the firewalls sold by the vendors are generic and miss a lot of important details. That doesn't mean they aren't functional - they just aren't exactly like original factory issue.
The patent plate should be partially obscured by the cowl - original examples as well as the factory drawings showing the location of the plate back this up. This has been discussed in the past:
http://www.mtfca.com/discus/messages/118802/146752.html
Be aware that the firewalls sold by the vendors are generic and miss a lot of important details. That doesn't mean they aren't functional - they just aren't exactly like original factory issue.
The patent plate should be partially obscured by the cowl - original examples as well as the factory drawings showing the location of the plate back this up. This has been discussed in the past:
http://www.mtfca.com/discus/messages/118802/146752.html
-
Original Smith
- Posts: 3699
- Joined: Tue Jan 08, 2019 10:43 am
- First Name: Larry
- Last Name: Smith
- * REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
- Location: Lomita, California
- MTFCA Life Member: YES
Re: My new firewall
Mount it just to the left of the steering column, and slightly under the cowl. There were no serial numbers in 1916.
-
Will_Vanderburg
- Posts: 925
- Joined: Sun Jan 06, 2019 3:59 pm
- First Name: William
- Last Name: Vanderburg
- * REQUIRED* Type and Year of Model Ts owned: 2
- Location: Jackson, NJ
Re: My new firewall
So what say the experts about reproduction firewalls made to factory drawings?
William L Vanderburg
1925 Touring
1922 Center Door Sedan
1925 Touring
1922 Center Door Sedan
-
david_dewey
- Posts: 522
- Joined: Sun Jan 06, 2019 12:42 pm
- First Name: David
- Last Name: Dewey
- * REQUIRED* Type and Year of Model Ts owned: 1916 touring, 1925 runaboaut, 1926 Tudor
- Location: Oroville, CA
- Board Member Since: 1999
Re: My new firewall
Yep, no stain, just black paint--but the firewall is an oddball thickness to fit into the metal cover over it (hood former), so check that the firewall will fit inside the former (as opposed to the latter. .
) Check your hood hinge hole in the former, they are usually egged out--why Henry used such a thin piece of metal to hold the hood rod is beyond me, should have been reinforced hole.
) Check your hood hinge hole in the former, they are usually egged out--why Henry used such a thin piece of metal to hold the hood rod is beyond me, should have been reinforced hole.T'ake care,
David Dewey
David Dewey
-
KWTownsend
- Posts: 1381
- Joined: Mon Jan 07, 2019 6:51 pm
- First Name: Keith
- Last Name: Townsend
- * REQUIRED* Type and Year of Model Ts owned: late 1911 touring, 1915 runabout, 1919 touring, brass speedster
- Location: Gresham, Orygun
- MTFCA Life Member: YES
- Board Member Since: 1999
Re: My new firewall

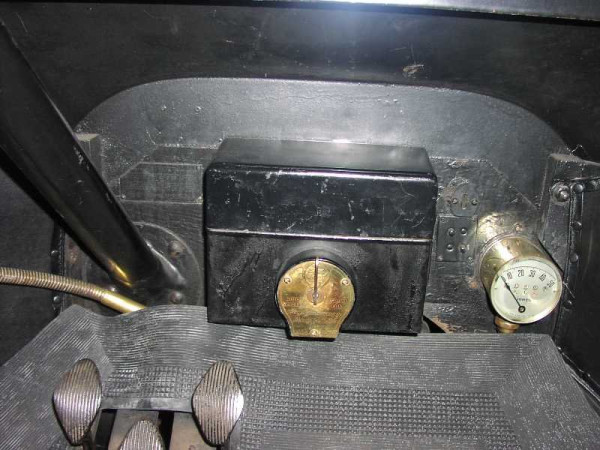

Here is the placement of the 1915 patent plate. The top left corner gets covered by the cowl.
: ^ )
-
jiminbartow
- Posts: 2433
- Joined: Sun Jan 06, 2019 10:55 pm
- First Name: James
- Last Name: Patrick
- * REQUIRED* Type and Year of Model Ts owned: 1926 Coupe
- Location: Bartow, FL
- Board Member Since: 2001
Re: My new firewall

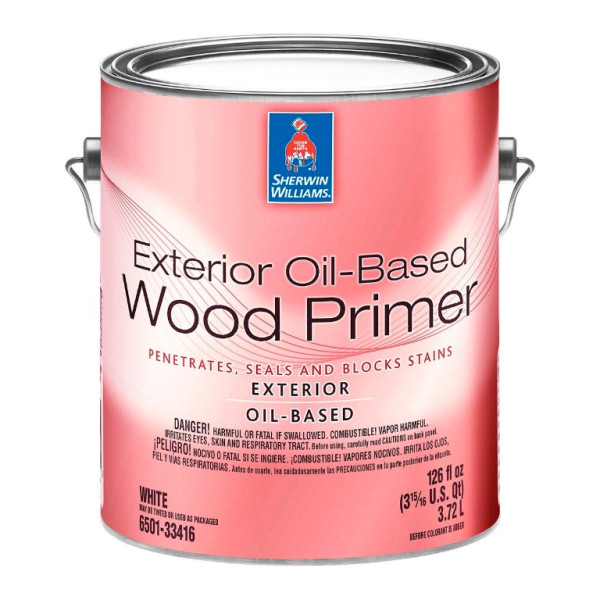

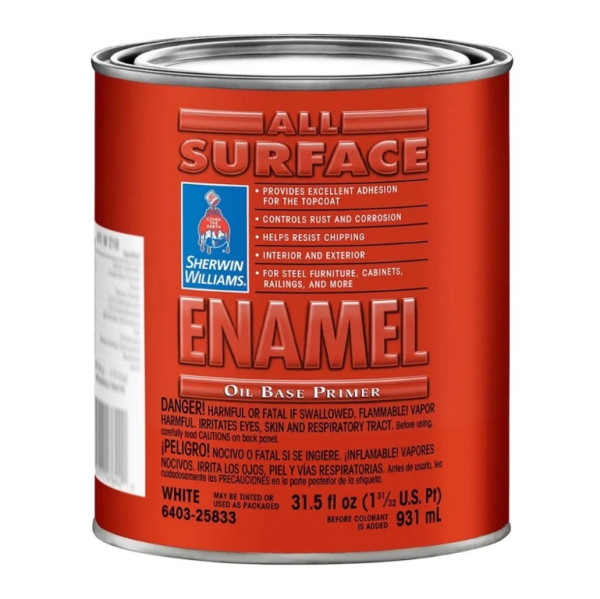

Sherwin Williams has a great old school gloss Black, brush applied enamel that levels out perfectly. Over new wood, it should be primed with their oil based alkyd primer. The primer is white, but Sherwin Williams can tint it black for you. I painted my spokes with it in 2010 and it still looks like it was just applied. Jim Patrick
-
Altair
- Posts: 365
- Joined: Thu Jan 17, 2019 11:52 am
- First Name: David
- Last Name: Menzies
- * REQUIRED* Type and Year of Model Ts owned: 1926 Touring and 1915 Touring both Canadian models
- Location: British Columbia
- Board Member Since: 2012
Re: My new firewall
There are about 20 revisions to these firewalls/dash therefore you would have to know what revision applies to what model. They are made somewhat generic and additional holes may need to be drilled where needed. The frame space is 86/125 = .688, a standard grade of plywood is
5/8" = .625 therefore 5/8" plywood will slide in with .063 clearance and is held in place with screws. If using 3/4" plywood a slight rabbet around the perimeter to fit.
Original material was different again with a core and veneer skin on both sides to total .688, it was called three ply. Veneer skins were thicker in the day about 1/16" to day they are only .020.
Some models but not all had a seal rabbited across the top against the cowl to protect the dash from water.
t
5/8" = .625 therefore 5/8" plywood will slide in with .063 clearance and is held in place with screws. If using 3/4" plywood a slight rabbet around the perimeter to fit.
Original material was different again with a core and veneer skin on both sides to total .688, it was called three ply. Veneer skins were thicker in the day about 1/16" to day they are only .020.
Some models but not all had a seal rabbited across the top against the cowl to protect the dash from water.
t
