Wood, Leather, and Cloth Transmission Bands

Post by MikeSommers » Thu Sep 15, 2022 11:27 am

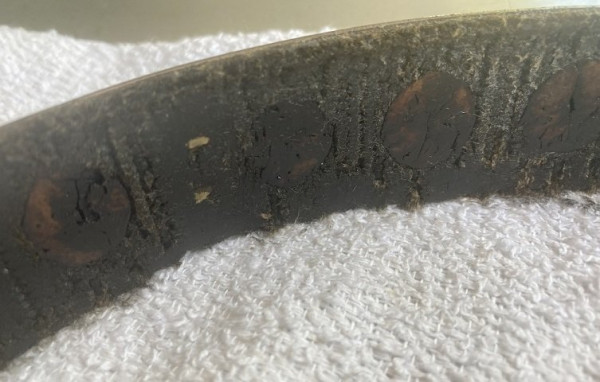

Yesterday I jumped into the project of replacing my transmission band with Kevlar bands. I assumed my bands were cloth, because it seems that cloth was the most popular band material. When I removed the rivets and looked at the old bands I was surprised to see a thin cloth band, with a leather band attached to the cloth band. Additionally the leather band had around 16 holes punched in it, with wooden plugs placed in each hole.
Was this a popular type band 'back in the day'? I would appreciate any information someone might have.
Regards, Mike
Top

Dan Haynes
Posts: 472
Joined: Mon Jan 07, 2019 10:37 am
First Name: Dan
Last Name: Haynes
* REQUIRED* Type and Year of Model Ts owned: several
Location: Lodi, CA

Re: Wood, Leather, and Cloth Transmission Bands

Post by Dan Haynes » Thu Sep 15, 2022 11:32 am

The "wooden plugs" are likely corks.
"The further a society drifts from truth, the more it will hate those who speak it." -George Orwell
Top

Rich P. Bingham
Posts: 1611
Joined: Sun Feb 13, 2022 11:24 am
First Name: Rich
Last Name: Bingham
Location: Blackfoot, Idaho
Board Member Since: 2015

Re: Wood, Leather, and Cloth Transmission Bands

Post by Rich P. Bingham » Thu Sep 15, 2022 11:46 am

Yup. "In the day" several manufacturers supplied band lining with cork inserts. They were quite popular and got good reviews.
Get a horse !
Top
User avatar

DanTreace
Posts: 3812
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
* REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
Location: North Central FL
Board Member Since: 2000
Contact:
Contact DanTreace

Re: Wood, Leather, and Cloth Transmission Bands

Post by DanTreace » Thu Sep 15, 2022 9:47 pm

Here is one type of cork reinforced linings, there were a couple of mfg. in the day.
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Top

TXGOAT2
Posts: 7391
Joined: Sun Feb 14, 2021 10:08 pm
First Name: Pat
Last Name: McNallen
* REQUIRED* Type and Year of Model Ts owned: 1926-7 roadster
Location: Graham, Texas
Board Member Since: 2021

Re: Wood, Leather, and Cloth Transmission Bands

Post by TXGOAT2 » Thu Sep 15, 2022 9:59 pm

Hudson used cork clutch plate lining in a wet clutch for years.
Top
User avatar

Topic author
MikeSommers
Posts: 48
Joined: Sat Jan 19, 2019 4:34 am
First Name: Mike
Last Name: Sommers
* REQUIRED* Type and Year of Model Ts owned: 1913 Touring
Location: Vernon Hills, Illinois

Re: Wood, Leather, and Cloth Transmission Bands

Post by MikeSommers » Fri Sep 16, 2022 8:23 am

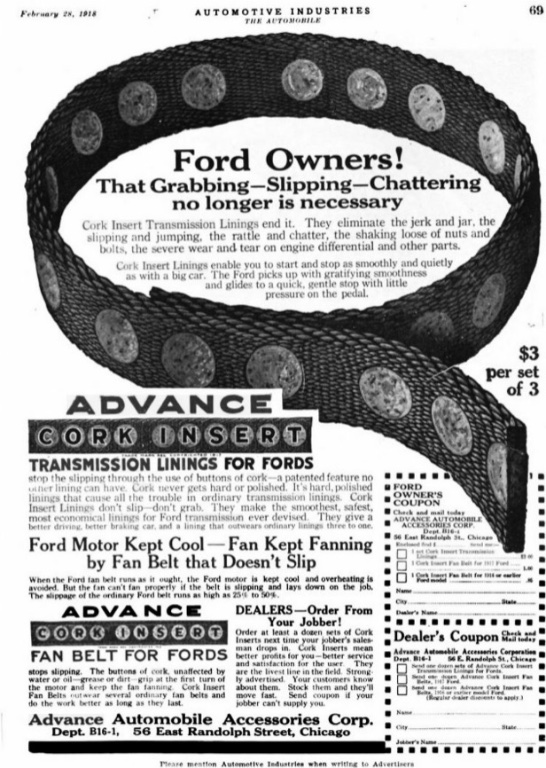

Thanks for the information! If I assume that my bands were purchased and installed around 1918, as the advertisement above suggests, I guess that they served me well... and it is about time that I changed them.
Regards,
Mike
