Leak from head gasket.

Post by Fozz71 » Sat Apr 20, 2019 9:12 pm

Fired up my '15 for the first time and she ran like a top for about 2 minutes. I just wanted to do a short run and determine what needs to be done next. After I shut her down I found a little leak of coolant down the side coming from the head gasket. Just to be sure, sounds like pulling the head is next and see what gives from there...

Has anyone has this drippy issue? I had ground the area to the right of the pipe down to bare metal to inspect it before I painted it, yet all I found was iron, so it makes me wonder about the motor's history.

Thanks,
Jim
Attachments

User avatar

RajoRacer
Posts: 831
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
Location: Longbranch, WA
MTFCA Number: 14972
MTFCI Number: 15411
Board Member Since: 2001

Re: Leak from head gasket.

Post by RajoRacer » Sat Apr 20, 2019 9:24 pm

You need to go through at least 2 or 3 heating & cooling cycles and re-torque to 45 lbs. +/- after it cools down each time. You will get opinions regarding torqueing hot but I've done it this way for 40 + years and not ever had a "weeper".

User avatar

RajoRacer
Posts: 831
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
Location: Longbranch, WA
MTFCA Number: 14972
MTFCI Number: 15411
Board Member Since: 2001

Re: Leak from head gasket.

Post by RajoRacer » Sat Apr 20, 2019 9:26 pm

And - all the c.c. bolts should be "nuts-up" except for the bolt under the commutator - it goes "nut down" to prevent shorting out the timer.


Topic author
Fozz71
Posts: 120
Joined: Wed Jan 16, 2019 11:38 am
First Name: Jim
Last Name: Chochole
Location: Oswego, Illinois
MTFCA Number: 50481
Board Member Since: 2003

Re: Leak from head gasket.

Post by Fozz71 » Sat Apr 20, 2019 9:30 pm

Gotcha, will do- I have to fix an exhaust leak and my timer is getting rubbed by the fan belt, once I fix those things then I'll fire it back up. I did check the head bolts today and they were 45lbs of torque after I had it running.

User avatar

Ruxstel24
Posts: 1523
Joined: Sun Jan 06, 2019 11:25 am
First Name: Dave
Last Name: Hanlon
Location: NE Ohio
MTFCA Number: 50191
Board Member Since: 2018

Re: Leak from head gasket.

Post by Ruxstel24 » Sat Apr 20, 2019 9:39 pm

If all else fails, I would try some stop leak.
Others may disagree.
Attachments


Topic author
Fozz71
Posts: 120
Joined: Wed Jan 16, 2019 11:38 am
First Name: Jim
Last Name: Chochole
Location: Oswego, Illinois
MTFCA Number: 50481
Board Member Since: 2003

Re: Leak from head gasket.

Post by Fozz71 » Sat Apr 20, 2019 10:04 pm

Just went out to check and I think I may have bigger problems- I'm leaking from the water jacket in two places.
Attachments


kerry
Posts: 206
Joined: Mon Jan 07, 2019 2:42 pm
First Name: Frank
Last Name: van Ekeren
Location: Rosedale Vic Australia

Re: Leak from head gasket.

Post by kerry » Sat Apr 20, 2019 10:21 pm

Cracked block, looks to have been repaired before, a repeat of your poo of choice might help.

User avatar

RajoRacer
Posts: 831
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
Location: Longbranch, WA
MTFCA Number: 14972
MTFCI Number: 15411
Board Member Since: 2001

Re: Leak from head gasket.

Post by RajoRacer » Sat Apr 20, 2019 10:25 pm

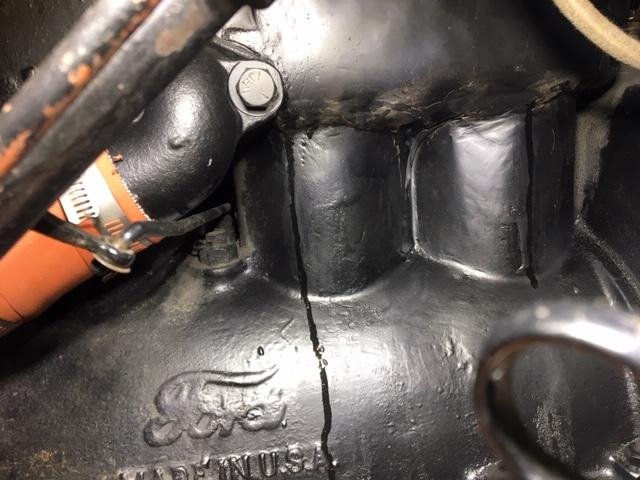

From the second photo - yep, you're S.O.L. ! One can see how "the crack remedy" was smoothed out - more than likely J.B. Weld.

User avatar

Ruxstel24
Posts: 1523
Joined: Sun Jan 06, 2019 11:25 am
First Name: Dave
Last Name: Hanlon
Location: NE Ohio
MTFCA Number: 50191
Board Member Since: 2018

Re: Leak from head gasket.

Post by Ruxstel24 » Sat Apr 20, 2019 10:52 pm

Much clearer picture.
Clean/sand it down and see what was used and either remove and start over or reapply.
The good news is it only has to hold water, no pressure. And you don't have to pull the head.

Or pull engine and have it welded or replace it.

User avatar

jsaylor
Posts: 50
Joined: Sun Jan 06, 2019 5:25 pm
First Name: John
Last Name: Saylor
Location: Citrus Heights, Ca
MTFCA Number: 1695
MTFCI Number: 23870
Board Member Since: 1999

Re: Leak from head gasket.

Post by jsaylor » Sat Apr 20, 2019 10:53 pm

Typical spot for a crack. I had one do that. V ed it out with a die grinder and had it professionally welded with Nickel rod. Hasn't leaked again in some 45 years.


Susanne
Posts: 140
Joined: Sat Apr 13, 2019 6:06 pm
First Name: Susanne
Last Name: Rohner
Location: Northeastern California
MTFCA Number: 49765
MTFCA Life Member: YES
Board Member Since: 1999
Contact:

Re: Leak from head gasket.

Post by Susanne » Sun Apr 21, 2019 1:18 pm

I weep for your weeps... :(

The best way to fix them is to pull the motor down and have them done right - the nickel welding works. I know doing this kills a couple weekends of touring (plus time in the shop), but otherwise the problem will resurface again... unfortunately usually at the worst time.

Someone told me there were issues in the '15 castings... My mid-15 motor was inexplicably replaced in late '15... in a way it's cool as it was stamped within a day of car # 1,000,000... the rumor I heard (who knows if it's true) was Ford was swapping the bad motors out if it were kept hush hush (there you are, Model T Conspiracy Theory 101!! --lol--) ... it's always intriuged me as my car is by all appearances a late model 15 (August) but the motor/transmission are all December '15's (Motor, head, hogshead cover, pedals, etc.) with casting dates on the block and head that say as much... I was told the motor was the "original" to the car (by the 2nd owner), and have no reason to have doubted him, tho I was quite young (and he quite old)...


Topic author
Fozz71
Posts: 120
Joined: Wed Jan 16, 2019 11:38 am
First Name: Jim
Last Name: Chochole
Location: Oswego, Illinois
MTFCA Number: 50481
Board Member Since: 2003

Re: Leak from head gasket.

Post by Fozz71 » Sun Apr 21, 2019 1:46 pm

Here's the news as of today, the evidence shows that the motor has been recently rebuilt with new .060 pistons and valves, and is very clean, and the two weepy spots looks to have been repaired at some point and tiny holes have re-emerged. The head was clean and crack free and so is the deck.

Here are pics of what I have found:
Attachments


SurfCityGene
Posts: 173
Joined: Wed Jan 23, 2019 3:00 pm
First Name: Gene
Last Name: Carrothers
Location: Huntington Beach, Ca
MTFCA Number: 22905
MTFCI Number: 23068
Board Member Since: 1999

Re: Leak from head gasket.

Post by SurfCityGene » Sun Apr 21, 2019 2:21 pm

No Problem fozz, Lots of blocks have these freeze cracks. It can easily be fixed and will last for many many years of driving with a simple easy fix.

Here's the way I have fixed my '12 block with the same leak. After it is cleaned off like you have done, I shaped some thin brass shim stock to fit over the cracks. I applied to the crack and glued the brass metal over the crack to give additional strength and also smoothed over the patch with some more ULTRA BLACK. Paint over the patch and forget it is there! The problem with a JB weld patch is that the block will contract and expand with the hot and cold cycles and the Ultra Black remains flexible and sticks Very good!
1912 Torpedo Roadster


Topic author
Fozz71
Posts: 120
Joined: Wed Jan 16, 2019 11:38 am
First Name: Jim
Last Name: Chochole
Location: Oswego, Illinois
MTFCA Number: 50481
Board Member Since: 2003

Re: Leak from head gasket.

Post by Fozz71 » Sun Apr 21, 2019 2:32 pm

Gene,
What is the thickness of the brass shim stock that you have used in the past? Did you smear the RTV all over the shim stock first before sticking it to the crack?

Thanks,
Jim


FATMAN
Posts: 432
Joined: Sat Jan 19, 2019 9:28 am
First Name: ROBERT
Last Name: BERGSTADT
Location: LOVES PARK IL
MTFCA Number: 1575

Re: Leak from head gasket.

Post by FATMAN » Sun Apr 21, 2019 3:12 pm

Jim
I still have that complete 16 engine for sale, there is a customer that was coming up last week some time to look at it , he did not make it he is not just looking at spare engines but a lot parts as well, he also knows it is for sale 1st come first serve, Bob


Topic author
Fozz71
Posts: 120
Joined: Wed Jan 16, 2019 11:38 am
First Name: Jim
Last Name: Chochole
Location: Oswego, Illinois
MTFCA Number: 50481
Board Member Since: 2003

Re: Leak from head gasket.

Post by Fozz71 » Sun Apr 21, 2019 3:28 pm

Thanks Bob, I was thinking of that too. I just don’t know if I have another spare chunk of change to drop on a motor.

Thank you,
Jim

User avatar

RajoRacer
Posts: 831
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
Location: Longbranch, WA
MTFCA Number: 14972
MTFCI Number: 15411
Board Member Since: 2001

Re: Leak from head gasket.

Post by RajoRacer » Sun Apr 21, 2019 4:08 pm

Best product for that crack is Belzona Epoxy (expensive !) - follow directions and be done with it - it will outlast your grandkids !

User avatar

varmint
Posts: 93
Joined: Mon Jan 07, 2019 2:02 pm
First Name: Vernon
Last Name: Worley
Location: New Orleans
Contact:

Re: Leak from head gasket.

Post by varmint » Sun Apr 21, 2019 6:13 pm

Reminds me a of a repair we had to do about six years ago on our '53 Chevy. Remember, this is a pressurized system.
There was a automatic transmission cooler separate from the radiator with a rusted outlet pipe. After fabricating a new outlet pipe, I took it to a welder to reattach it to the body of the unit and watched him weld it up. After we tested it, we found pin holes. So, he welded it again with the same results. After the third try I told him to not worry about the pin holes and I paid him. I then took the cooler to a radiator shop and had the guy sweat it. The guy said, "The welder did a good job." I chuckled but agreed and passed the compliment to the welder. Basically, what happened here is that I got a piece that was rust free, structurally sound, and leak free.
Whether or nor you want to remove the block and have the rusty pin holes removed first and corrected is up to you.
Vern (Vieux Carre)


SurfCityGene
Posts: 173
Joined: Wed Jan 23, 2019 3:00 pm
First Name: Gene
Last Name: Carrothers
Location: Huntington Beach, Ca
MTFCA Number: 22905
MTFCI Number: 23068
Board Member Since: 1999

Re: Leak from head gasket.

Post by SurfCityGene » Mon Apr 22, 2019 12:57 am

Fozz, Just use the thinnest that's handy. Yes, apply a coat over the cracked area and into the Clean crack and some on the preformed shim stock patch. I used a small piece from my spare stock so don't know what thickness but isn't important. You don't want a piece too heavy cause it would be hard to pre form it over the crack and also you want thinner so it isn't as noticeable when your all done and painted. I just added the brass for some extra strength and think any thin metal would work fine.
1912 Torpedo Roadster
