26/27 cowl lacing
I'm about to install the cowl lacing on my 27 model T cowl ,and was wondering which way the brass rivets would be installed. The rivets are two prongs that go through the lacing. Are they installed from the outside or the inside of the cowl?
-
DanTreace
- Posts: 3813
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: 26/27 cowl lacing
Installed like band lining, split rivet into the lacing, head inside the cowl….best done with gas tank out, that’s how the factory done it
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
George N Lake Ozark
- Posts: 324
- Joined: Sun Jan 06, 2019 2:15 pm
- First Name: George P
- Last Name: Clipner
- * REQUIRED* Type and Year of Model Ts owned: Late '26 Touring
- Location: LakeOzark,Missourah
Re: 26/27 cowl lacing

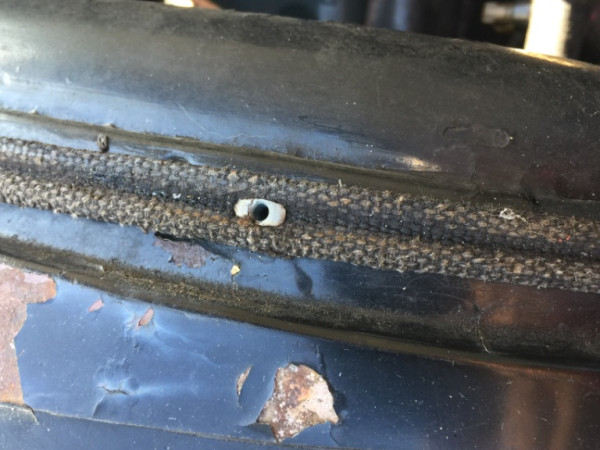

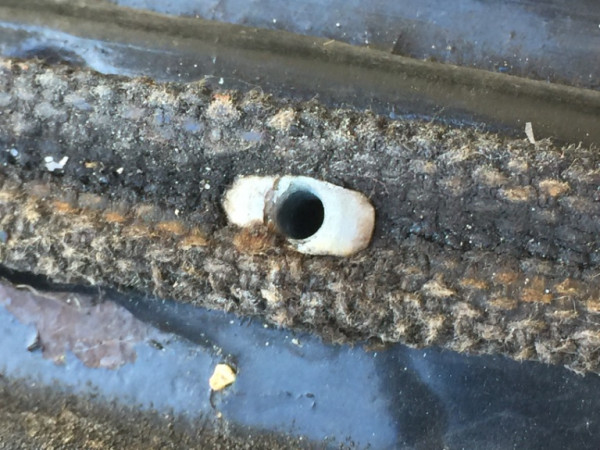

When I did mine the gas tank was in. Previous restorer used pop rivets. I took the rivets and filed the sides down so the rivet sat in the groove better
- Attachments
-
-
-
jiminbartow
- Posts: 2434
- Joined: Sun Jan 06, 2019 10:55 pm
- First Name: James
- Last Name: Patrick
- * REQUIRED* Type and Year of Model Ts owned: 1926 Coupe
- Location: Bartow, FL
- Board Member Since: 2001
Re: 26/27 cowl lacing
They are installed from the inside. The two prongs are spread and curved into and embedded into the lacing. You will need a friend on the inside holding the rivet head tight against the inside of the cowl while you spread the prongs. This is one job you cannot do alone. Jim Patrick
-
elliott1936
Topic author - Posts: 350
- Joined: Wed Jan 09, 2019 11:39 am
- First Name: Tom
- Last Name: Elliott
- * REQUIRED* Type and Year of Model Ts owned: 1921 Speedster 1927 speedster
- Location: Portland
- MTFCA Life Member: YES
- Board Member Since: 2013
Re: 26/27 cowl lacing
Thanks for the information. I will have a helper when I do this job. My son is helping me get my number 28 speedster back on the road with a new body style. Tom
-
fordt
- Posts: 162
- Joined: Wed Jun 19, 2019 5:21 pm
- First Name: Rob
- Last Name: Trippet
- * REQUIRED* Type and Year of Model Ts owned: 27 Roadster PU (in progress)
- Location: Comfort, TX
Re: 26/27 cowl lacing
Wow, just now putting my gas tank in the dash and happened to see this! THANKS! I’ll put this on first!
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: 26/27 cowl lacing
With the tank out, the rivets can be installed tangs out in the webbing as the factory fitted it, BUT, the two lowest on the sides will need different treatment because the rivets there cannot be inserted due to a double panel precluding same. Was the second panel fitted after the webbing? Most restorers resort to pop rivets at this location.
Allan from down under.
