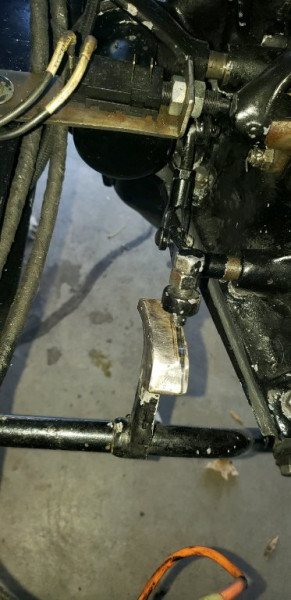

When the engine was out, I found the clutch/speed lever was very worn and was collapsing. I found that a previous owner had done a poor job with a repair weld. I straightened the wear surface and welded a new 1/8" thick plate along the top as a new wear surface. One thing I noticed when I pulled it out and reinstalled the adjustment Clutch Lever Bolt runs very closely to one edge. I would suspect it should run closer to the center (see image).
It does not look bent or twisted. Everything else looks like it is aligned correctly. I am thinking about taking a heat wrench warming it up and bending it so the bolt runs more centered. See any issues with this?
Clutch Speed Lever Adjustment
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
jagiven
Topic author - Posts: 126
- Joined: Mon Jan 07, 2019 8:13 am
- First Name: Jason
- Last Name: Given
- * REQUIRED* Type and Year of Model Ts owned: 26 Roadster, 25/26 speeder
- Location: St. Paiul
Clutch Speed Lever Adjustment
- Attachments
-
-
Mark Gregush
- Posts: 5370
- Joined: Sat Jan 05, 2019 1:57 pm
- First Name: Mark
- Last Name: Gregush
- * REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1948 F2 Ford flat head 6 pickup 3 speed
- Location: Portland Or
- Board Member Since: 1999
Re: Clutch Speed Lever Adjustment
Turn the bolt over and use the wider head to ride on the cam after rounding the edges over some.
The shaft for the throughout does have some lateral movement, so while it might not be centered now, it might be later. If you bend, it can be done cold.
The shaft for the throughout does have some lateral movement, so while it might not be centered now, it might be later. If you bend, it can be done cold.I know the voices aren't real but damn they have some good ideas!
1925 Cut down pickup
1948 Ford F2 pickup
1925 Cut down pickup
1948 Ford F2 pickup
-
RajoRacer
- Posts: 5171
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: Clutch Speed Lever Adjustment
As Mark eluded to, see just how much the throw-out shaft moves laterally - I usually grab a large adjustable wrench and bend the throw-out arm w/bolt to align better with the ramp on the H.B. shaft.
