My "new" speedometer was fine until...
...it wasn't.

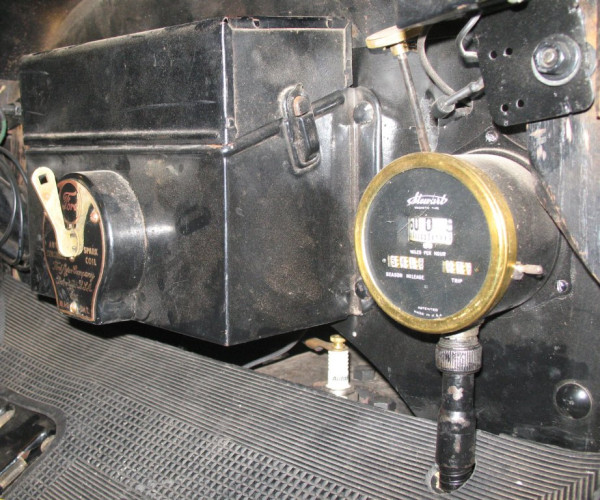

I tried out my newly installed Stewart speedometer with a run into town for groceries. The first leg, about five miles, was fine. It showed about one mph faster than the GPS, which I consider close enough. At 30 mph GPS the speedometer showed 31. Close enough for me. After shopping at the first store I backed out of my parking spot and headed for the second. Now the speedometer was erratic. It stayed at zero, then the drum would suddenly spin up to 40 or 50, then fall back to the actual speed, or even back to zero. It did this repeatedly all the way to the second store, a distance of about two miles. After shopping at the second store, again I backed out of my parking space and headed for my next stop, which was home. Again, the speedometer function was erratic, suddenly spinning up to 40 or 50, then falling back to the actual speed or to zero.
I wonder if anybody can tell me what's going on here. I have a guess, but that's all it is. Maybe somebody reading this has encountered the same problem and knows what to do about it.
I tried out my newly installed Stewart speedometer with a run into town for groceries. The first leg, about five miles, was fine. It showed about one mph faster than the GPS, which I consider close enough. At 30 mph GPS the speedometer showed 31. Close enough for me. After shopping at the first store I backed out of my parking spot and headed for the second. Now the speedometer was erratic. It stayed at zero, then the drum would suddenly spin up to 40 or 50, then fall back to the actual speed, or even back to zero. It did this repeatedly all the way to the second store, a distance of about two miles. After shopping at the second store, again I backed out of my parking space and headed for my next stop, which was home. Again, the speedometer function was erratic, suddenly spinning up to 40 or 50, then falling back to the actual speed or to zero.
I wonder if anybody can tell me what's going on here. I have a guess, but that's all it is. Maybe somebody reading this has encountered the same problem and knows what to do about it.
The inevitable often happens.
1915 Runabout
1923 Touring
1915 Runabout
1923 Touring
-
TRDxB2
- Posts: 6260
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: My "new" speedometer was fine until...
I have no answer but just 10 days ago the same problem was reported
https://mtfca.com/phpBB3/viewtopic.php?f=2&t=32532
so the first question may be: what type of cable are you using?
https://mtfca.com/phpBB3/viewtopic.php?f=2&t=32532
so the first question may be: what type of cable are you using?
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
Steve Jelf
Topic author - Posts: 7237
- Joined: Fri Jan 04, 2019 9:37 pm
- First Name: Steve
- Last Name: Jelf
- * REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
- Location: Parkerfield, Kansas
- Board Member Since: 2007
- Contact:
Re: My "new" speedometer was fine until...
The cable is the original chain type.
The inevitable often happens.
1915 Runabout
1923 Touring
1915 Runabout
1923 Touring
-
George House
- Posts: 2814
- Joined: Sun Jan 06, 2019 5:25 pm
- First Name: George
- Last Name: House
- * REQUIRED* Type and Year of Model Ts owned: ‘10 Maxwell AA, ‘11Hupp Model 20, Two 1914 Ford runabouts, 19 centerdoor, 25 C Cab,26 roadster
- Location: Northern Caldwell County TX
- MTFCA Life Member: YES
- Board Member Since: 1999
Re: My "new" speedometer was fine until...
Maybe the cable is dry ? Did you lube it prior to installation ?
A Fine is a Tax for Doing Something Wrong….A Tax is a Fine for Doing Something RIGHT
-
MichaelPawelek
- Posts: 712
- Joined: Sun Jan 06, 2019 2:01 pm
- First Name: Michael
- Last Name: Pawelek
- * REQUIRED* Type and Year of Model Ts owned: 1919 Touring, 1925 Coupe
- Location: Brookshire, Texas
- Board Member Since: 1999
Re: My "new" speedometer was fine until...
Well, Since there are now two recent reports of this happening I believe there should be a recall. Is there a Lemon law for this?
-
Russ_Furstnow
- Posts: 370
- Joined: Tue Jan 08, 2019 9:01 am
- First Name: Russ
- Last Name: Furstnow
- * REQUIRED* Type and Year of Model Ts owned: 1911 Torpedo,1913 Touring, 1914 Runabout, 1915 Coupelet, 1916 Coupelet, 1917 Coupelet
- Location: Flagstaff, AZ
- MTFCA Life Member: YES
Re: My "new" speedometer was fine until...
Steve, This is a fairly common problem with Model 100 and Model 102 speedometers. The magnetic drum has become loose on the main shaft and is now hitting the aluminum speed cup. I would disconnect the cable immediately. The solution is to take the speedometer entirely apart and remove the magnetic drum from the shaft. Clean the drum and, using a small amount of J-B Weld, place the drum back onto the shaft. Use a vice to insure the drum is securely pressed onto the shaft and be sure to have the fine speed adjustment free to move. This is not a repair for amateurs, but I know you have worked on your speedometer and its components. I hope this helps. Russ Furstnow
