Hey All!
I am working on a 1916 touring car and I have heard there should be wood shims under the rear mounts. Is this correct? If it is could someone shot a picture so I can see? I don't have any other Model Ts near me.
Thanks,
Campbell Tellman
Beaufort, NC
Wood shims under rear motor mounts
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Campbell Tellman
Topic author - Posts: 52
- Joined: Mon Oct 11, 2021 9:28 am
- First Name: Campbell
- Last Name: Tellman
- * REQUIRED* Type and Year of Model Ts owned: 1916 Ford Touring
- Location: Beaufort, NC
-
Scott_Conger
- Posts: 6523
- Joined: Sun Jan 06, 2019 11:18 am
- First Name: Scott
- Last Name: Conger
- * REQUIRED* Type and Year of Model Ts owned: 1919
- Location: not near anywhere, WY
- Board Member Since: 2005
Re: Wood shims under rear motor mounts
Scott Conger
Tyranny under the guise of law is still Tyranny
NH Full Flow Float Valves™
Obsolete carburetor parts manufactured
Tyranny under the guise of law is still Tyranny
NH Full Flow Float Valves™
Obsolete carburetor parts manufactured
-
TRDxB2
- Posts: 6259
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Wood shims under rear motor mounts

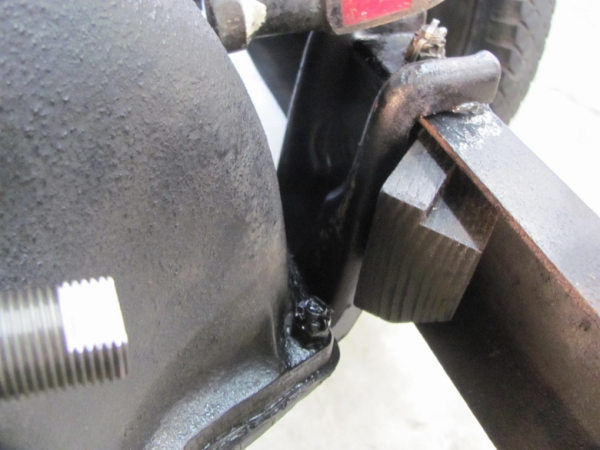

Here's a picture of where the blocks go & their orientation
- Attachments
-
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
Norman Kling
- Posts: 4634
- Joined: Tue Jan 08, 2019 1:39 pm
- First Name: Norman
- Last Name: Kling
- Location: Alpine California
Re: Wood shims under rear motor mounts
Frank's picture shows where they are to be placed, however, that is just the start of placement. They actually go flat with the frame and between the crankcase ear and the frame with a long bolt through the hole. The bolt has a hole in the end for a castle nut with cotter pin. Place the bolt through from the outside of the frame to the inside of the ear between the ear and the hogs head. To install the nut, I like to place some masking tape in the wrench to hold the nut tight in the wrench with the threads in the nut toward the ear. Then thread the bolt from the head into the bolt. Do not snug the bolt. It should be just tightened down to the point you can get the cotter pin in place and bend enough so the pin will not fall out but is easy to get out next time you pull the engine. The bolt through the top of the frame should be tight with the nut up.
Norm
Norm
-
TXGOAT2
- Posts: 7391
- Joined: Sun Feb 14, 2021 10:08 pm
- First Name: Pat
- Last Name: McNallen
- * REQUIRED* Type and Year of Model Ts owned: 1926-7 roadster
- Location: Graham, Texas
- Board Member Since: 2021
Re: Wood shims under rear motor mounts
The inside corners of the motor mount arm should not be allowed to contact the inboard edge of the frame rail flange. This can cause the normal slight movement of the parts to wear small notches in the edge of the frame flange, which can lead to a cracked frame. Correct installation of the wood blocks will usually prevent any contact here. 1/16 to 3/32" of clearance is probably enough.
-
jiminbartow
- Posts: 2433
- Joined: Sun Jan 06, 2019 10:55 pm
- First Name: James
- Last Name: Patrick
- * REQUIRED* Type and Year of Model Ts owned: 1926 Coupe
- Location: Bartow, FL
- Board Member Since: 2001
Re: Wood shims under rear motor mounts
Blocks, not shims. The angled cutout in the block on the right side, is for the fuel line to pass through from the fuel tank to the carburetor on T’s with under seat fuel tanks. Jim Patrick
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: Wood shims under rear motor mounts
I wonder if the original post referring to shims is not about a thin piece of timber between the pan ear and the top of the frame rail? If this is the case, it is not usual practice. However, I have used 1/4" insertion rubber in the same place as a vibration dampener.
Allan from down under.
Allan from down under.
