Trying to identify a part name

Post by kommandant 95 » Sun Dec 18, 2022 5:21 pm

I'm trying to identify the proper name for the square U-bracket that holds the rear spring to the rear of the frame. There are 2 per car.

If anyone has one for sale I need one. (part found)

Thanks everyone for the information
Last edited by kommandant 95 on Thu Dec 22, 2022 5:11 pm, edited 1 time in total.
Top
User avatar

Humblej
Posts: 1957
Joined: Sun Jan 06, 2019 12:23 pm
First Name: Jeff
Last Name: Humble
* REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
Location: Charlevoix, Mi
Board Member Since: 2006

Re: Trying to identify a part name

Post by Humblej » Sun Dec 18, 2022 5:28 pm

According to the Ford Price List Of Parts, they are called "Rear Spring Clip".
Top

Topic author
kommandant 95
Posts: 29
Joined: Tue Nov 08, 2022 5:52 pm
First Name: Kristian
Last Name: Thurber
* REQUIRED* Type and Year of Model Ts owned: 1913 Touring
Location: Castle Rock, Colorado

Re: Trying to identify a part name

Post by kommandant 95 » Sun Dec 18, 2022 5:34 pm

Thank you, found a set on ebay!
Top

Aussie16
Posts: 263
Joined: Sat Jan 05, 2019 9:24 pm
First Name: Warwick
Last Name: Landy
* REQUIRED* Type and Year of Model Ts owned: 1916 RHD Canadian Touring 1916 Pickup 1926 Fordor 1925 Dalgety Tourer 1916 Speedster
Location: Trarlagon Victoria Australia

Re: Trying to identify a part name

Post by Aussie16 » Sun Dec 18, 2022 5:38 pm

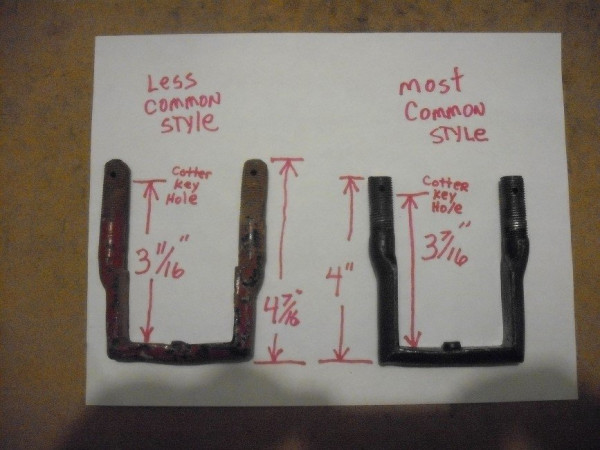

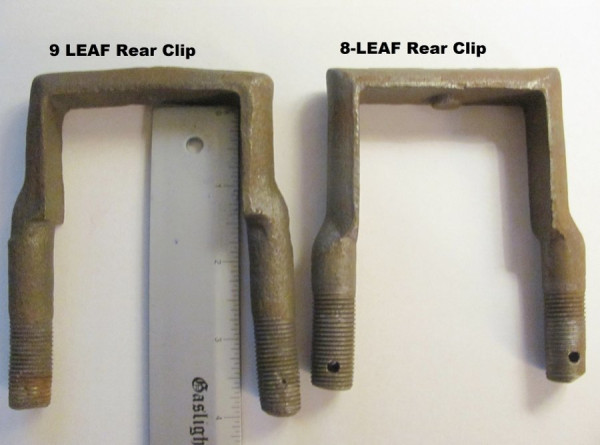

Jeff, you are correct. Parts book describes part number 3833 as "Spring Clip". I have always called them rear "U Bolts". I thought the piece that hangs over the spring to keep the leaves aligned would be more appropriately called the "Spring Clip" . That one, part 3848 is actually called "Rear Spring Retainer Clip and Rivet". As they say, you learn something every day!
Top
User avatar

TRDxB2
Posts: 6261
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
* REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
Location: Moline IL
Board Member Since: 2018

Re: Trying to identify a part name

Post by TRDxB2 » Sun Dec 18, 2022 5:45 pm

kommandant 95 wrote: ↑
Sun Dec 18, 2022 5:34 pm
 Thank you, found a set on ebay!
I could sell you 1
Attachments
