Weird Coilbox Switch Idea

Post by ThreePedalTapDancer » Sat Dec 17, 2022 4:22 am

As seen on EBay. I assume it’s an attempt at a master vibrator.

https://www.ebay.com/itm/374409258888?h ... R7KI5OGjYQ

Top
User avatar

AndreFordT
Posts: 513
Joined: Sun Jan 06, 2019 12:25 pm
First Name: Andre
Last Name: Valkenaers
* REQUIRED* Type and Year of Model Ts owned: 1926 ; 1922 ; 1915.
Location: Scherpenheuvel

Re: Weird Coilbox Switch Idea

Post by AndreFordT » Sat Dec 17, 2022 2:25 pm

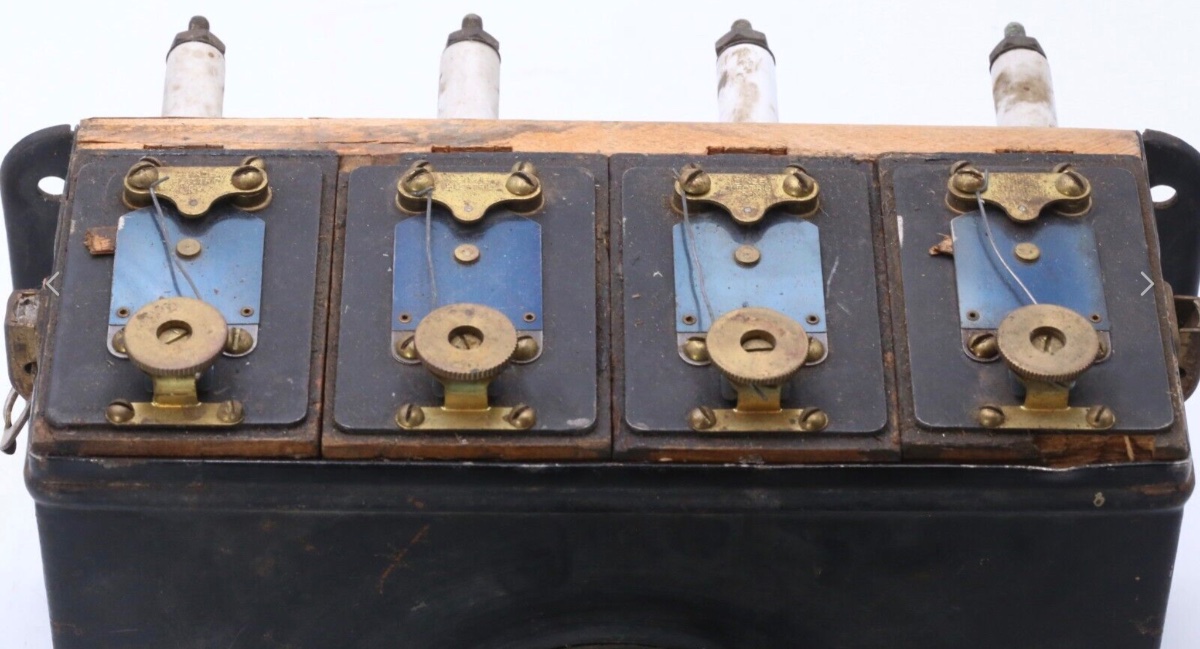

The coils are Heinze 1914 coils.

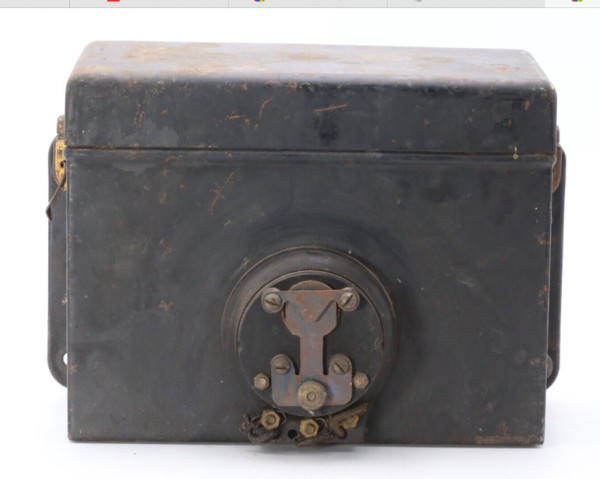

I can't find a picture off the contact points in front of the coilbox.
For my it is an attemp for building a mastercoil in a Heinze switch.

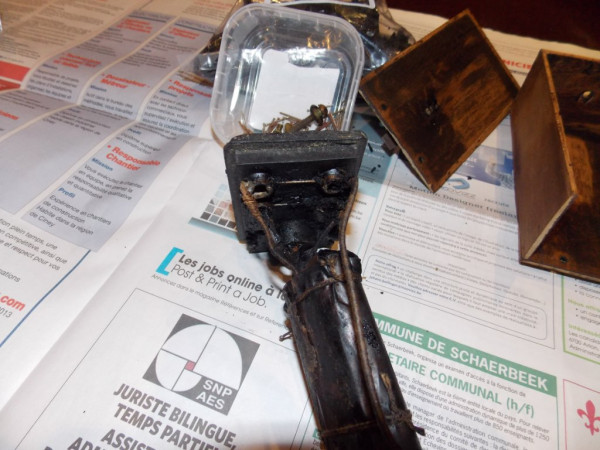

The litle coil under the points look like one of a K&W mastercoil.

Just my opinion.
Andre
Belgium
Attachments

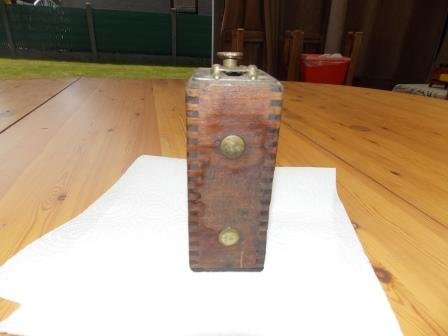

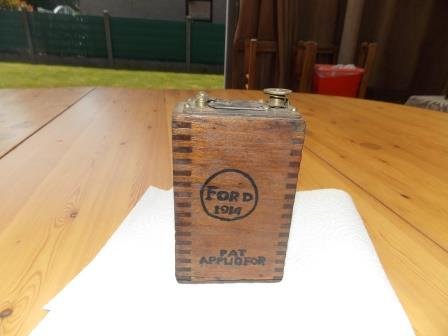

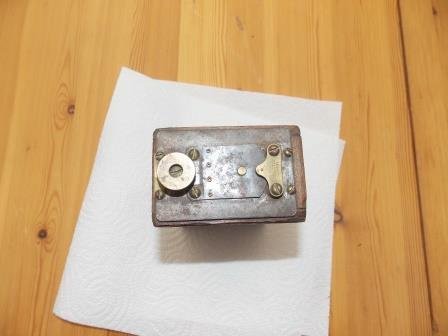

Master vibrator 37.JPG
Master vibrator 17.jpg
Top
User avatar

Rich Eagle
Posts: 6895
Joined: Fri Jan 04, 2019 10:51 am
First Name: Richard
Last Name: Eagle
* REQUIRED* Type and Year of Model Ts owned: 1909 TR 1914 TR 1915 Rd 1920 Spdstr 1922 Coupe 1925 Tudor
Location: Idaho Falls, ID

Re: Weird Coilbox Switch Idea

Post by Rich Eagle » Sat Dec 17, 2022 6:24 pm

It seems odd to me that points would be where the on off/bat mag switch would be. I don't suppose it's an anti-theft device. :lol:
There is always something new to see here.
Rich
When did I do that?
Top

Topic author
ThreePedalTapDancer
Posts: 1631
Joined: Sun Nov 24, 2019 2:29 pm
First Name: Ed
Last Name: Martin
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1909 Touring
Location: Idaho

Re: Weird Coilbox Switch Idea

Post by ThreePedalTapDancer » Sat Dec 17, 2022 7:50 pm

Top
