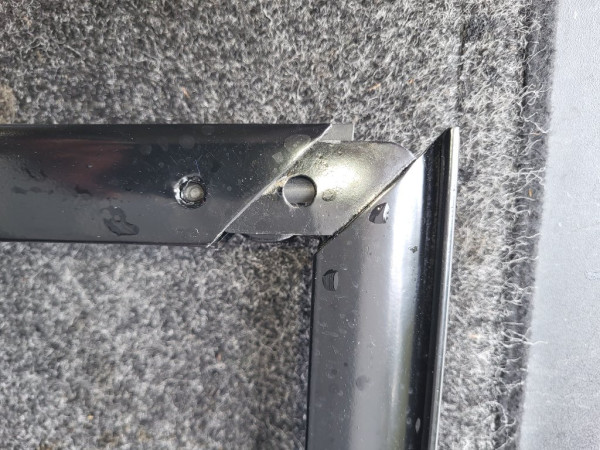

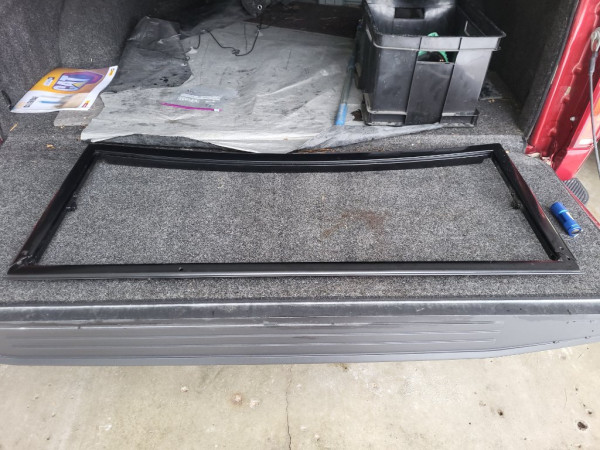

I am getting ready to install the glass into the windshield frame. The attached photos show one corner of the frame. There are three screws that hold the frame together at the two corners.

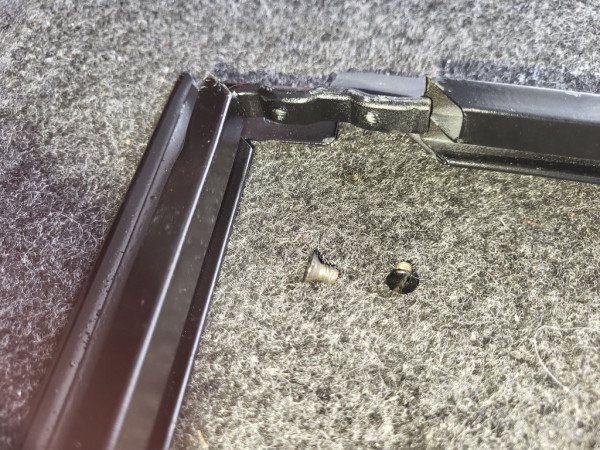

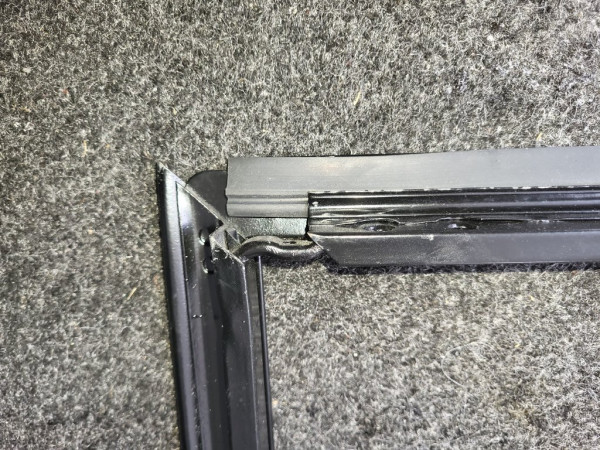

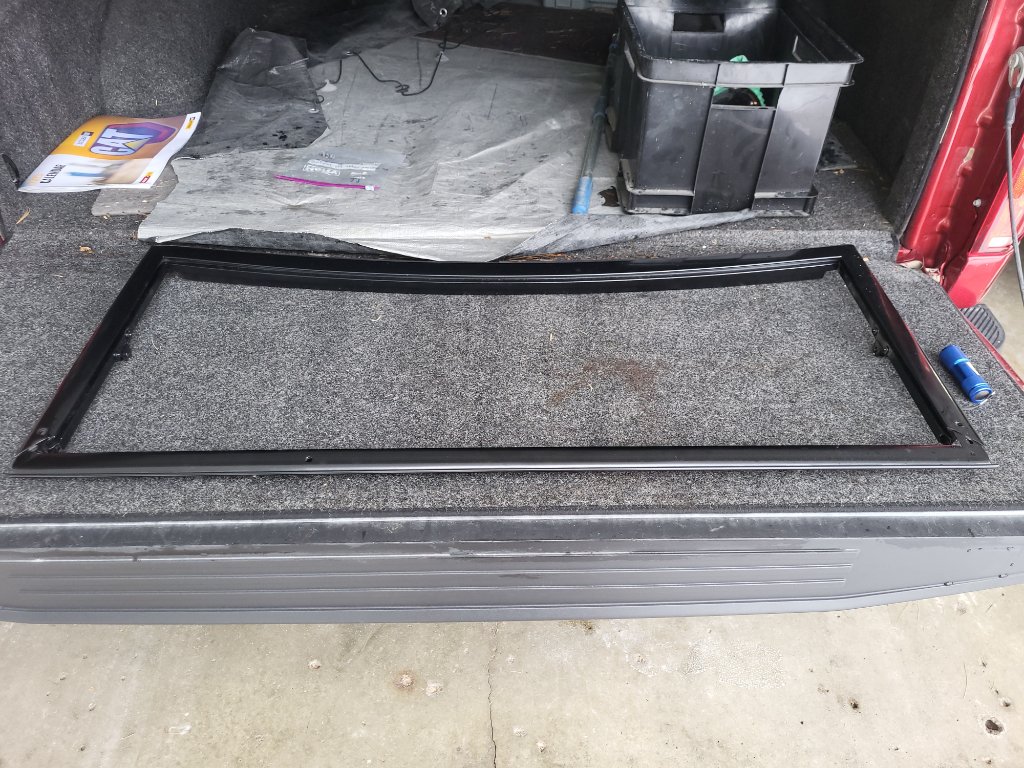

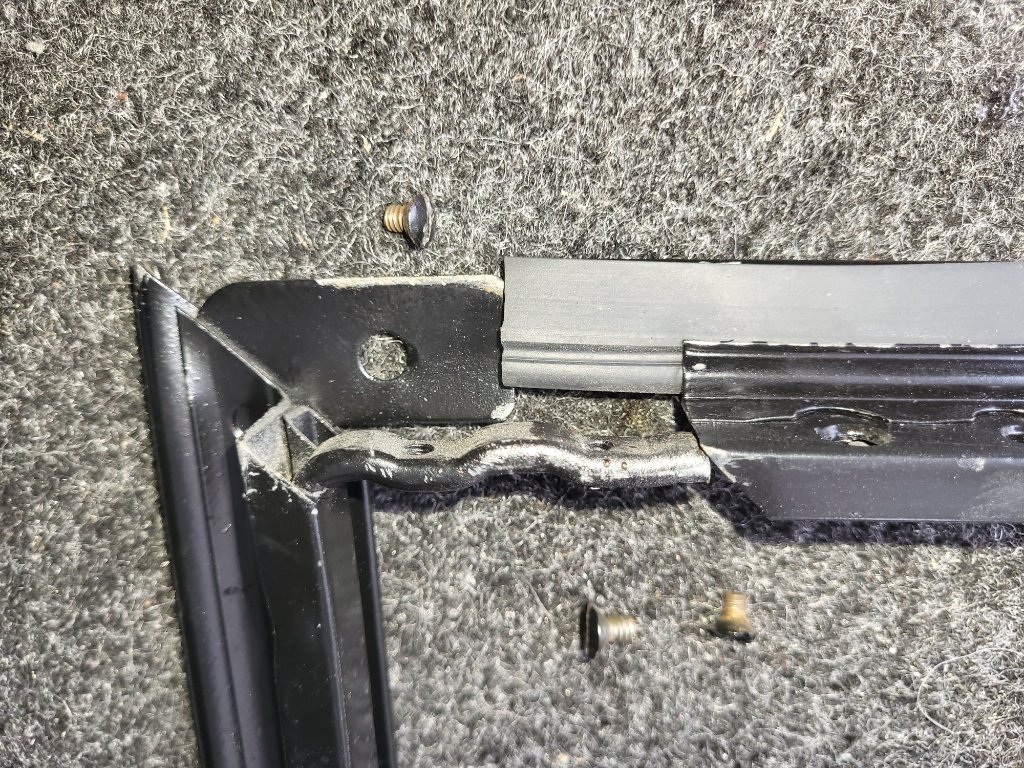

The fourth photo shows the two screws that holds the bracket that fits into the piece on the right. The fifth photo shows these, and the screw that fits into the hole shown in the second photo. The problem I have is: I don't remember what that screw threaded into! As can be seen in that second photo, the hole in the piece on the right is much larger than the screw.
I hope someone knows how it was attached. I wonder how important that screw is. Can I just leave it out if I can't figure out how was attached?
Installing Windshield Glass for 1927 Coupe
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
BLB27
Topic author - Posts: 892
- Joined: Thu Jul 23, 2020 9:28 pm
- First Name: Bruce
- Last Name: Brakke
- * REQUIRED* Type and Year of Model Ts owned: 1927 coupe
- Location: Ames, Iowa
Installing Windshield Glass for 1927 Coupe
- Attachments
-
-
-
-
-
-
BLB27
Topic author - Posts: 892
- Joined: Thu Jul 23, 2020 9:28 pm
- First Name: Bruce
- Last Name: Brakke
- * REQUIRED* Type and Year of Model Ts owned: 1927 coupe
- Location: Ames, Iowa
Re: Installing Windshield Glass for 1927 Coupe
Move to top.
-
Line_Noise
- Posts: 24
- Joined: Sat Nov 19, 2022 8:50 am
- First Name: Derek
- Last Name: Dudgeon
- * REQUIRED* Type and Year of Model Ts owned: 1927 Coupe
- Location: Baltimore, MD
- Board Member Since: 2022
Re: Installing Windshield Glass for 1927 Coupe
Well, I checked my car and all 6 screws are missing. Apparently it has been like that since 2009, with nothing but the sliders and friction holding the glass and bottom half of the frame. I suspect the glass shop that did the replacement destroyed the screws trying to get them out, or the glass was a bit tall dimensionally and they couldn't be bothered to sand it down or cut new glass.
I think I will keep my windshield closed in tight until I can address.
The forward- facing screws appear to be intended to apply some clamping force on the folded metal of the frame, not to supply additional restraint against vertical movement of the frame & glass.
Each screw passes through the front fold of the frame, then the large hole in the tab, then it looks like it just threads into the rear of the frame like a self-tapping screw. On my car these look a little chewed up, so I may have to look into adding a thin nut or similar between the rear fold of the frame and the rubber seal.
I think I will keep my windshield closed in tight until I can address.
The forward- facing screws appear to be intended to apply some clamping force on the folded metal of the frame, not to supply additional restraint against vertical movement of the frame & glass.
Each screw passes through the front fold of the frame, then the large hole in the tab, then it looks like it just threads into the rear of the frame like a self-tapping screw. On my car these look a little chewed up, so I may have to look into adding a thin nut or similar between the rear fold of the frame and the rubber seal.
-
Scott_Conger
- Posts: 6523
- Joined: Sun Jan 06, 2019 11:18 am
- First Name: Scott
- Last Name: Conger
- * REQUIRED* Type and Year of Model Ts owned: 1919
- Location: not near anywhere, WY
- Board Member Since: 2005
Re: Installing Windshield Glass for 1927 Coupe
It appears that your rubber weather strip is probably covering over the threads. I suspect that the large hole is simply a clearance hole to get to the obscured threads. Pull the strip back and I'll bet you see it. Compare to the old strip and I'd bet there is either a notch or hole in the old weather strip. Purely a guess as I do not own an Improved Ford.
I would certainly not leave it out. It's a window frame. It can't take that long to find the hole(s).
I would certainly not leave it out. It's a window frame. It can't take that long to find the hole(s).
Scott Conger
Tyranny under the guise of law is still Tyranny
NH Full Flow Float Valves™
Obsolete carburetor parts manufactured
Tyranny under the guise of law is still Tyranny
NH Full Flow Float Valves™
Obsolete carburetor parts manufactured
-
Chris Barker
- Posts: 318
- Joined: Sun Jan 06, 2019 5:08 pm
- First Name: Chris
- Last Name: Barker
- * REQUIRED* Type and Year of Model Ts owned: 1926 Coupe
- Location: Somerset, Eng;and
Re: Installing Windshield Glass for 1927 Coupe
I have had a look at my frame and removed that small screw.
It's hard to see exactly what's there, but it goes through the outer frame part, then another piece - as you show, and then I can see threads so I think there may be a small nut.
Is you frame fully painted? I wouldn't assemble it until it is painted.
It's hard to see exactly what's there, but it goes through the outer frame part, then another piece - as you show, and then I can see threads so I think there may be a small nut.
Is you frame fully painted? I wouldn't assemble it until it is painted.
