1922 two-man top rear strap D ring cut off?

Post by ivaldes1 » Sat Jun 01, 2019 8:22 pm

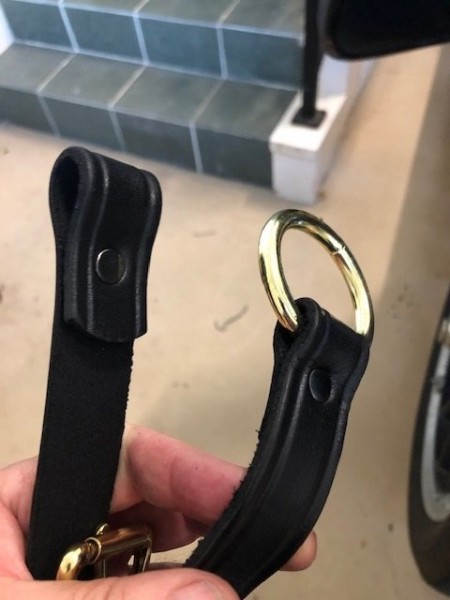

Do I really have to cut or drill the rivet out of the lower D ring off the rear curtain strap and nail it to the tack strip? Is there another way to mount it without taking the D ring off for a 1922 touring 2 man top?
Attachments

User avatar

Topic author
ivaldes1
Posts: 118
Joined: Mon Jan 07, 2019 1:32 am
First Name: Ignacio
Last Name: Valdes
Location: Houston, Tx
MTFCA Number: 50406
Board Member Since: 2016

Re: 1922 two-man top rear strap D ring cut off?

Post by ivaldes1 » Sat Jun 01, 2019 11:46 pm

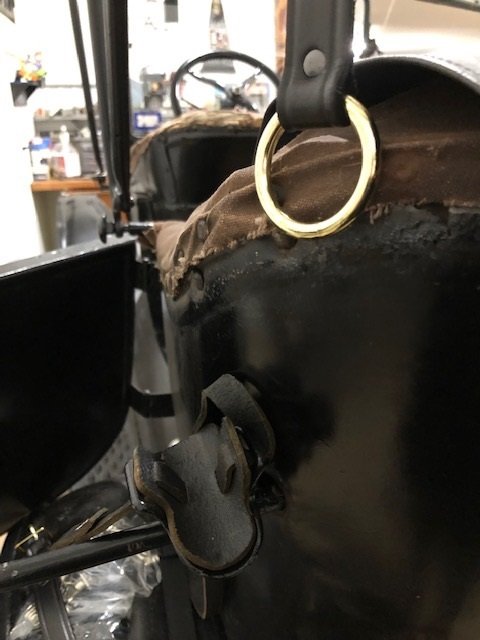

This old thread http://www.mtfca.com/discus/messages/179374/229470.html has multiple pictures of the rear strap mount. None of them are like a 1922 which has the bow saddle rods straight out to the sides. The strap isn't long enough in any case to reach the rods. How are they supposed to go on? I would rather not sacrifice the ring if I can.
Attachments


russ_furstnow
Posts: 39
Joined: Tue Jan 08, 2019 9:01 am
First Name: Russ
Last Name: Furstnow
Location: Flagstaff, AZ
MTFCA Life Member: YES

Re: 1922 two-man top rear strap D ring cut off?

Post by russ_furstnow » Sun Jun 02, 2019 12:21 am

The straps you purchased are not made to fit the 1922 touring car. The straps with the ring fits 1911-1920 tourings and runabouts that have the "L" bracket and top saddle. For your car, a cloth strap was nailed/tacked to the top bow and then nailed/tacked to the tack strip.
I hope this helps.
Russ Furstnow

User avatar

Topic author
ivaldes1
Posts: 118
Joined: Mon Jan 07, 2019 1:32 am
First Name: Ignacio
Last Name: Valdes
Location: Houston, Tx
MTFCA Number: 50406
Board Member Since: 2016

Re: 1922 two-man top rear strap D ring cut off?

Post by ivaldes1 » Sun Jun 02, 2019 12:24 am

Thanks, since the kit did not come with that then I think I will get a small piece of leftover top strap cloth, pass it through the ring and nail 'er down.

User avatar

VowellArt
Posts: 215
Joined: Sun Jan 06, 2019 8:44 am
First Name: Martynn
Last Name: Vowell
Location: Sylmar, Commiefornia
MTFCA Number: 9908
Board Member Since: 2012
Contact:

Re: 1922 two-man top rear strap D ring cut off?

Post by VowellArt » Fri Jun 07, 2019 11:01 pm

The rear and front straps are never sold with any of the top kits, you're supposed to buy them before you start assembling your top and you buy them from Langs. They are a web belt strap, 1 inch wide and have friction buckles, similar to what you see on web belts for pants. One end nails to the outside tack strip on the rear of the touring, the other end has the friction buckle, then the top side of the rear strap has a footman's loop which attaches to the inside the rear corner of the rear top bow, the other end goes in that friction buck and is pulled taunt, this stretches the strap webbing (2 inches wide) that goes across the bows from the rear to the front about 16 inches from the center of the bows on both sides and makes for a really firm surface for the top deck to be fitted to. DONT USE TOP MATERIAL FOR THOSE REAR STRAPS! They will not hold, it'll tear and then your top will be compromised. Buy the correct straps from Langs and do it right the first time, because if you do what you just said you'd do, you'll be take the top apart to re-do it and then it'll be harder to reposition the top deck and curtain because they're already trimmed.

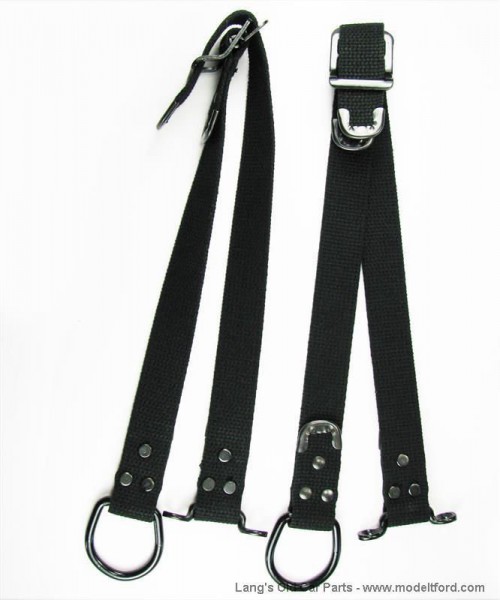

Rear Straps, notice they come with those bloody useless "D" rings? Just cut them off, that's what I did and don't worry about the bloody rivets showing.
7831SWB

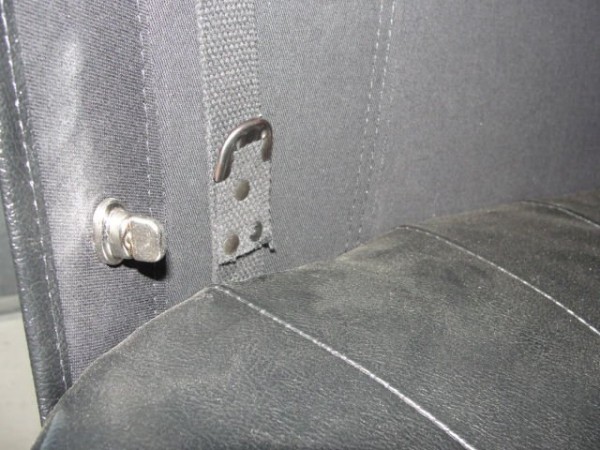

This is what I did, notice that I cut the strap high up near the rivets, used that portion of the strap to nail it to my tack rail. But if you remove those rivets, you run the risk of the webbing fraying. This worked for me and I didn't have to worry overmuch about any fraying.

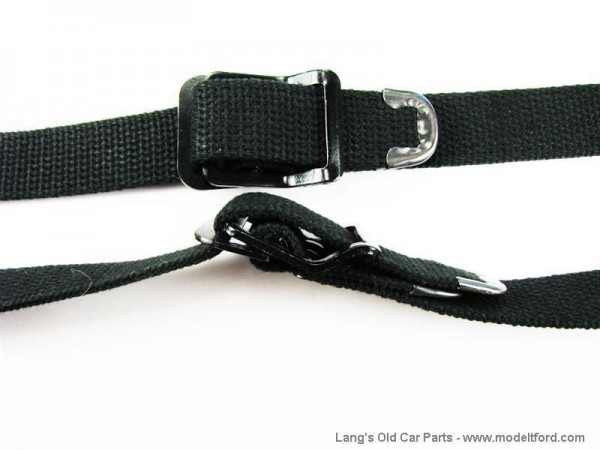

The Front Straps

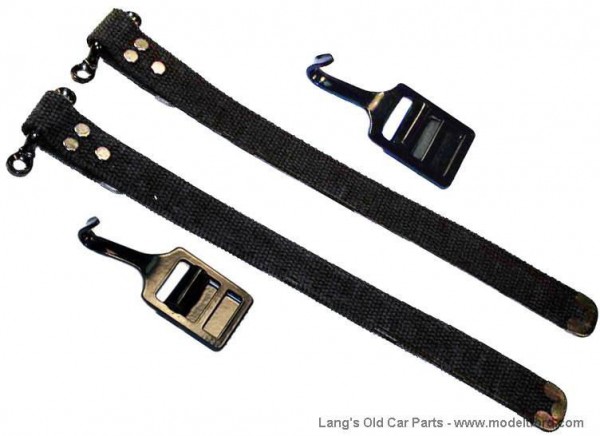

3314WS

Now these aren't cheap, they're about $53 and change for the rear strap pair and about $85 and change for the front pair from Lang's, but they're better than using leather or scrap top fabric and correct for your car too.
Fun never quits!

User avatar

VowellArt
Posts: 215
Joined: Sun Jan 06, 2019 8:44 am
First Name: Martynn
Last Name: Vowell
Location: Sylmar, Commiefornia
MTFCA Number: 9908
Board Member Since: 2012
Contact:

Re: 1922 two-man top rear strap D ring cut off?

Post by VowellArt » Fri Jun 07, 2019 11:11 pm

Remember, if you're ever planning on re-doing your seats...do them FIRST! At least the rear one. Because once the tops up and done, you won't be able to install the rear seat back without taking the rear curtain and straps apart.
Fun never quits!

User avatar

jsaylor
Posts: 50
Joined: Sun Jan 06, 2019 5:25 pm
First Name: John
Last Name: Saylor
Location: Citrus Heights, Ca
MTFCA Number: 1695
MTFCI Number: 23870
Board Member Since: 1999

Re: 1922 two-man top rear strap D ring cut off?

Post by jsaylor » Fri Jun 07, 2019 11:21 pm

My 21 top done some 50 years ago has the footman loops on both top and bottom.


R.V.Anderson
Posts: 135
Joined: Tue Jan 08, 2019 6:01 pm
First Name: R.V.
Last Name: Anderson
Location: Kennedy, NY

Re: 1922 two-man top rear strap D ring cut off?

Post by R.V.Anderson » Sat Jun 08, 2019 9:00 pm

Ignacio, I am the one who makes the cotton web strap sets that Martin showed you, and which Lang's and Snyder's carry. As he and Russ have pointed out, the set with the D rings was used 1915-21 on cars that used the L-irons to hold the top rest saddles. On your '22, the bottom strap has no D ring but is nailed directly to the belt rail or tack strip on the rear seat back. Send me a PM and I will build you a set for your car.

rvmodelt@netsync.net

User avatar

VowellArt
Posts: 215
Joined: Sun Jan 06, 2019 8:44 am
First Name: Martynn
Last Name: Vowell
Location: Sylmar, Commiefornia
MTFCA Number: 9908
Board Member Since: 2012
Contact:

Re: 1922 two-man top rear strap D ring cut off?

Post by VowellArt » Tue Jun 11, 2019 6:11 pm

jsaylor wrote:
Fri Jun 07, 2019 11:21 pm
My 21 top done some 50 years ago has the footman loops on both top and bottom.
Yes, but your touring is a 21, not a 22 and 22's body is a whole different animal (3 piece tub) from that of the previous cars (5 piece tubs)...he has no "L" bracket on which to hook that bloody "D" ring and trying to get a strap long enough to hook over the saddle rests iron which comes out of the side of the quarter panel about 7 inches below the corner of the rear seat tack rail would put undue stress on the rear bow and it will stick out from the body so that no side curtain will ever fit either.

22's top saddle rests arm is mounted on the same "S" structure iron that the rear fender is mounted to directly in line and below the top saddle rest iron, which is just a shorted straight rod with a threaded end, because the 22's body is built the same as a 23-25. It was just at the beginning of 22 Ford didn't have the 1 man top completed for one reason or other, so the first 4 or 5 months (if that) of production came out with 2 man tops, so early 1922 is the last of the 2 man tops (and to my mind) the iconic look of the Model T Ford as well.

On your car that strap would work, on Ignacio's no, never will and he should take that strap and sell it at some swap meet for what he paid for it.

Ignacio, take R.V. Anderson up on his very kind offer, then your rear straps will fit like they're supposed to, rather than making them fit the car like I did. ;)
Fun never quits!
