Wizard/Simmons carburetor jets

Post by Scott_Conger » Fri Oct 28, 2022 1:28 pm

I am trying to gauge interest for new Wizard/Simmons jets. Many folks believe that they are the same as the jet found in NH's, but they are NOT, and substituting an NH jet into a Wizard/Simmons, will not give the designed performance.

I am open to opinions as to the need for them...please feel free to email me
Thank you.

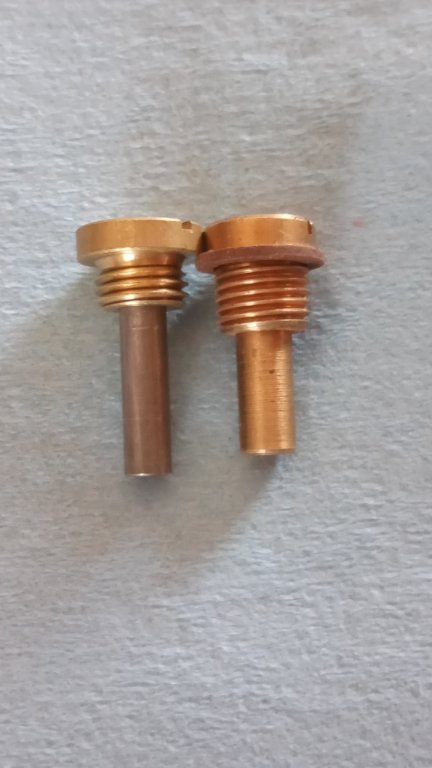

NH on left; Wizard (still sporting its gasket) on right:
Scott Conger

Tyranny under the guise of law is still Tyranny

NH Full Flow Float Valves™
Obsolete carburetor parts manufactured
Top
User avatar

Mark Gregush
Posts: 5370
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
* REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1948 F2 Ford flat head 6 pickup 3 speed
Location: Portland Or
Board Member Since: 1999

Re: Wizard/Simmons carburetor jets

Post by Mark Gregush » Fri Oct 28, 2022 9:50 pm

Scott, while that would be a worthwhile endeavor, maybe what is more needed would the needle itself and maybe the flapper.
I know the voices aren't real but damn they have some good ideas! :shock:

1925 Cut down pickup
1948 Ford F2 pickup
Top

Shannon_in_Texas
Posts: 186
Joined: Tue Nov 05, 2019 10:40 pm
First Name: Shannon
Last Name: Helm
Location: Arlington TX

Re: Wizard/Simmons carburetor jets

Post by Shannon_in_Texas » Tue Jan 17, 2023 1:20 pm

Scott, what did you decide about making parts for the Wizard/Simmons carbs in addition to the float valves?
Top

Topic author
Scott_Conger
Posts: 6523
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
* REQUIRED* Type and Year of Model Ts owned: 1919
Location: not near anywhere, WY
Board Member Since: 2005

Re: Wizard/Simmons carburetor jets

Post by Scott_Conger » Tue Jan 17, 2023 1:39 pm

Hi Shannon

I have drawings of the parts but no plans to reproduce anything at this time. Interest was non-existent and I have enough projects for things people want than to spend time on things they generally do not want.

thanks for asking, though
Scott Conger

Tyranny under the guise of law is still Tyranny

NH Full Flow Float Valves™
Obsolete carburetor parts manufactured
Top

speedytinc
Posts: 4725
Joined: Fri Feb 12, 2021 12:24 pm
First Name: john
Last Name: karvaly
* REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
Location: orange, ca
Board Member Since: 2020

Re: Wizard/Simmons carburetor jets

Post by speedytinc » Tue Jan 17, 2023 2:04 pm

Isnt the difference in the length & possibly a larger jet hole?
Couldnt one be made by un-soldering a NH jet, shortening & re-soldering?
Been a while since I looked @ the pieces I have from a few disassembled units.
I recall The needle is a bit shorter than a NH also, so a modification can be made.
The only tough part is the flapper if one is needed.
