U-Joint question

Post by tselliott » Mon Jan 16, 2023 1:15 am

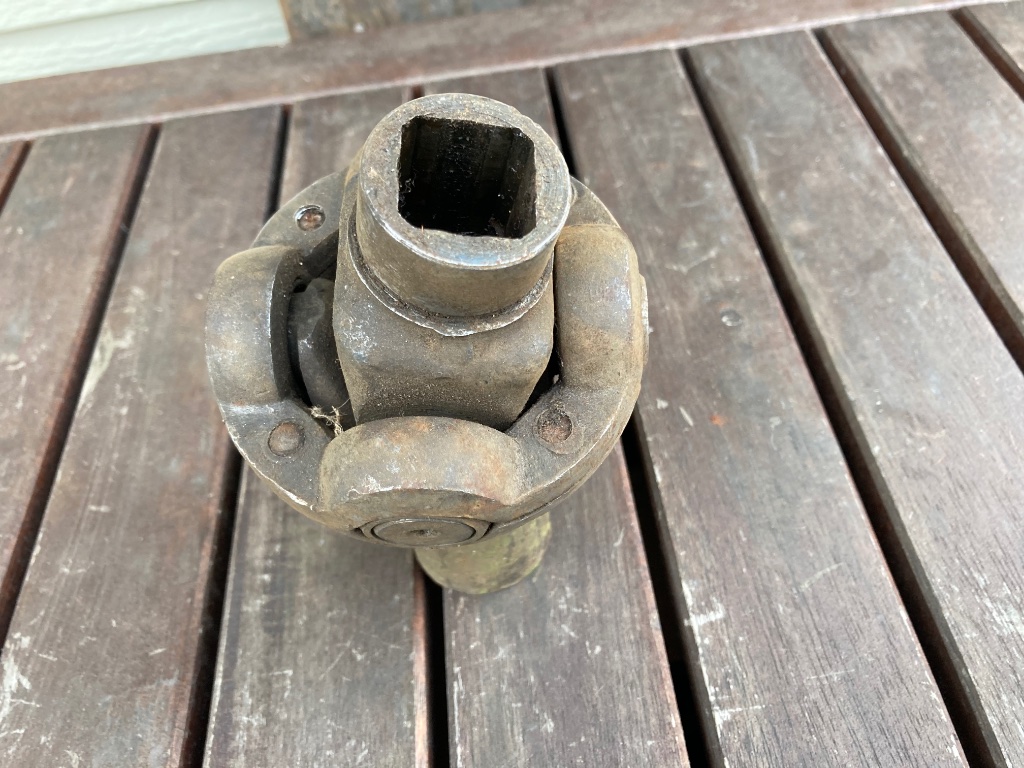

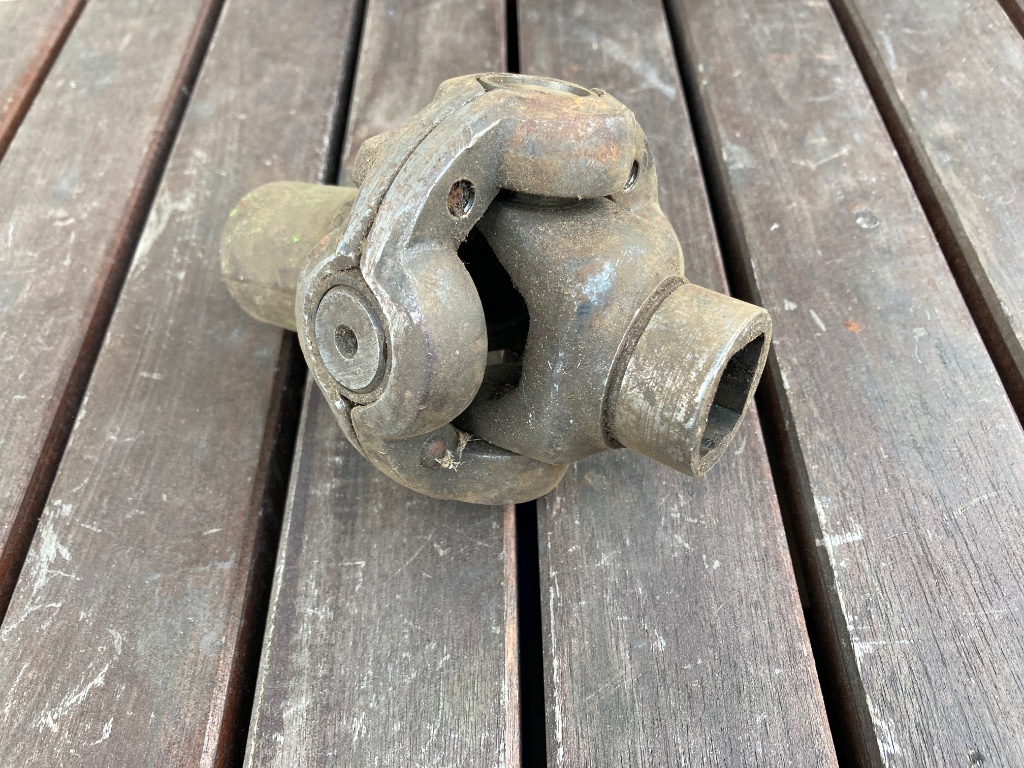

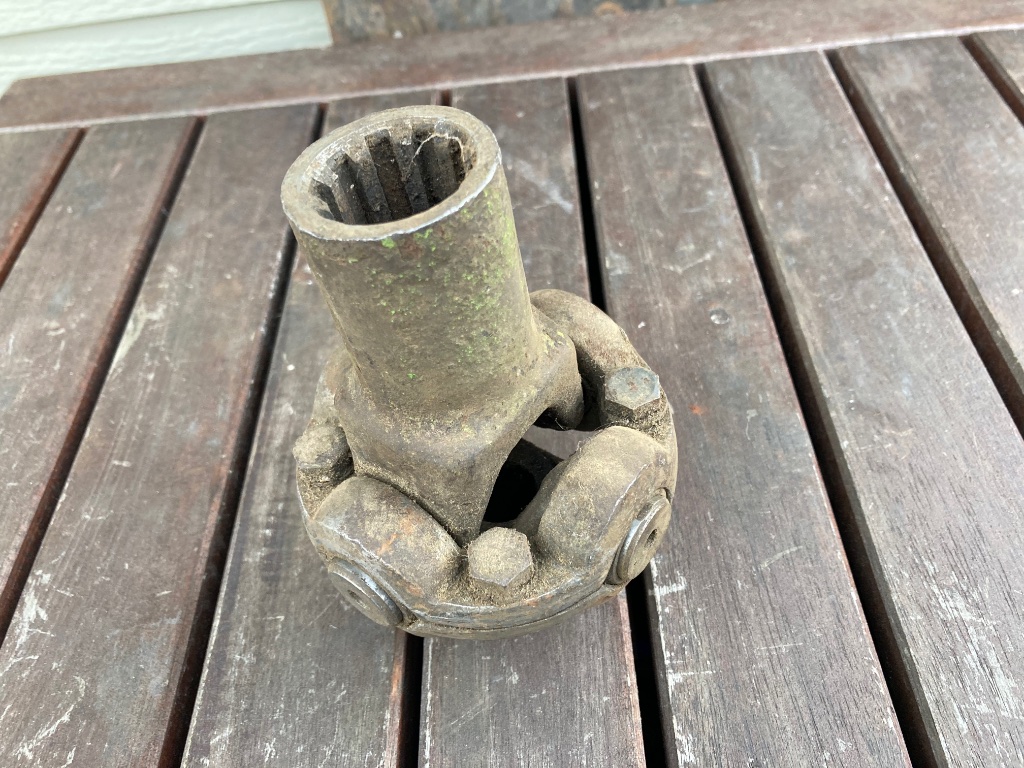

Can anybody tell me what this u-joint is for?
Thanks
Attachments
Top

mtntee20
Posts: 657
Joined: Sun Jan 06, 2019 2:51 pm
First Name: Terry & Sharon
Last Name: Miller
* REQUIRED* Type and Year of Model Ts owned: 1920 Center Door, 1920 TTWood cab Farm Truck with cable dump grain bed, 1920 TT C-Cab with express bed, 1927 Wood body Dairy Delivery truck
Location: Westminster, CO
Board Member Since: 2017

Re: U-Joint question

Post by mtntee20 » Mon Jan 16, 2023 9:50 am

It appears to be an adapter from the transmission output to an auxiliary transmission input. Doesn't appear to be for the old Warfords as they were/are square on both input and output.

Good Luck,
Terry
Top
User avatar

Mark Gregush
Posts: 5370
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
* REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1948 F2 Ford flat head 6 pickup 3 speed
Location: Portland Or
Board Member Since: 1999

Re: U-Joint question

Post by Mark Gregush » Mon Jan 16, 2023 11:36 am

Scott, you might try post here: https://forums.aaca.org/forum/66-what-is-it/ or https://www.smokstak.com/forum/forums/a ... trucks.57/
I am thinking it is for different make of car or truck that used that configuration.
I know the voices aren't real but damn they have some good ideas! :shock:

1925 Cut down pickup
1948 Ford F2 pickup
Top
User avatar

DanTreace
Posts: 3813
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
* REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
Location: North Central FL
Board Member Since: 2000
Contact:
Contact DanTreace

Re: U-Joint question

Post by DanTreace » Mon Jan 16, 2023 1:36 pm

Perhaps it’s for a Muncie, older post shows similar.

The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Top

Moxie26
Posts: 1863
Joined: Sun Jan 06, 2019 8:20 pm
First Name: Robert
Last Name: Jablonski
* REQUIRED* Type and Year of Model Ts owned: 1926 Runabout
Location: New Jersey
MTFCA Life Member: YES
Board Member Since: 1999

Re: U-Joint question

Post by Moxie26 » Mon Jan 16, 2023 1:47 pm

Check the Ford Model A parts book.
Top
User avatar

Rich Eagle
Posts: 6895
Joined: Fri Jan 04, 2019 10:51 am
First Name: Richard
Last Name: Eagle
* REQUIRED* Type and Year of Model Ts owned: 1909 TR 1914 TR 1915 Rd 1920 Spdstr 1922 Coupe 1925 Tudor
Location: Idaho Falls, ID

Re: U-Joint question

Post by Rich Eagle » Mon Jan 16, 2023 1:57 pm

Chevrolet used 4 bolts and splines like that. Others probably did too.
Somewhat similar. 34-36 Chev.
https://www.vintageplanet.ca/OEM-GM-Uni ... _1371.html
33 chev truck
https://autopartsobsolete.com/1933-Chev ... 64440.html
When did I do that?
Top
User avatar

Craig Leach
Posts: 1906
Joined: Tue Jan 08, 2019 12:22 am
First Name: craig
Last Name: leach
* REQUIRED* Type and Year of Model Ts owned: 1919 Firetruck/1922 Speedster
Location: Laveen Az

Re: U-Joint question

Post by Craig Leach » Mon Jan 16, 2023 7:58 pm

I pickup some once they where marked Chevy and I have seen them in a Chevy trans adapted to a model T before.
I had hopped they could be used to make a Muncie coupling but the square is to large. I did use one of the cages to make a
model A to Model T joint If one was to use a model A trans for a Aux. trans.
Craig.
Top

Dennis_Brown
Posts: 245
Joined: Wed Jan 09, 2019 10:14 pm
First Name: Dennis
Last Name: Brown
* REQUIRED* Type and Year of Model Ts owned: 1926 Roadster pickup
Location: Spring Hill Fl

Re: U-Joint question

Post by Dennis_Brown » Mon Jan 16, 2023 10:28 pm

Does it have a game fitting? Some older tractors had the splined pto shaft and a square drive shaft to an implement.
