Interesting lines in radiator to block pipe

Post by Tmooreheadf » Tue Jan 24, 2023 6:25 am

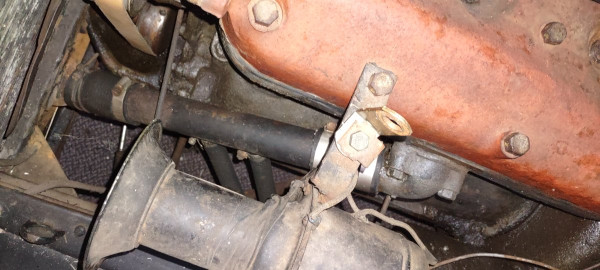

A recent purchase of a Tudor had these two 3/4" pipes going to a small about 1 1/2 gallon steel tank under the floorboard under the driver seat. No water pump. Anyone ever seen this before and why? Heater, extra capacity for cooling, etc


TXGOAT2
Posts: 7391
Joined: Sun Feb 14, 2021 10:08 pm
First Name: Pat
Last Name: McNallen
* REQUIRED* Type and Year of Model Ts owned: 1926-7 roadster
Location: Graham, Texas
Board Member Since: 2021

Re: Interesting lines in radiator to block pipe

Post by TXGOAT2 » Tue Jan 24, 2023 6:33 am

Looking at that, I don't see what purpose it would serve. To use a hot water heater in a T, you would need a heater unit with a fan inside the car and you'd need to add a water pump. Water would need to be taken from the cylinder head outlet and returned to the lower radiator pipe. A heater fan would tax the capacity of a stock T generator. If you want to add engine cooling capacity to a T, you need to add heat exchanging area, not water volume capacity.


Topic author
Tmooreheadf
Posts: 414
Joined: Sun Jan 06, 2019 7:31 pm
First Name: Tom
Last Name: Moorehead
* REQUIRED* Type and Year of Model Ts owned: 24 Touring, 25 Coupe,
Location: Louisville, KY

Re: Interesting lines in radiator to block pipe

Post by Tmooreheadf » Tue Jan 24, 2023 7:02 am

My thoughts exactly. But someone sure went to a lot of work for a nice looking installation. The new owner will remove it all once he gets it home !

User avatar

DanTreace
Posts: 3813
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
* REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
Location: North Central FL
Board Member Since: 2000
Contact:

Re: Interesting lines in radiator to block pipe

Post by DanTreace » Tue Jan 24, 2023 9:05 am

Probably used the set-up for extreme cooling, on the hottest days …or hard hill pulls when the engine over heats.

The owner just planned ahead and put ice in that storage container under the seat, instant cooling. ;)
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford


Scott_Conger
Posts: 6523
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
* REQUIRED* Type and Year of Model Ts owned: 1919
Location: not near anywhere, WY
Board Member Since: 2005

Re: Interesting lines in radiator to block pipe

Post by Scott_Conger » Tue Jan 24, 2023 11:07 am

When you see things like this on a "T", there are almost always bound to be more, and less pleasing things to be found in the future.
Scott Conger

Tyranny under the guise of law is still Tyranny

NH Full Flow Float Valves™
Obsolete carburetor parts manufactured


Norman Kling
Posts: 4634
Joined: Tue Jan 08, 2019 1:39 pm
First Name: Norman
Last Name: Kling
Location: Alpine California

Re: Interesting lines in radiator to block pipe

Post by Norman Kling » Tue Jan 24, 2023 11:52 am

Are you sure it was for cooling the engine, or might it be used to warm the seat for cold weather? Modern cars have electric seat warmers on them, so this might be an early idea to warm up the seat. On a 26-27 there is no gas tank under the seat.
Norm


TXGOAT2
Posts: 7391
Joined: Sun Feb 14, 2021 10:08 pm
First Name: Pat
Last Name: McNallen
* REQUIRED* Type and Year of Model Ts owned: 1926-7 roadster
Location: Graham, Texas
Board Member Since: 2021

Re: Interesting lines in radiator to block pipe

Post by TXGOAT2 » Tue Jan 24, 2023 11:59 am

Connected as it appears to be, there would be no circulation. I'd like to know what it was supposed to do.


Jerry VanOoteghem
Posts: 4082
Joined: Sun Jan 06, 2019 4:06 pm
First Name: Jerry
Last Name: Van
Location: S.E. Michigan

Re: Interesting lines in radiator to block pipe

Post by Jerry VanOoteghem » Tue Jan 24, 2023 12:09 pm

Tom,

Wondering if the return tube has a dam in it, between the two hose outlets, to force coolant through the add-on tank. Not saying that would work, or why anyone would do it... :?


ModelT46
Posts: 1627
Joined: Sun Jan 06, 2019 8:35 pm
First Name: Darel
Last Name: Leipold
* REQUIRED* Type and Year of Model Ts owned: 1910 touring
Location: Excelsior MN
Board Member Since: 1999

Re: Interesting lines in radiator to block pipe

Post by ModelT46 » Tue Jan 24, 2023 12:13 pm

That does help cool . Years ago I bouight a very nice 1923 (22 style) coupe that over heated after 30 minutes of use. I installed a system similar to this mone using a two gallon tank back in the rear area. Drove the T for 20 years and it never over heated after that.


TXGOAT2
Posts: 7391
Joined: Sun Feb 14, 2021 10:08 pm
First Name: Pat
Last Name: McNallen
* REQUIRED* Type and Year of Model Ts owned: 1926-7 roadster
Location: Graham, Texas
Board Member Since: 2021

Re: Interesting lines in radiator to block pipe

Post by TXGOAT2 » Tue Jan 24, 2023 12:15 pm

Mustard & Biscuits... mmmmmmm....


Jerry VanOoteghem
Posts: 4082
Joined: Sun Jan 06, 2019 4:06 pm
First Name: Jerry
Last Name: Van
Location: S.E. Michigan

Re: Interesting lines in radiator to block pipe

Post by Jerry VanOoteghem » Tue Jan 24, 2023 4:32 pm

TXGOAT2 wrote:
Tue Jan 24, 2023 12:15 pm
Mustard & Biscuits... mmmmmmm....
??? Is that supposed to be funny?


Joe Bell
Posts: 1174
Joined: Thu Feb 21, 2019 1:20 pm
First Name: Joe
Last Name: Bell
* REQUIRED* Type and Year of Model Ts owned: 24 Fordor
Location: Tiffin Ohio

Re: Interesting lines in radiator to block pipe

Post by Joe Bell » Tue Jan 24, 2023 6:29 pm

There was one of them in the Fordor years back, had a hole in the head and the other side water outlet, this tank was under the dash on passenger side.


TXGOAT2
Posts: 7391
Joined: Sun Feb 14, 2021 10:08 pm
First Name: Pat
Last Name: McNallen
* REQUIRED* Type and Year of Model Ts owned: 1926-7 roadster
Location: Graham, Texas
Board Member Since: 2021

Re: Interesting lines in radiator to block pipe

Post by TXGOAT2 » Tue Jan 24, 2023 6:54 pm

More pictures would be interesting.
Ford had good reasons not to use a tank cooling system.
If more cooling is actually needed, rather than radiator service, adding something like a heater core might be helpful. It would have to be plumbed the way the radiator is plumbed in order for the thermosyphon principle to function. Finding space for it would be a challenge.

Post Reply Previous topicNext topic
