Radiator Emblems

Post by JBog » Fri Feb 17, 2023 7:39 pm

Are radiator emblems safe to use? What's the best way to attach them?


JohnM
Posts: 700
Joined: Sun Mar 24, 2019 8:22 pm
First Name: John
Last Name: Michaelree
* REQUIRED* Type and Year of Model Ts owned: 1926 Touring 1927 Tudor
Location: st louis
Board Member Since: 2010

Re: Radiator Emblems

Post by JohnM » Fri Feb 17, 2023 8:31 pm

I have some wire art that I made for my T. I used copper wire around the tubes and twisted snug on the inside. I check them frequently to be sure they are not working loose. I have considered threading the wire through small rubber hoses to eliminate contact with the radiator tube. If It doesn't rattle and rub, ii should be ok.


DHort
Posts: 2826
Joined: Sun Jan 06, 2019 1:30 pm
First Name: Dave
Last Name: Hjortnaes
* REQUIRED* Type and Year of Model Ts owned: 24 Speedster, 20 touring
Location: Men Falls, WI

Re: Radiator Emblems

Post by DHort » Fri Feb 17, 2023 11:03 pm

Braze or solder some threaded brass rod to the emblem. Push it through the radiator. Have a bar on the back side, and use a pair of nuts to hold them in place.

User avatar

Steve Jelf
Posts: 7237
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
* REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
Location: Parkerfield, Kansas
Board Member Since: 2007
Contact:

Re: Radiator Emblems

Post by Steve Jelf » Fri Feb 17, 2023 11:13 pm

Dave's suggestion of threaded rods is best. Wire will eventually wear and break from vibration. Maybe you can guess how I know this. :)
The inevitable often happens.
1915 Runabout
1923 Touring

User avatar

vech
Posts: 94
Joined: Sun Jan 06, 2019 2:11 pm
First Name: Craig
Last Name: Vechorik
* REQUIRED* Type and Year of Model Ts owned: 1915 Touring, 1922 coupe
Location: Stugis, Mississippi

Re: Radiator Emblems

Post by vech » Sat Feb 18, 2023 8:54 am

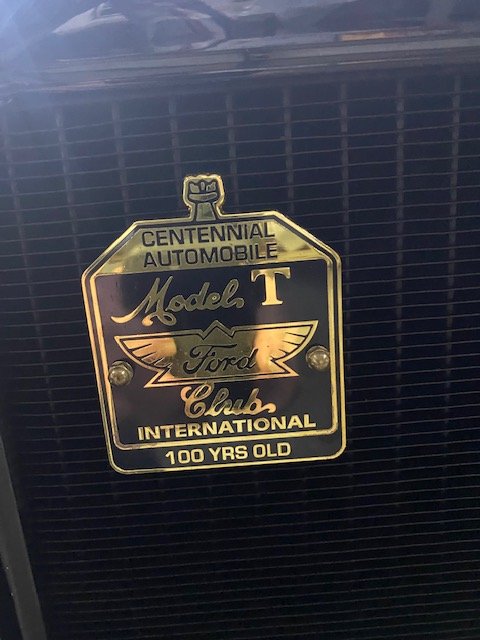

I used 2-56 all thread, which will pass through the fins easily with no damage to them. You can buy it from McMaster - Carr on line.
The part number is 98790A47 and it is a 1 foot long piece, for $7.26 The 2-56 nuts are readily available at any good hardware store.

I also made a backing plate out of a piece of flat brass stock, to spread the load out and not crush the radiator fins when tightened. Admittedly, it did bend the fins a little, from me carelessly over tightening the nuts.. :(
Next time around, (if there is ever a next time,) a drop of blue locktite on the threads and using only my bare hands to tighten them would be a better idea. Live and learn, as they say...
Attachments
"If a fly can, a flywheel" :shock:


TXGOAT2
Posts: 7391
Joined: Sun Feb 14, 2021 10:08 pm
First Name: Pat
Last Name: McNallen
* REQUIRED* Type and Year of Model Ts owned: 1926-7 roadster
Location: Graham, Texas
Board Member Since: 2021

Re: Radiator Emblems

Post by TXGOAT2 » Sat Feb 18, 2023 9:44 am

Anything attached to the radiator core, or located immediately in front of it, will obstruct airflow to some degree. I'd keep it to a minimum, especially if you operate in hot weather in traffic.

User avatar

Topic author
JBog
Posts: 287
Joined: Mon Jan 21, 2019 1:42 pm
First Name: Jason
Last Name: Bogstie
* REQUIRED* Type and Year of Model Ts owned: 1919 Touring
Location: Cheyenne, WY
Board Member Since: 2019
Contact:

Re: Radiator Emblems

Post by JBog » Sun Feb 19, 2023 12:45 am

Thanks! The pictures really helped.


Allan
Posts: 6609
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
* REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
Location: Gawler, Australia

Re: Radiator Emblems

Post by Allan » Sun Feb 19, 2023 9:00 pm

I use Craig's technique with one addition. I cut a backing piece of rubber from an old inner tube to back the inside plate. That way very liitle tension is needed on the nuts, and the load is more evenly distributed on the fins while cutting down on vibration. The same could be done behnd the emblem on the front of the core.

Allan from down under.
