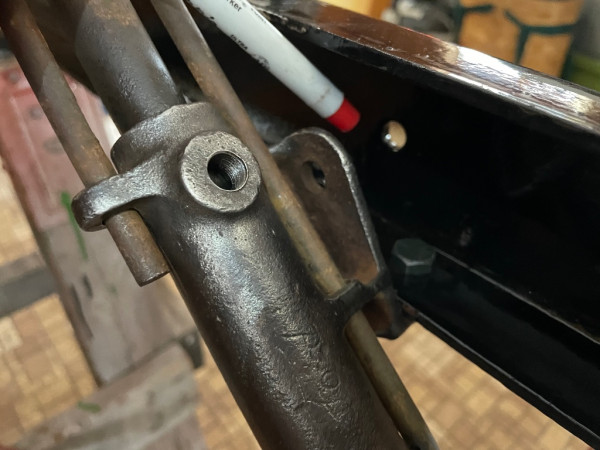

Looking at the steering gear bracket on my TT, It sure looks to me that the design intent was a spacer bushing between the bracket and the frame. One was not present on my TT nor is one shown in the price list of parts in the TT section. The actual bracket bears casting number TT932, which is Factory No.TT996 and Part No. 3539C St. Brkt with bushing - truck. The catalog sketch shows the hole.
Is a bushing present on any of the TT’s owned by forum members here? I wonder if the bushing transmitted frame flex to the steering gear and led to breaking or cracking that upright section of the steering gear and was, at some point eliminated?
TT Truck Steering Gear Bracket
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
BUSHMIKE
Topic author - Posts: 354
- Joined: Tue Nov 01, 2022 6:46 am
- First Name: Mike
- Last Name: Cushway
- * REQUIRED* Type and Year of Model Ts owned: 1925 TT, 1926 TT, 1926 TT
- Location: Trout Creek, MI
TT Truck Steering Gear Bracket
- Attachments
-
-
Dan Haynes
- Posts: 472
- Joined: Mon Jan 07, 2019 10:37 am
- First Name: Dan
- Last Name: Haynes
- * REQUIRED* Type and Year of Model Ts owned: several
- Location: Lodi, CA
Re: TT Truck Steering Gear Bracket
A block of wood goes in that gap.
"The further a society drifts from truth, the more it will hate those who speak it." -George Orwell
-
dobro1956
- Posts: 1413
- Joined: Sun Jan 06, 2019 10:13 pm
- First Name: Donnie
- Last Name: Brown
- * REQUIRED* Type and Year of Model Ts owned: 1927 Sport Touring, 1919 Speedster, 1914 Speedster, Wards tractor conversion, non starter 1926 Improved Touring
- Location: Hills of Arkansas
Re: TT Truck Steering Gear Bracket
..............
Last edited by dobro1956 on Wed Mar 08, 2023 11:05 pm, edited 1 time in total.
-
Moxie26
- Posts: 1863
- Joined: Sun Jan 06, 2019 8:20 pm
- First Name: Robert
- Last Name: Jablonski
- * REQUIRED* Type and Year of Model Ts owned: 1926 Runabout
- Location: New Jersey
- MTFCA Life Member: YES
- Board Member Since: 1999
Re: TT Truck Steering Gear Bracket
Mark posted the proper link for the steering bracket block. It's at the top of the page. The other items listed are what people purchased in association with that steering bracket block.
-
BUSHMIKE
Topic author - Posts: 354
- Joined: Tue Nov 01, 2022 6:46 am
- First Name: Mike
- Last Name: Cushway
- * REQUIRED* Type and Year of Model Ts owned: 1925 TT, 1926 TT, 1926 TT
- Location: Trout Creek, MI
Re: TT Truck Steering Gear Bracket
Thank you all for the answer!
-
A Whiteman
- Posts: 1125
- Joined: Sun Jan 06, 2019 3:36 pm
- First Name: Adrian
- Last Name: Whiteman
- * REQUIRED* Type and Year of Model Ts owned: 1926 TT, 1923 Colonial Roadster, 1924 'Bullnose' Morris, 1925 'Bullnose' Morris, 1936 JD AR
- Location: South Island, New Zealand
Re: TT Truck Steering Gear Bracket
Mike, you can figure out the size from the frame and bracket dimensions then make your own with some hardwood. Remember to chamfer the inner corners to fit the bend of the frame rail.
All the best.
All the best.
-
BUSHMIKE
Topic author - Posts: 354
- Joined: Tue Nov 01, 2022 6:46 am
- First Name: Mike
- Last Name: Cushway
- * REQUIRED* Type and Year of Model Ts owned: 1925 TT, 1926 TT, 1926 TT
- Location: Trout Creek, MI
Re: TT Truck Steering Gear Bracket
Thanx Adrian! Ive looked at 7 TT frames now that still have the firewall and steering attached. Not a one had the bolt that should be there even if the wood rotted away long ago.
-
Mark Nunn
- Posts: 1241
- Joined: Mon Jan 07, 2019 8:01 am
- First Name: Mark
- Last Name: Nunn
- * REQUIRED* Type and Year of Model Ts owned: 1926 Runabout
- Location: Bennington, NE
- Board Member Since: 2017
Re: TT Truck Steering Gear Bracket
You really do need a block there. The steering bracket/frame connection is too flexible and can induce death wobble without the extra support.
-
Original Smith
- Posts: 3699
- Joined: Tue Jan 08, 2019 10:43 am
- First Name: Larry
- Last Name: Smith
- * REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
- Location: Lomita, California
- MTFCA Life Member: YES
Re: TT Truck Steering Gear Bracket
There is also a cupped dust washer that goes on the end of the steering shaft before the nut.
-
TXGOAT2
- Posts: 7391
- Joined: Sun Feb 14, 2021 10:08 pm
- First Name: Pat
- Last Name: McNallen
- * REQUIRED* Type and Year of Model Ts owned: 1926-7 roadster
- Location: Graham, Texas
- Board Member Since: 2021
Re: TT Truck Steering Gear Bracket
It's important to use the hardwood block and all the original bolts. After running a new assembly a few dozen miles, re-check all fasteners and the pitman nut for tightness, then safety wire or install cotter pins where appropriate.
