Driveshaft question

Post by Steve Bender » Sat Apr 15, 2023 9:34 am

I picked up a driveshaft that has the original pinion set up with the sleeve and ballbearings set up just like stock. The other end has machine square end for U joint just like stock. The center section is much larger diameter. I can't see any markings. Was there any variation between years? Was there a run of old replacement that were larger diameter?
Top

RGould1910
Posts: 1128
Joined: Tue Jan 22, 2019 8:16 am
First Name: Richard
Last Name: Gould
* REQUIRED* Type and Year of Model Ts owned: 1910 touring, 1912 roadster , 1927 roadster
Location: Folsom, CA

Re: Driveshaft question

Post by RGould1910 » Sat Apr 15, 2023 10:38 am

Pretty much all driveshafts I've seen have been machined only at both ends and are consequently larger in between. Are you saying the one you have is significantly larger? I can't speak to that.
Top

Topic author
Steve Bender
Posts: 40
Joined: Sun Jan 06, 2019 4:29 pm
First Name: Steve
Last Name: Bender
* REQUIRED* Type and Year of Model Ts owned: 1923 auto polo car
Location: Sedgwick, KS

Re: Driveshaft question

Post by Steve Bender » Sat Apr 15, 2023 10:42 am

Compared to all the stock driveshafts that I have it is significantly larger diameter. I'll measure it when I get home.
Top

Jerry VanOoteghem
Posts: 4082
Joined: Sun Jan 06, 2019 4:06 pm
First Name: Jerry
Last Name: Van
Location: S.E. Michigan

Re: Driveshaft question

Post by Jerry VanOoteghem » Sat Apr 15, 2023 10:58 am

Probably an aftermarket replacement, not made by Ford. Look the Ford logo stamping. No stamp = not Ford. Some of the aftermarket examples are not well balanced and vibrate badly... or so I've read.
Top

Dan McEachern
Posts: 1400
Joined: Sun Jan 06, 2019 11:08 am
First Name: DAN
Last Name: MCEACHERN
* REQUIRED* Type and Year of Model Ts owned: too many. '14 touring, 2 depot hacks, 2 speedsters
Location: ALAMEDA,CA,USA

Re: Driveshaft question

Post by Dan McEachern » Sat Apr 15, 2023 3:21 pm

the FORD script is usually found on one side of the u-joint flat. Also, most FORD driveshafts have a Brinell hardness test indentation somewhere on the unmachined portion of the shaft.
Top

TrentB
Posts: 205
Joined: Wed Jan 09, 2019 12:19 am
First Name: Trent
Last Name: Boggess
Location: New Hampshire

Re: Driveshaft question

Post by TrentB » Sat Apr 15, 2023 5:39 pm

What Dan McEachern writes is generally true, however, relatively few Model T parts had the name “Ford” in script on them before March 19, 1919. After that date virtually all genuine parts had Ford script on them somewhere.

Respectfully Submitted,

Trent Boggess
Top

Moxie26
Posts: 1863
Joined: Sun Jan 06, 2019 8:20 pm
First Name: Robert
Last Name: Jablonski
* REQUIRED* Type and Year of Model Ts owned: 1926 Runabout
Location: New Jersey
MTFCA Life Member: YES
Board Member Since: 1999

Re: Driveshaft question

Post by Moxie26 » Mon Apr 17, 2023 7:37 pm

Steve, were you making reference to the drive shaft housing having a larger diameter then tapering down slightly at the front end? I have seen drive shaft housings like that but not sure on the manufacturer. A good friend's 1925 Touring had such driveshaft.
Top

Topic author
Steve Bender
Posts: 40
Joined: Sun Jan 06, 2019 4:29 pm
First Name: Steve
Last Name: Bender
* REQUIRED* Type and Year of Model Ts owned: 1923 auto polo car
Location: Sedgwick, KS

Re: Driveshaft question

Post by Steve Bender » Tue Apr 18, 2023 11:16 am

I was referring to the drive shaft not the housing that it rides in. It must be a replacement not original Ford. There is no Ford markings and no dot marks in the center. I believe the dot was a test for hardness ?
Top

speedytinc
Posts: 4725
Joined: Fri Feb 12, 2021 12:24 pm
First Name: john
Last Name: karvaly
* REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
Location: orange, ca
Board Member Since: 2020

Re: Driveshaft question

Post by speedytinc » Tue Apr 18, 2023 11:31 am

The hardness test spot is centered on a flat ground spot.
That flat grind spot is about 1-1.5" long & 3/16"wide with a dimple in the center.
Hard to miss if its there.
Top
User avatar

DanTreace
Posts: 3812
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
* REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
Location: North Central FL
Board Member Since: 2000
Contact:
Contact DanTreace

Re: Driveshaft question

Post by DanTreace » Tue Apr 18, 2023 11:52 am

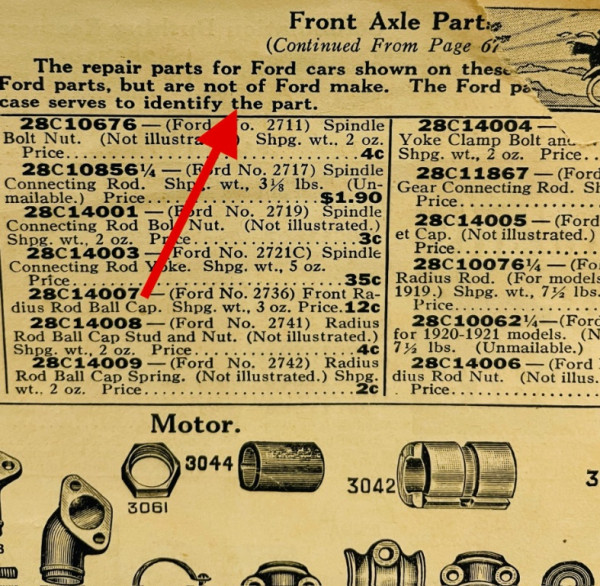

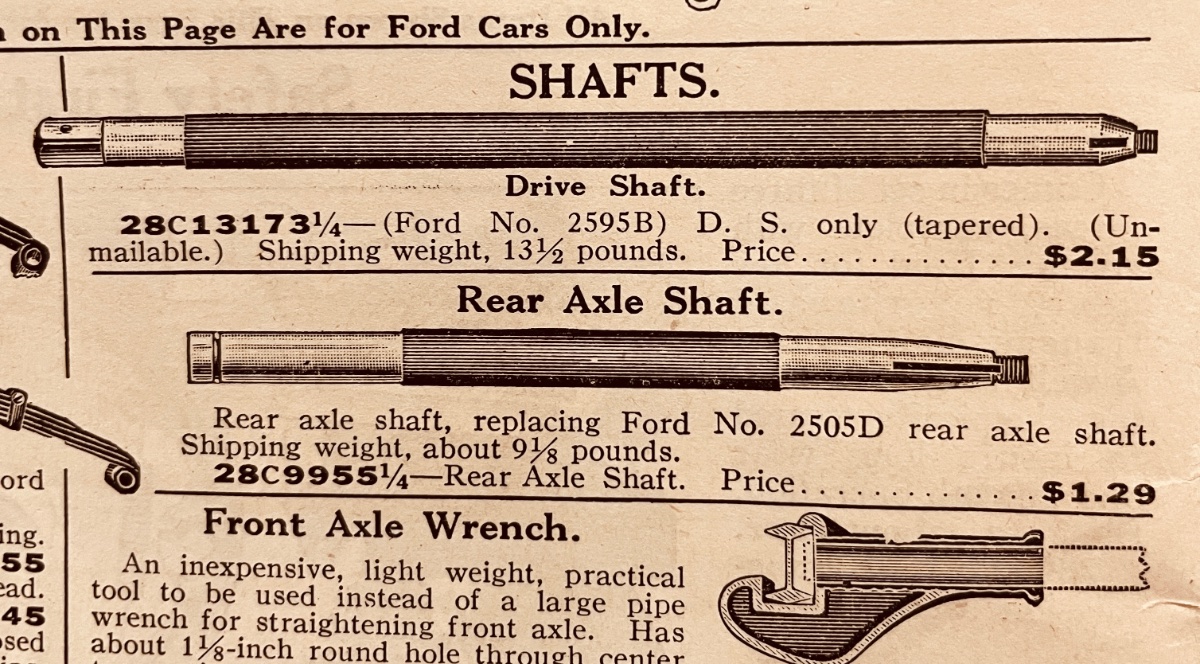

Spurious Parts :shock:

The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Top

Jerry VanOoteghem
Posts: 4082
Joined: Sun Jan 06, 2019 4:06 pm
First Name: Jerry
Last Name: Van
Location: S.E. Michigan

Re: Driveshaft question

Post by Jerry VanOoteghem » Tue Apr 18, 2023 11:55 am

DanTreace wrote: ↑
Tue Apr 18, 2023 11:52 am
 Spurious Parts :shock:
... Of dubious quality! ;)
