Fan Belt Adjustment on 27 Coupe

Discuss all things Model T related.
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
Post Reply Previous topicNext topic

Topic author
BLB27
Posts: 892
Joined: Thu Jul 23, 2020 9:28 pm
First Name: Bruce
Last Name: Brakke
* REQUIRED* Type and Year of Model Ts owned: 1927 coupe
Location: Ames, Iowa

Fan Belt Adjustment on 27 Coupe

Post by BLB27 » Tue Apr 11, 2023 11:17 pm

What tool is used to adjust the fan belt on 3004E fan bracket on the 1927 engine?
Top
User avatar

Humblej
Posts: 1957
Joined: Sun Jan 06, 2019 12:23 pm
First Name: Jeff
Last Name: Humble
* REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
Location: Charlevoix, Mi
Board Member Since: 2006

Re: Fan Belt Adjustment on 27 Coupe

Post by Humblej » Wed Apr 12, 2023 7:51 am

Bruce,
There were different styles of 26-27 fan hubs, I dont know what a 3004E is, mine has a square boss opposite the fan shaft stub, I can put a 1/2" or so wrench on the stub to rotate the hub. Do not tighten the fan belt tighter than you can rotate the fan blades by hand.
Top
User avatar

DanTreace
Posts: 3813
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
* REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
Location: North Central FL
Board Member Since: 2000
Contact:
Contact DanTreace

Re: Fan Belt Adjustment on 27 Coupe

Post by DanTreace » Wed Apr 12, 2023 8:08 am

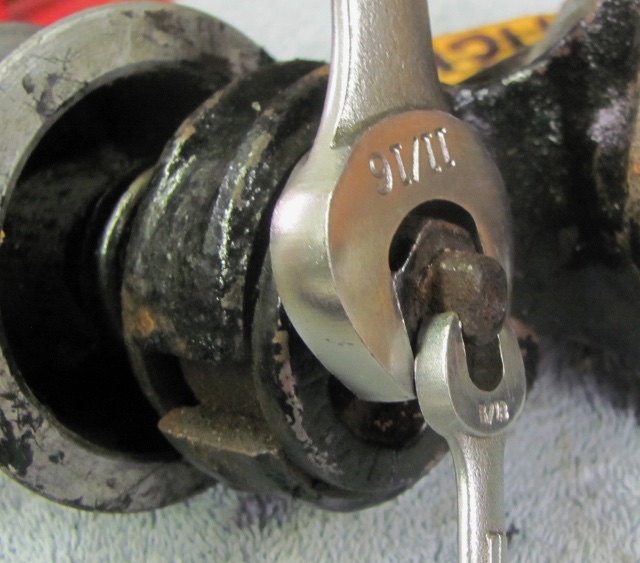

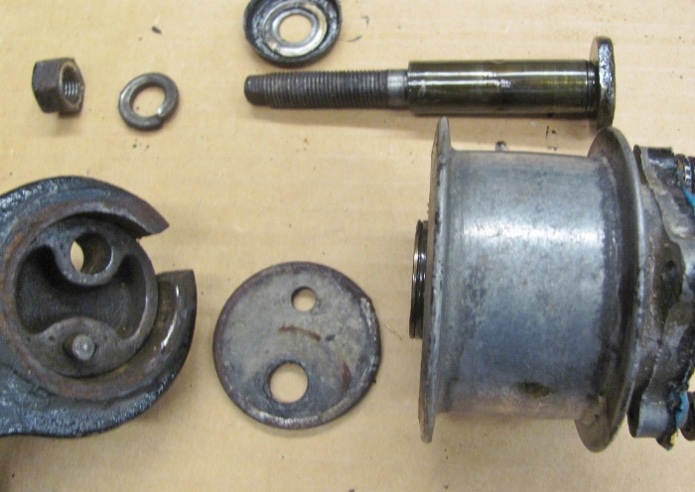

Use open end wrench to loosen the large hex lock nut with its lock washer. Hold the fan shaft tang end with smaller wrench to keep it in place. If that turns, the fan shaft gets loose in the fan pulley. Now, use a smaller wrench and spin/swing the eccentric tab to raise and lower, that tightens the fan belt. Turn the lock hex nut back in place to keep adjustment.

IMG_3665 (640x563).jpg
IMG_3820 (500x375).jpg
IMG_3820 (500x375).jpg (86.92 KiB) Viewed 823 times
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
