Engine blocks
I know the early T engines were left bare cast iron, but were the oil pans and hogs heads also left bare steel or were they painted?
-
Kerry
- Posts: 1447
- Joined: Mon Jan 07, 2019 2:42 pm
- First Name: Frank
- Last Name: van Ekeren
- * REQUIRED* Type and Year of Model Ts owned: 1916 touring, 1916 pick-up, 1924 coupe, 1926 touring, 1927 touring
- Location: Rosedale Vic Australia
Re: Engine blocks

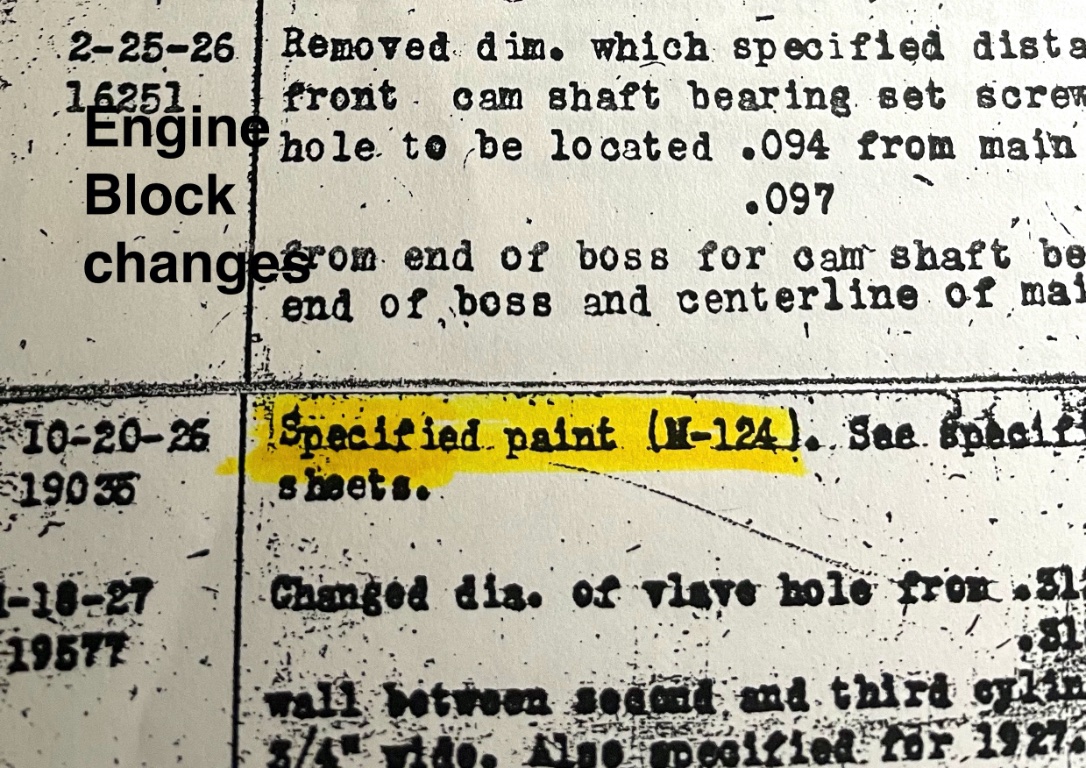

This was posted back in 2005
-
DanTreace
- Posts: 3813
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Engine blocks
Photographic records c.1914 show the engine iron block being given a black 'wash', M-142, thin coating, (the cylinder head appears already painted at the time of the block painting in this photo), the steel crankcase appears grey without the black wash. The alum. hogshead is as cast.
Engines assembled on the high rail line, note one on right is about to be painted on its upper parts.
Early engine installed, note the alum. hogshead.
Later engines c.1923 were black thin wash all over. A similar look can be made by using modern satin black engine paint.
Of course the late Improved Car (got that engine painted) in Green, flashy new color to try to beat Chev. outselling the Ford!
Engines assembled on the high rail line, note one on right is about to be painted on its upper parts.
Early engine installed, note the alum. hogshead.
Later engines c.1923 were black thin wash all over. A similar look can be made by using modern satin black engine paint.
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
John kuehn
- Posts: 4433
- Joined: Sun Jan 06, 2019 8:00 pm
- First Name: John
- Last Name: Kuehn
- * REQUIRED* Type and Year of Model Ts owned: 19 Roadster, 21 Touring, 24 Coupe
- Location: Texas
Re: Engine blocks
So were the replacement blocks painted ? When a dealership needed to replace a block did they get an unnumbered block?
I have a 2 valve chambered block that appears to have a number that was put on with a center punch. It doesn’t look like the engine number area was ground off to begin with and it was blank and then centered punch. It is a used block I acquired years ago in a bunch of T parts and have wondered about that.
I have a 2 valve chambered block that appears to have a number that was put on with a center punch. It doesn’t look like the engine number area was ground off to begin with and it was blank and then centered punch. It is a used block I acquired years ago in a bunch of T parts and have wondered about that.
-
Steve Jelf
- Posts: 7237
- Joined: Fri Jan 04, 2019 9:37 pm
- First Name: Steve
- Last Name: Jelf
- * REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
- Location: Parkerfield, Kansas
- Board Member Since: 2007
- Contact:
Re: Engine blocks
When a dealership needed to replace a block did they get an unnumbered block?
Yes. Assembled replacement engines had serial numbers, but bare replacement blocks did not. They were supposed to be stamped with the numbers of the presumably ruined blocks they replaced. That didn't always happen. Sometimes you see one marked with the user's own made-up ID.
The inevitable often happens.
1915 Runabout
1923 Touring
1915 Runabout
1923 Touring
-
hull 433
- Posts: 227
- Joined: Thu Mar 10, 2022 11:46 am
- First Name: Stan
- Last Name: Gadson
- * REQUIRED* Type and Year of Model Ts owned: 1915 touring
- Location: USA
Re: Engine blocks
Early crankcases were also unpainted. Some show finger marks from men handling the painted engine block.
It's interesting the exhaust manifold was painted with such, but the intake was not - maybe to keep slush from the carb, or in advance of the carb and intake manifold installation?
It's interesting the exhaust manifold was painted with such, but the intake was not - maybe to keep slush from the carb, or in advance of the carb and intake manifold installation?
- Attachments
-
-
-
Scott_Conger
- Posts: 6523
- Joined: Sun Jan 06, 2019 11:18 am
- First Name: Scott
- Last Name: Conger
- * REQUIRED* Type and Year of Model Ts owned: 1919
- Location: not near anywhere, WY
- Board Member Since: 2005
Re: Engine blocks
like the hog's head, the intake was aluminum
