Crankcase Clearance for MODEL A Rods

Post by got10carz » Sat Apr 29, 2023 10:36 pm

Does anyone have pictures of how they clearanced the crankcase for Model A crank and rods.


Kevin Pharis
Posts: 1562
Joined: Thu Jan 10, 2019 3:54 pm
First Name: Kevin
Last Name: Pharis
Location: Sacramento CA
Contact:

Re: Crankcase Clearance for MODEL A Rods

Post by Kevin Pharis » Sat Apr 29, 2023 10:55 pm

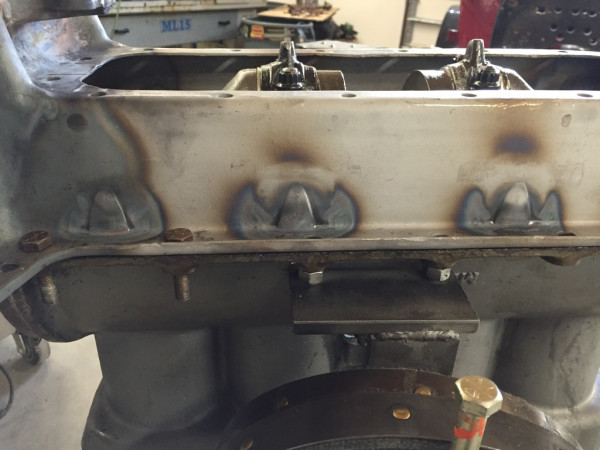

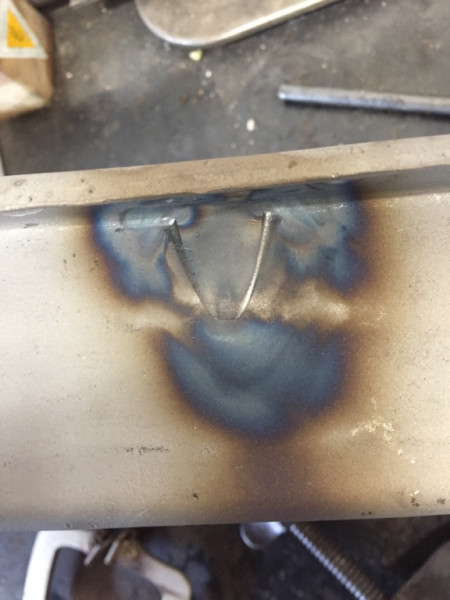

I’ve freehanded the dimples before… but carved a die for the last motor I did. Worked out very well! I also made up a hammer as no other hammer I owned or could find seemed to fit the shape I wanted. It was basically a piece of 1/2” round stock welded to the face of a hammer


Kevin Pharis
Posts: 1562
Joined: Thu Jan 10, 2019 3:54 pm
First Name: Kevin
Last Name: Pharis
Location: Sacramento CA
Contact:

Re: Crankcase Clearance for MODEL A Rods

Post by Kevin Pharis » Sat Apr 29, 2023 10:59 pm

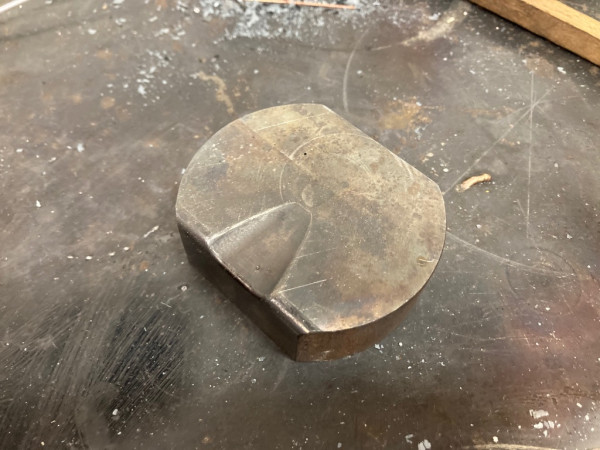

Here’s a pic of the die. Not sure where the hammer went tho…?🤔

A few vice grips to hold it tight, a bit of heat, and a bunch of carefully placed hammer strikes formed the pan into the die


Topic author
got10carz
Posts: 552
Joined: Sun Jan 06, 2019 6:37 pm
First Name: Steve
Last Name: Meixner
* REQUIRED* Type and Year of Model Ts owned: 1911,13,14,19,23,25,26,27
Location: Moorhead MN

Re: Crankcase Clearance for MODEL A Rods

Post by got10carz » Sun Apr 30, 2023 8:38 am

Kevin, in your first picture, on both side of the dimple, there appears to be a weld. Did you slice the pan first?


Kevin Pharis
Posts: 1562
Joined: Thu Jan 10, 2019 3:54 pm
First Name: Kevin
Last Name: Pharis
Location: Sacramento CA
Contact:

Re: Crankcase Clearance for MODEL A Rods

Post by Kevin Pharis » Sun Apr 30, 2023 10:05 am

Nope! Only heat and hammer on this pan. The die gave sumpin like 1/8”-3/16” of clearance (it’s been a while), but the 12 point nuts are the real secret. If you use the stock hex nuts you have to make the dimple much larger.


Dan McEachern
Posts: 1402
Joined: Sun Jan 06, 2019 11:08 am
First Name: DAN
Last Name: MCEACHERN
* REQUIRED* Type and Year of Model Ts owned: too many. '14 touring, 2 depot hacks, 2 speedsters
Location: ALAMEDA,CA,USA

Re: Crankcase Clearance for MODEL A Rods

Post by Dan McEachern » Sun Apr 30, 2023 11:43 am

As Kevin said, use ARP 12 points nuts- they give you a lot more clearance. I like to horizontally split the pan wall with a small diameter cutoff wheel in a die grinder before forming the dimples as I've found the pan distorts less from the dimpling operation. Either way works, but with the split wall, the pan rail surface does not distort as much.
