John Reagan’s Wheel Press: Link is broken

Post by Tom Dove Jr » Fri May 05, 2023 11:38 am

Does anyone know of a new link for the John Reagan Wheel Press?

The domain used to share the drawings/instructions is no longer active ... it is for sale.

Thanks!

Tom
=====
I have never let my schooling interfere with my education.
Education consists mainly of what we have unlearned.
Top
User avatar

Steve Jelf
Posts: 7237
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
* REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
Location: Parkerfield, Kansas
Board Member Since: 2007
Contact:
Contact Steve Jelf

Re: John Reagan’s Wheel Press: Link is broken

Post by Steve Jelf » Fri May 05, 2023 12:08 pm

That means the link on my website is defunct too. I'll post the plans there instead of the link.
The inevitable often happens.
1915 Runabout
1923 Touring
Top
User avatar

jsaylor
Posts: 411
Joined: Sun Jan 06, 2019 5:25 pm
First Name: John
Last Name: Saylor
* REQUIRED* Type and Year of Model Ts owned: 1921 Touring, 1927 Tudor
Location: Citrus Heights, Ca
Board Member Since: 1999

Re: John Reagan’s Wheel Press: Link is broken

Post by jsaylor » Fri May 05, 2023 12:11 pm

Tom, run a Google search - Regan Wheel Press mtfca - you will get several links on the topic.
Top
User avatar

CudaMan
Posts: 2531
Joined: Fri Jan 04, 2019 4:17 pm
First Name: Mark
Last Name: Strange
* REQUIRED* Type and Year of Model Ts owned: 1924 Cut Off Touring (now a pickup)
Location: Hillsboro, MO
Board Member Since: 2013

Re: John Reagan’s Wheel Press: Link is broken

Post by CudaMan » Fri May 05, 2023 1:34 pm

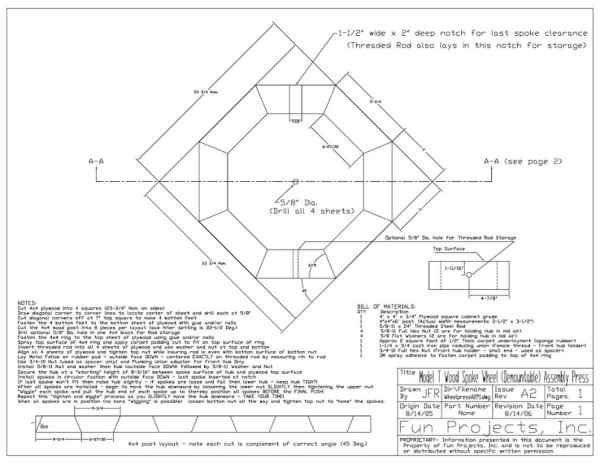

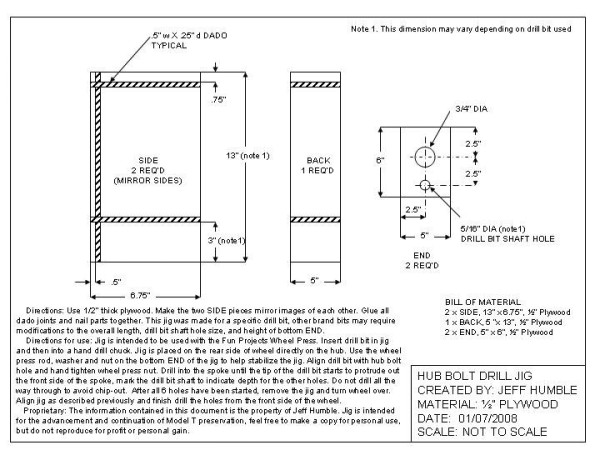

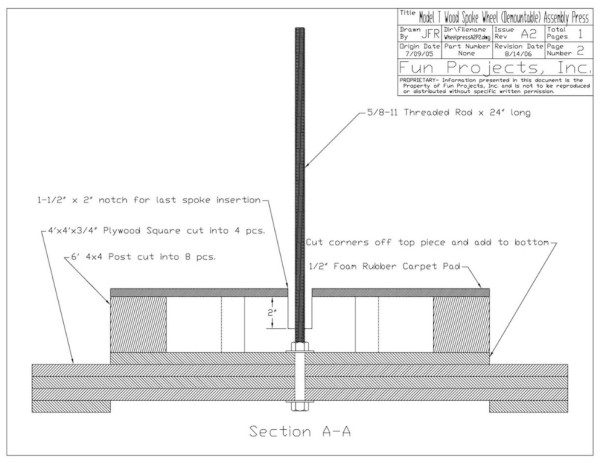

Here is the drawing in a .pdf file, as well as a drawing of a hub bolt hole drilling jig:
Attachments
WheelpressA2.pdf
(105.02 KiB) Downloaded 63 times
Mark Strange
Hillsboro, MO
1924 Cut-off Touring (now a pickup)
Top
User avatar

TRDxB2
Posts: 6260
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
* REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
Location: Moline IL
Board Member Since: 2018

Re: John Reagan’s Wheel Press: Link is broken

Post by TRDxB2 » Fri May 05, 2023 4:32 pm

Tom Dove Jr wrote: ↑
Fri May 05, 2023 11:38 am
 Does anyone know of a new link for the John Reagan Wheel Press?

The domain used to share the drawings/instructions is no longer active ... it is for sale.

Thanks!

Tom
=====

The Funprojects web site no longer exists. Not sure what link your referencing
I had posted al the technical documents that were there in the forum https://mtfca.com/phpBB3/viewtopic.php? ... ts#p277807
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Top

Topic author
Tom Dove Jr
Posts: 64
Joined: Fri Jul 22, 2022 11:58 am
First Name: Tom
Last Name: Dove
* REQUIRED* Type and Year of Model Ts owned: 1925 Touring, 1925 parts car(?)
Location: Elk Grove, CA (NorCal)
Board Member Since: 2022

Re: John Reagan’s Wheel Press: Link is broken

Post by Tom Dove Jr » Sat May 06, 2023 7:54 am

Thank you, everyone!!
====
I have never let my schooling interfere with my education.
Education consists mainly of what we have unlearned.
Top

jiminbartow
Posts: 2433
Joined: Sun Jan 06, 2019 10:55 pm
First Name: James
Last Name: Patrick
* REQUIRED* Type and Year of Model Ts owned: 1926 Coupe
Location: Bartow, FL
Board Member Since: 2001

Re: John Reagan’s Wheel Press: Link is broken

Post by jiminbartow » Sat May 06, 2023 10:01 am

How about this. I believe these drawings are also posted in the drawings section of the MTFCA encyclopedia. Jim Patrick

Top

Topic author
Tom Dove Jr
Posts: 64
Joined: Fri Jul 22, 2022 11:58 am
First Name: Tom
Last Name: Dove
* REQUIRED* Type and Year of Model Ts owned: 1925 Touring, 1925 parts car(?)
Location: Elk Grove, CA (NorCal)
Board Member Since: 2022

Re: John Reagan’s Wheel Press: Link is broken

Post by Tom Dove Jr » Sat May 06, 2023 2:06 pm

This is all GREAT help!

I have acquired 3 complete sets of wheels over time so I'll tear down, clean up, and re-use what is usable and toss the rest.

Tom
=====
