At long last I respoked my wheels today. It went pretty smoothly. I need to peen the nuts and do a little paint touch up. The jig I made for drilling the holes straight worked perfectly.
I am sure that a set done by a professional would be nicer, but I am proud of them. Once they go back on, and I adjust the brakes, my 22 will be back on the road. I did the job in the family room as I can hardly get around the shop with the 22 up on jacks.
By the way, is there a recommended torque for the flange bolts?
I did my wheels today
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Reno Speedster
Topic author - Posts: 573
- Joined: Tue May 26, 2020 6:23 pm
- First Name: Morgan
- Last Name: Blanchard
- * REQUIRED* Type and Year of Model Ts owned: 1926 Model T Speedster Project, 1922 Runabout Pickup
- Location: Anchorage, Alaska
I did my wheels today
- Attachments
-

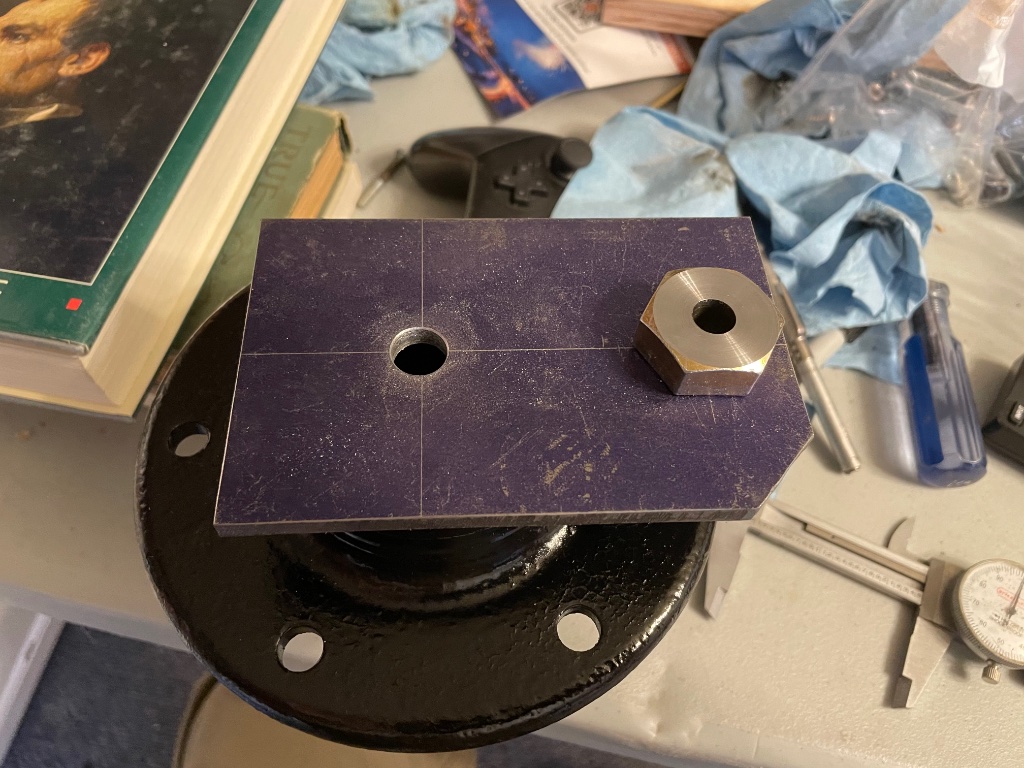

- The jig was a pice of scrap plate with a 3/4 in bolt bored through with a 3/8 hole on the lathe.
-
- All the bits ready to go (still needed some carpet on the press).
-
- The rears
-
- The first one in progress
-
- The fronts
-
Reno Speedster
Topic author - Posts: 573
- Joined: Tue May 26, 2020 6:23 pm
- First Name: Morgan
- Last Name: Blanchard
- * REQUIRED* Type and Year of Model Ts owned: 1926 Model T Speedster Project, 1922 Runabout Pickup
- Location: Anchorage, Alaska
Re: I did my wheels today
Another angle of the drilling jig. It was held on by a 7 inch long 1/2 bolt through the hub.
- Attachments
-
-
CudaMan
- Posts: 2531
- Joined: Fri Jan 04, 2019 4:17 pm
- First Name: Mark
- Last Name: Strange
- * REQUIRED* Type and Year of Model Ts owned: 1924 Cut Off Touring (now a pickup)
- Location: Hillsboro, MO
- Board Member Since: 2013
Re: I did my wheels today
Congratulations, nice work!
Mark Strange
Hillsboro, MO
1924 Cut-off Touring (now a pickup)
Hillsboro, MO
1924 Cut-off Touring (now a pickup)
-
Rich Eagle
- Posts: 6895
- Joined: Fri Jan 04, 2019 10:51 am
- First Name: Richard
- Last Name: Eagle
- * REQUIRED* Type and Year of Model Ts owned: 1909 TR 1914 TR 1915 Rd 1920 Spdstr 1922 Coupe 1925 Tudor
- Location: Idaho Falls, ID
Re: I did my wheels today
Thanks for stepping us through it. I always learn from these things.
I suppose you are now a spokesman.
It's always nice to see others work.
Rich
I suppose you are now a spokesman.
It's always nice to see others work.
Rich
When did I do that?
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: I did my wheels today
The nuts should be tight, but not enough to distort the flange plate. Be prepared to tighten and re-peen them a couple of times more, once they have been run for a while. Nice work. Don't you just love it when something you have never done before turns out so nicely!
Allan from down under.
Allan from down under.
-
Art M
- Posts: 964
- Joined: Wed Jun 19, 2019 12:57 pm
- First Name: Art
- Last Name: Mirtes
- * REQUIRED* Type and Year of Model Ts owned: 1923 Touring
- Location: Huron, Ohio
- Board Member Since: 2016
Re: I did my wheels today
My opinion and calculations show that the torque should be 40 ft lb based on wood crush strength, nut friction, clamp area, and size of bolt. The threads and nut face must be clean and dry. No lubricant
Other wise, follow previous tightening procedures
Art Mirtes
Other wise, follow previous tightening procedures
Art Mirtes
