I need some help identifying year of Radiator. I believe to be between 1914-1916 based on what the encyclopedia says and various other posts.
I dont know how to ready the data tag on the back, not sure the numbers mean anything ? Looking to use on my Power Unit project. After re-core of course.
Thanks in advance.
Identify radiator year
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
ModelTED
Topic author - Posts: 60
- Joined: Sat Sep 21, 2019 10:18 pm
- First Name: Ted
- Last Name: Hacker
- * REQUIRED* Type and Year of Model Ts owned: 1922 Roadster - 1923 Huckster - 1924 Truck
- Location: Cincinnati, Ohio
Identify radiator year
- Attachments
-
-
-
-
-
Steve Jelf
- Posts: 7237
- Joined: Fri Jan 04, 2019 9:37 pm
- First Name: Steve
- Last Name: Jelf
- * REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
- Location: Parkerfield, Kansas
- Board Member Since: 2007
- Contact:
Re: Identify radiator year
There's no tube for gas headlights, so it's not 1914. 1915 or 1916? I don't think there's any difference.
The inevitable often happens.
1915 Runabout
1923 Touring
1915 Runabout
1923 Touring
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: Identify radiator year
Somewhere in the time line the neck was riveted as well as soldered, the rivets coming later in production.
Allan from down under.
Allan from down under.
-
ModelTED
Topic author - Posts: 60
- Joined: Sat Sep 21, 2019 10:18 pm
- First Name: Ted
- Last Name: Hacker
- * REQUIRED* Type and Year of Model Ts owned: 1922 Roadster - 1923 Huckster - 1924 Truck
- Location: Cincinnati, Ohio
Re: Identify radiator year
Guys,
Thanks for the replies.
1) No gas tube - I noticed that but not knowing what to look for, I did notice the two holes in the side trim. Is that where the tube would go or is that for the electric wires to pass through?
2) rivets / solder - Attached is a close up of the neck. Does this help?
Thanks for the replies.
1) No gas tube - I noticed that but not knowing what to look for, I did notice the two holes in the side trim. Is that where the tube would go or is that for the electric wires to pass through?
2) rivets / solder - Attached is a close up of the neck. Does this help?
- Attachments
-
- neck.jpg (110.36 KiB) Viewed 1561 times
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: Identify radiator year
The rivets put it at the end of brass radiator production. How close to the end I do not know. I was told my 1915 tourer should have them, but not my 1912 van.
Allan from down under.
Allan from down under.
-
Kerry
- Posts: 1447
- Joined: Mon Jan 07, 2019 2:42 pm
- First Name: Frank
- Last Name: van Ekeren
- * REQUIRED* Type and Year of Model Ts owned: 1916 touring, 1916 pick-up, 1924 coupe, 1926 touring, 1927 touring
- Location: Rosedale Vic Australia
Re: Identify radiator year
According to the encyclopedia, the drawings to indicate the rivets for filler neck, was October 1911.
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: Identify radiator year
I hope you are correct Frank. The neck I had for my van was drilled for rivets, so I used it when assembling the radiator onto an original new old stock core.
Allan from down under.
Allan from down under.
-
FordFool
- Posts: 168
- Joined: Mon Jan 28, 2019 4:49 pm
- First Name: Don
- Last Name: Kirtley
- * REQUIRED* Type and Year of Model Ts owned: 13 and 16 touring, 18 and 20 coup, 20 tudor
- Location: Devore, CA
- Board Member Since: 2009
Re: Identify radiator year
15/16 had a tube for the left head lite.
-
Original Smith
- Posts: 3699
- Joined: Tue Jan 08, 2019 10:43 am
- First Name: Larry
- Last Name: Smith
- * REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
- Location: Lomita, California
- MTFCA Life Member: YES
Re: Identify radiator year

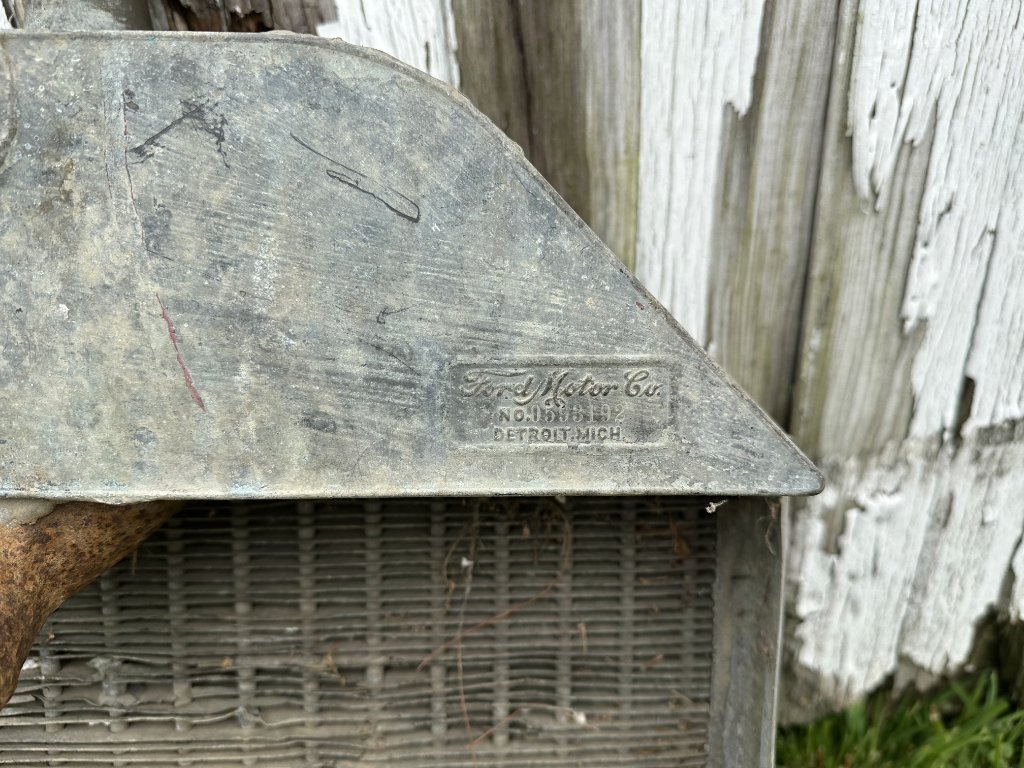

It is most likely a mid to late '14. I haven't seen a '14 with the stamped serial plate that low yet. They moved it up around 1915.
-
ModelTED
Topic author - Posts: 60
- Joined: Sat Sep 21, 2019 10:18 pm
- First Name: Ted
- Last Name: Hacker
- * REQUIRED* Type and Year of Model Ts owned: 1922 Roadster - 1923 Huckster - 1924 Truck
- Location: Cincinnati, Ohio
Re: Identify radiator year

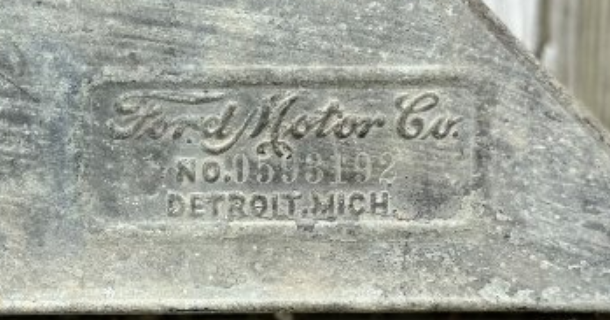

do the numbers in the serial plate mean anything? Do they match the serial number of the engine? If so this would make it Oct. 1914?
- Attachments
-
-
TWrenn
- Posts: 3743
- Joined: Sun Jan 06, 2019 10:53 am
- First Name: Tim
- Last Name: Wrenn
- * REQUIRED* Type and Year of Model Ts owned: '13 Touring, '26 "Overlap" Fordor
- Location: Ohio
- Board Member Since: 2019
Re: Identify radiator year
No they have nothing to do witj the engine number. Not all rads were even made by Ford. I believe these are specific to the maker of the radiator.
-
Steve Jelf
- Posts: 7237
- Joined: Fri Jan 04, 2019 9:37 pm
- First Name: Steve
- Last Name: Jelf
- * REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
- Location: Parkerfield, Kansas
- Board Member Since: 2007
- Contact:
Re: Identify radiator year
Not all rads were even made by Ford.
True for early years. By the end of 1912 all were made by Ford.
