Camshaft flange 3rd hole question

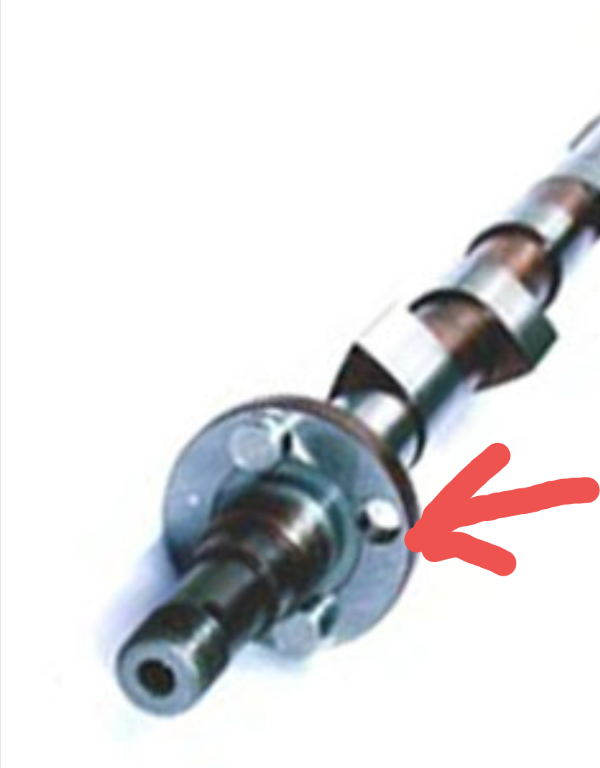

What is the intended purpose of the third hole in the camshaft flange and does it's orientation matter in the timing of the large timing gear to small timing gear?[image][/image]
- Attachments
-
-
Mark Gregush
- Posts: 5370
- Joined: Sat Jan 05, 2019 1:57 pm
- First Name: Mark
- Last Name: Gregush
- * REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1948 F2 Ford flat head 6 pickup 3 speed
- Location: Portland Or
- Board Member Since: 1999
Re: Camshaft flange 3rd hole question
Think it was for indexing when doing the machining. It has no function but to make people ask why it is there. The cam gear does not care where it is installed as long as the two timing marks line up when the cam is installed, the gear is not indexed to the cam shaft.
