Steering Gear Case Plating
Now that I have my steering gear case and control arms separated, I found pitting in the cover and control arms. Is this something that can be smoothed out by a nickel plating company or should I look for an un-pitted set. The gear case is brass so there is no problem with that. Also, I need any recommendations as to who does a good job of nickel plating. Thank you for the help.
-
DanTreace
- Posts: 3813
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Steering Gear Case Plating
Imagine you can find a good plater in any large city nearby, check websites, see if they do customs cars, rods and stuff, and call and ask.
Locally nearest bigger town is Daytona, and with all the auto stuff there, some good shops. Last sets of steering cases and caps were done by Spacecoast Plating. Top notch work, only couple of weeks too. Good email contact, was able to get quote over the net by sending them pictures.

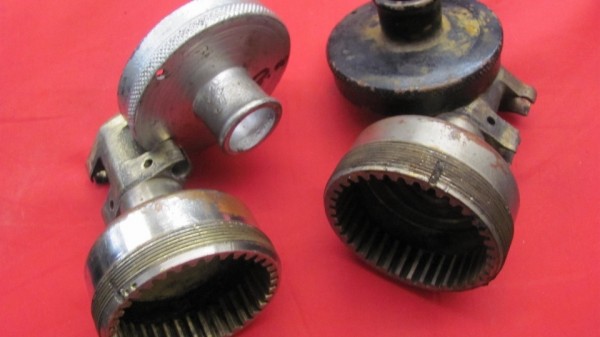

What was sent....

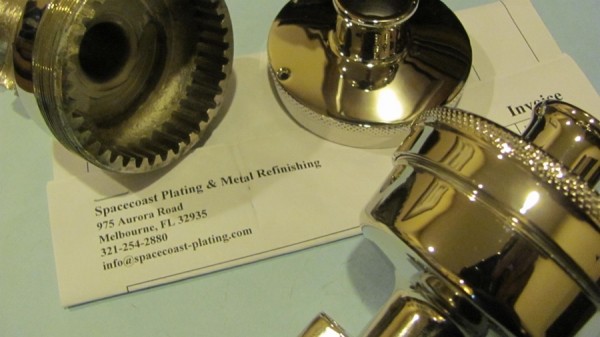

What was received....
Locally nearest bigger town is Daytona, and with all the auto stuff there, some good shops. Last sets of steering cases and caps were done by Spacecoast Plating. Top notch work, only couple of weeks too. Good email contact, was able to get quote over the net by sending them pictures.
What was sent....
What was received....
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
otrcman
- Posts: 366
- Joined: Sun Jan 06, 2019 2:25 pm
- First Name: Dick
- Last Name: Fischer
- * REQUIRED* Type and Year of Model Ts owned: 1912 Touring
- Location: Arroyo Grande, CA
Re: Steering Gear Case Plating
Daniel,
The short answer is YES, the pitting can be repaired. The basic process is that the pits are filled with ordinary solder, the solder fill is filed and sanded smooth, then copper plated, polished, and finally, nickeled. Think of the solder as bondo for body work.
You can either do the pit filling and smoothing yourself, or pay a good plating shop. It's only money.
The short answer is YES, the pitting can be repaired. The basic process is that the pits are filled with ordinary solder, the solder fill is filed and sanded smooth, then copper plated, polished, and finally, nickeled. Think of the solder as bondo for body work.
You can either do the pit filling and smoothing yourself, or pay a good plating shop. It's only money.
-
SurveyKing
Topic author - Posts: 504
- Joined: Thu Jan 10, 2019 8:36 am
- First Name: Daniel
- Last Name: Snell
- * REQUIRED* Type and Year of Model Ts owned: 1909 Touring, 1924 Touring, 1925 Roadster Pickup, 1921 Touring
- Location: Boerne, Texas
- Board Member Since: 2014
Re: Steering Gear Case Plating
Dan they did a great job for you there. Was there any pitting?
Daniel
Daniel
-
DanTreace
- Posts: 3813
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Steering Gear Case Plating
Daniel
They filled all the pits with undercoat plating of copper and then high polish before the layer of nickel.
If you look at the top photo, before parts, Click in and zoom the photo up, and see the neck of the silver painted cap, you can see deep pits. Those were not visible after plating. That painted cap was a $2 swap item, now looks NOS.
You have to determine how fine a job you want. Now if your parts are very heavy pitted, I mean ugly, you may want to find something better.
Quality plating costs $$.
They filled all the pits with undercoat plating of copper and then high polish before the layer of nickel.
If you look at the top photo, before parts, Click in and zoom the photo up, and see the neck of the silver painted cap, you can see deep pits. Those were not visible after plating. That painted cap was a $2 swap item, now looks NOS.
You have to determine how fine a job you want. Now if your parts are very heavy pitted, I mean ugly, you may want to find something better.
Quality plating costs $$.
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: Steering Gear Case Plating
Dick is correct about using soft solder to fill pits, and it would work well on control levers. However, on flat sheetmetal like a radiator shell, the metal polisher needs to know it has been used. The heat generated by the buff on a wide flat surface is enough to 'pull' soft solder, and a well finished surface can show the pits again, though not as deep. Don't ask me how I know this.
Allan from down under.
Allan from down under.
-
Nv Bob
- Posts: 799
- Joined: Mon Jan 07, 2019 11:04 pm
- First Name: Bob
- Last Name: Middleton
- * REQUIRED* Type and Year of Model Ts owned: 18 roadster 1810 brand X
- Location: Western nv
Re: Steering Gear Case Plating
Surveying
Cant find a shop drop me a note my plater here is old school and will listen and follow my instructions
Got alot of guys in central California giving my stuff
And comes back impressive
Cant find a shop drop me a note my plater here is old school and will listen and follow my instructions
Got alot of guys in central California giving my stuff
And comes back impressive
