1927 Touring rear blocks-bolt size

Post by Brent Mize » Tue Jul 11, 2023 11:18 am

Hi guys,
I’m trying to figure out what size and type of bolts are used for the rear upright blocks at the far rear of my 27 touring.
These suit upright on the ends of the spring cross member.
The blocks are drill straight through. My painter last my originals and I’m trying to determine what I need.
The blocks are shown below.
Any help would be appreciated.
Thanks!
Brent
Top
User avatar

DanTreace
Posts: 3812
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
* REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
Location: North Central FL
Board Member Since: 2000
Contact:
Contact DanTreace

Re: 1927 Touring rear blocks-bolt size

Post by DanTreace » Tue Jul 11, 2023 1:55 pm

Brent

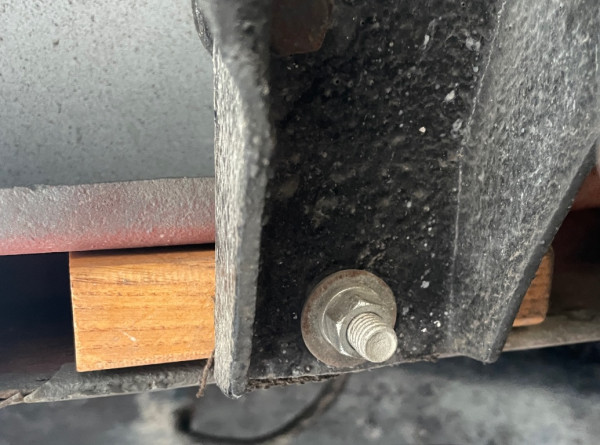

3/8” x 16 thrd. X 3 1/2” L worked for my ‘27 touring. Used flat washers and lock washer too.

The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Top

Topic author
Brent Mize
Posts: 255
Joined: Sun Jan 06, 2019 12:36 pm
First Name: Brent
Last Name: Mize
* REQUIRED* Type and Year of Model Ts owned: 1927 Sport Touring & 1927 Sport Runabout
Location: Reynoldsburg, Oh

Re: 1927 Touring rear blocks-bolt size

Post by Brent Mize » Tue Jul 11, 2023 3:53 pm

Thanks as always Dan!
Top
User avatar

DanTreace
Posts: 3812
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
* REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
Location: North Central FL
Board Member Since: 2000
Contact:
Contact DanTreace

Re: 1927 Touring rear blocks-bolt size

Post by DanTreace » Tue Jul 11, 2023 6:07 pm

Sure Brent

Did find Ford Factory # T-8120 for 1926-27 'Bolt, Rear Body Bracket , Short', 5/16" x 18 x 2 3/4" L



Would have been size I used too, as those frame rear side brackets have a big hole :)

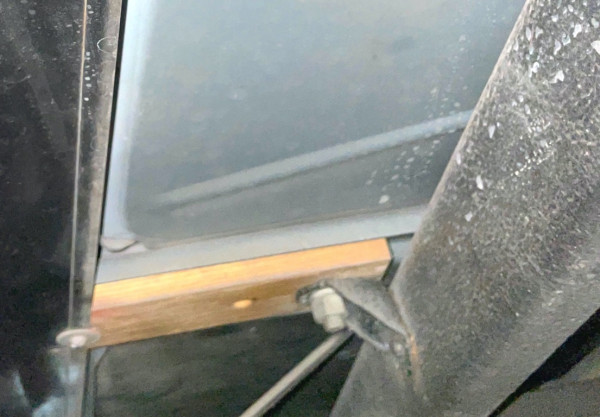

rear side body bracket 26 27.jpeg
