1924 radiator splash apron
Can someone explain the order the radiator/apron, shell are assembled on a 24? The apron I have has the side tabs intact that one of the three fender support bolt goes thru. Thanks, Art
-
CudaMan
- Posts: 2531
- Joined: Fri Jan 04, 2019 4:17 pm
- First Name: Mark
- Last Name: Strange
- * REQUIRED* Type and Year of Model Ts owned: 1924 Cut Off Touring (now a pickup)
- Location: Hillsboro, MO
- Board Member Since: 2013
Re: 1924 radiator splash apron

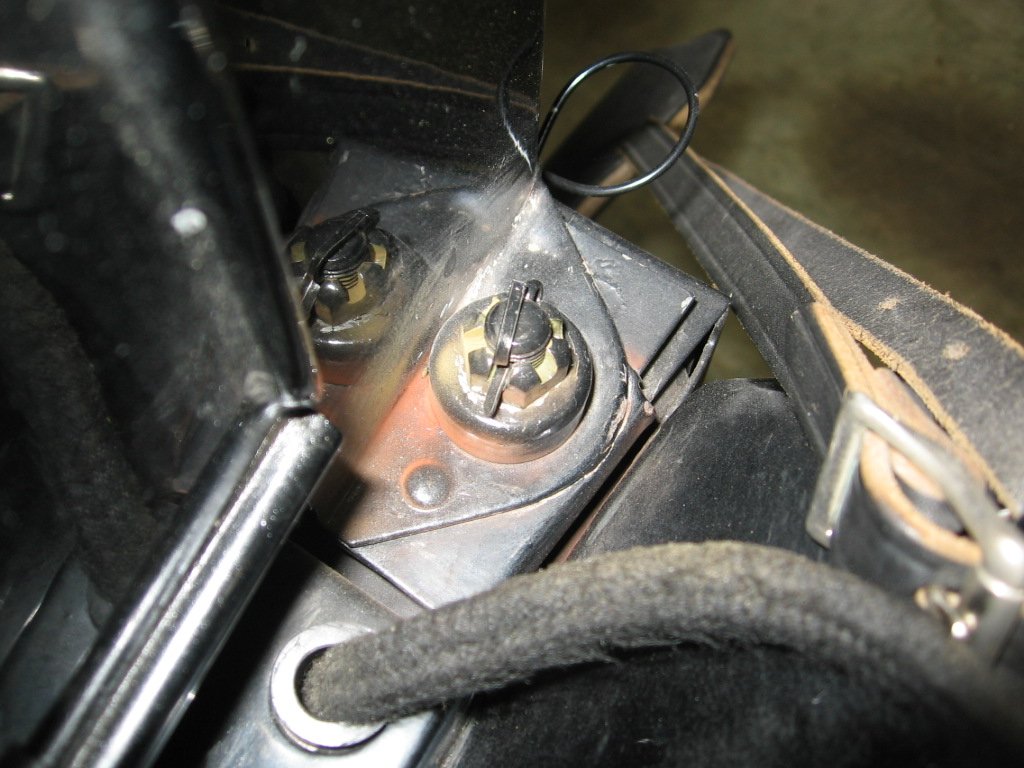

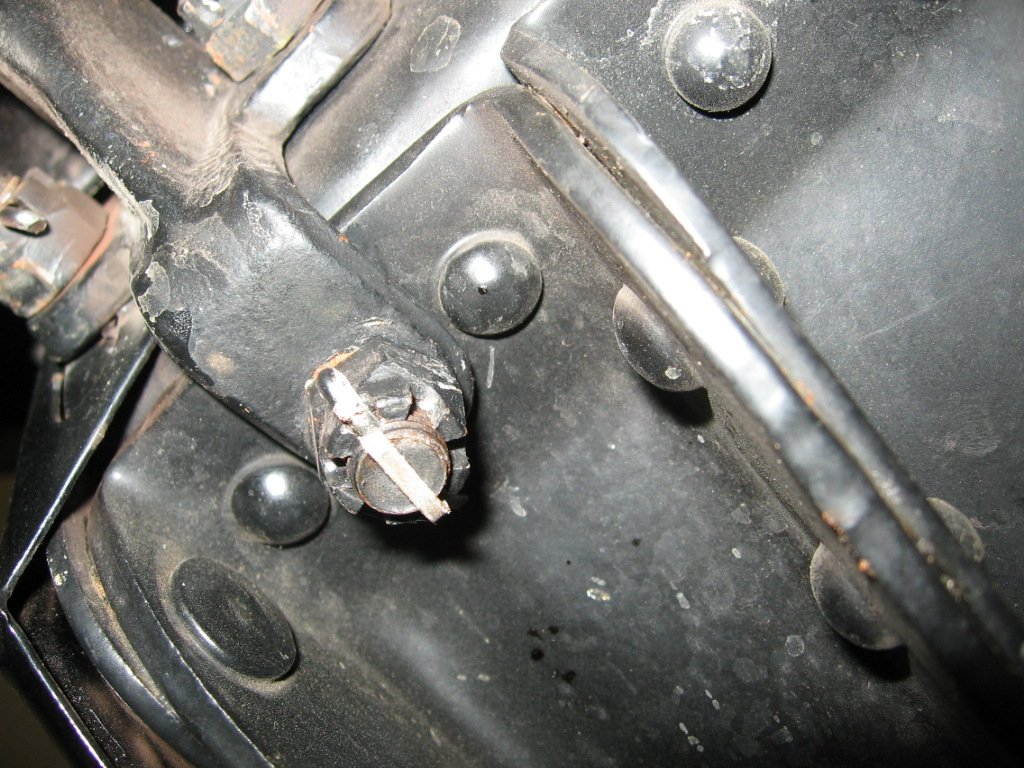

Here are some photos I just took of my 1924, are they of any help?
- Attachments
-
-
-
Mark Strange
Hillsboro, MO
1924 Cut-off Touring (now a pickup)
Hillsboro, MO
1924 Cut-off Touring (now a pickup)
-
TRDxB2
- Posts: 6260
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: 1924 radiator splash apron

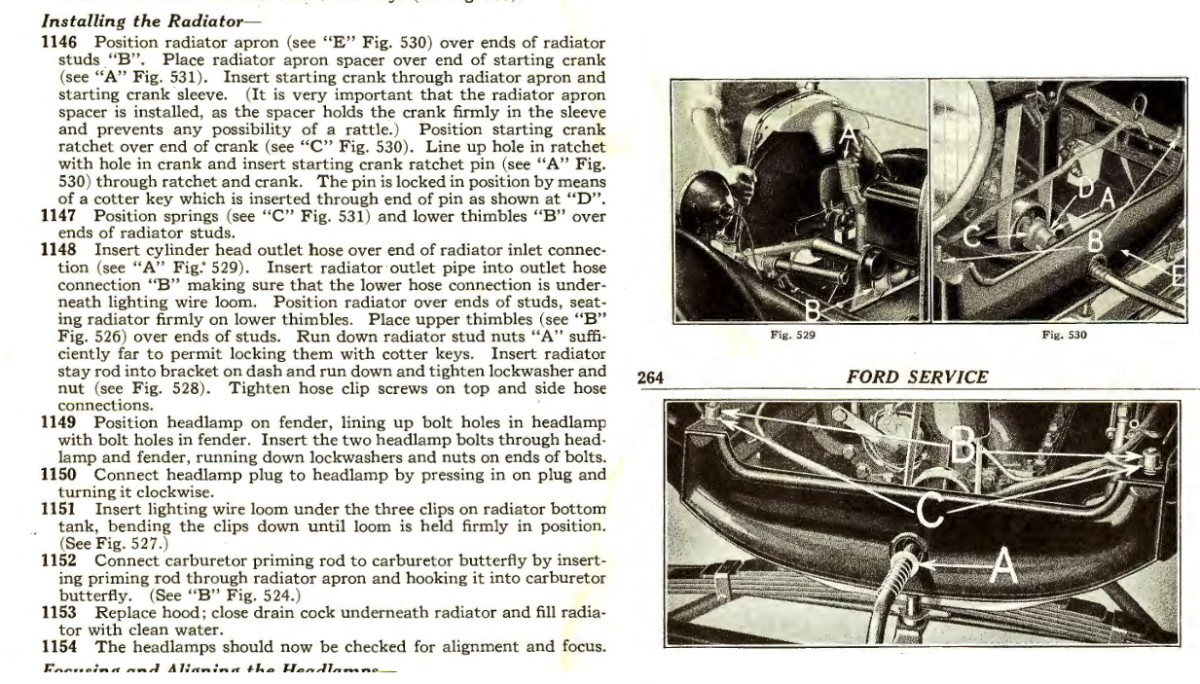

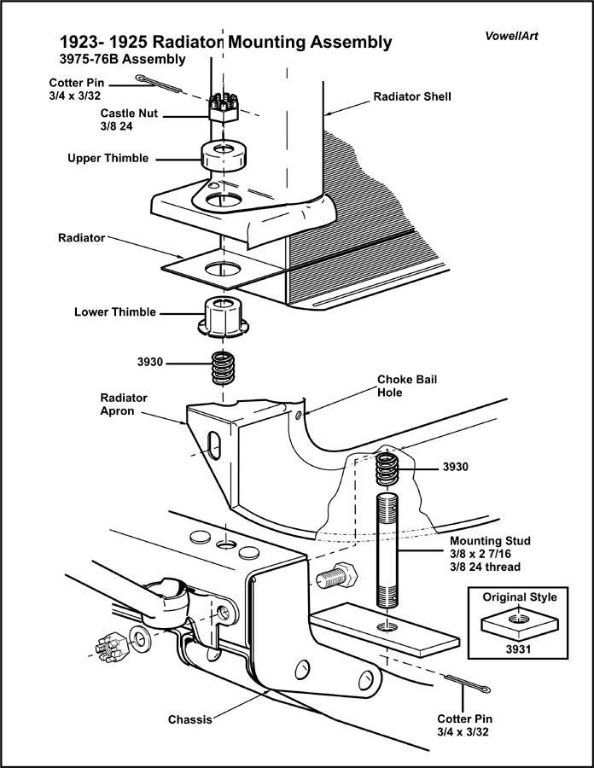

FORD Service Manual 1925 - what they don't mention can be assumed to be in place
https://www.cimorelli.com/mtdl/servicem ... mcolor.pdf
https://www.cimorelli.com/mtdl/servicem ... mcolor.pdf
- Attachments
-
-
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
Art Ebeling
Topic author - Posts: 483
- Joined: Sun Jan 06, 2019 10:43 am
- First Name: Art
- Last Name: Ebeling
- * REQUIRED* Type and Year of Model Ts owned: 1911 touring 14 runabout
- Location: Hillsboro IL
Re: 1924 radiator splash apron
Are there issues with the repro upper springs? They seem too tall, not allowing the shell to sit down far enough.
