Need blker. Distributor

Discuss all things Model T related.
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
Post Reply Previous topicNext topic

Topic author
Philip
Posts: 239
Joined: Sun Jan 06, 2019 12:09 pm
First Name: Philip
Last Name: Thompson
* REQUIRED* Type and Year of Model Ts owned: 1924 touring
Location: Graham NC

Need blker. Distributor

Post by Philip » Mon Aug 22, 2022 8:02 pm

If anyone has any info on the jess. blker. Belt drive distributor let me know
Top

Topic author
Philip
Posts: 239
Joined: Sun Jan 06, 2019 12:09 pm
First Name: Philip
Last Name: Thompson
* REQUIRED* Type and Year of Model Ts owned: 1924 touring
Location: Graham NC

Re: Need blker. Distributor

Post by Philip » Mon Aug 22, 2022 8:05 pm

I meant jess. Blker.
Top

Dan McEachern
Posts: 1400
Joined: Sun Jan 06, 2019 11:08 am
First Name: DAN
Last Name: MCEACHERN
* REQUIRED* Type and Year of Model Ts owned: too many. '14 touring, 2 depot hacks, 2 speedsters
Location: ALAMEDA,CA,USA

Re: Need blker. Distributor

Post by Dan McEachern » Mon Aug 22, 2022 8:17 pm

Used a Chevy Vega 4 cyl distributor, a pair of timing belt pulleys- one on the dist shaft and one on the cam nose. A simple bracket mounted the distributor horizontally with the cap to the rear. Pretty sure a few of them are out there still running.
Top

Topic author
Philip
Posts: 239
Joined: Sun Jan 06, 2019 12:09 pm
First Name: Philip
Last Name: Thompson
* REQUIRED* Type and Year of Model Ts owned: 1924 touring
Location: Graham NC

Re: Need blker. Distributor

Post by Philip » Mon Aug 22, 2022 9:31 pm

I think I have one I have to get some pulleys and a belt
Top
User avatar

BRENT in 10-uh-C
Posts: 424
Joined: Mon Jan 07, 2019 11:21 am
First Name: Brent
Last Name: Terry
* REQUIRED* Type and Year of Model Ts owned: 1909 Tourabout, 1914 Runabout, 1915 Touring, 1916 Speedster, 1925 Speedster, 1926 Hack
Location: Eastern Tennessee
Board Member Since: 1999
Contact:
Contact BRENT in 10-uh-C

Re: Need blker. Distributor

Post by BRENT in 10-uh-C » Tue Aug 23, 2022 11:14 am

Philip wrote: ↑
Mon Aug 22, 2022 9:31 pm
 I think I have one I have to get some pulleys and a belt
I (somewhere) have a new, never installed a Jess Blaker distributor kit. Let me look in my lower building later today or tonite.
Top

Cordes_jeff
Posts: 69
Joined: Wed Jan 09, 2019 8:45 pm
First Name: jeff
Last Name: cordes
* REQUIRED* Type and Year of Model Ts owned: 25
Location: houston

Re: Need blker. Distributor

Post by Cordes_jeff » Mon Aug 29, 2022 11:29 am

I copied the design. It was a cheap solution for a decent ignition.
Top

Topic author
Philip
Posts: 239
Joined: Sun Jan 06, 2019 12:09 pm
First Name: Philip
Last Name: Thompson
* REQUIRED* Type and Year of Model Ts owned: 1924 touring
Location: Graham NC

Re: Need blker. Distributor

Post by Philip » Tue Jul 18, 2023 8:44 am

does anyone have any information on these units i have parts but not the bearings
Top

jelloearnest
Posts: 1
Joined: Tue Jul 18, 2023 9:50 am
First Name: Billy
Last Name: Wade
Location: 8098 Ohio Ave. Perrysburg, OH 43551

Re: Need blker. Distributor

Post by jelloearnest » Tue Jul 18, 2023 9:52 am

Dan McEachern wrote: ↑
Mon Aug 22, 2022 8:17 pm
 Used a Chevy Vega 4 cyl distributor, a pair of timing belt pulleys- one on the dist shaft and one on the cam nose. A simple bracket mounted the distributor horizontally with the cap to the rear. Pretty sure a few of them are out there still running.
It sounds like you are describing a custom setup for a Chevy Vega 4-cylinder engine that uses a timing belt pulley system to drive the distributor. It's interesting to hear that this setup is still being used by some individuals and may be a viable alternative to traditional distributor setups.dumb ways to die
Top

Topic author
Philip
Posts: 239
Joined: Sun Jan 06, 2019 12:09 pm
First Name: Philip
Last Name: Thompson
* REQUIRED* Type and Year of Model Ts owned: 1924 touring
Location: Graham NC

Re: Need blker. Distributor

Post by Philip » Tue Jul 18, 2023 10:17 am

yes i have the bracket and a badly worn vega dist. made by jess blker. i bought a new dist.
but i would like to see how jess did the bearing
Top
User avatar

TRDxB2
Posts: 6261
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
* REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
Location: Moline IL
Board Member Since: 2018

Re: Need blker. Distributor

Post by TRDxB2 » Tue Jul 18, 2023 10:54 am

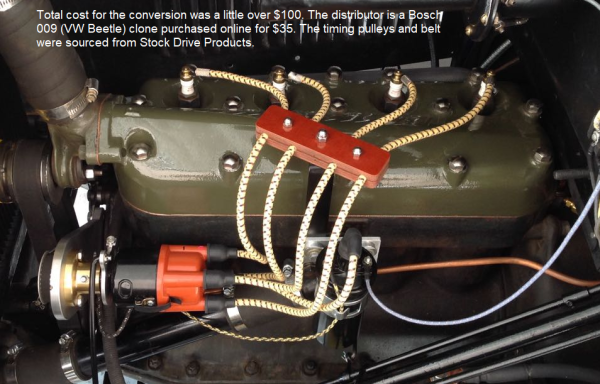

This is a 009 VW version (By Bob Doris, AZ on Wednesday, May 23, 2018) of the Jess Blaker distributor https://www.mtfca.com/discus/messages/8 ... 1536630758
--
009 VW version.png
--
--
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Top

Les Schubert
Posts: 1357
Joined: Thu Jan 10, 2019 5:47 pm
First Name: Les
Last Name: Schubert
* REQUIRED* Type and Year of Model Ts owned: 27 roadster 13 touring
Location: Calgary

Re: Need blker. Distributor

Post by Les Schubert » Tue Jul 18, 2023 8:53 pm

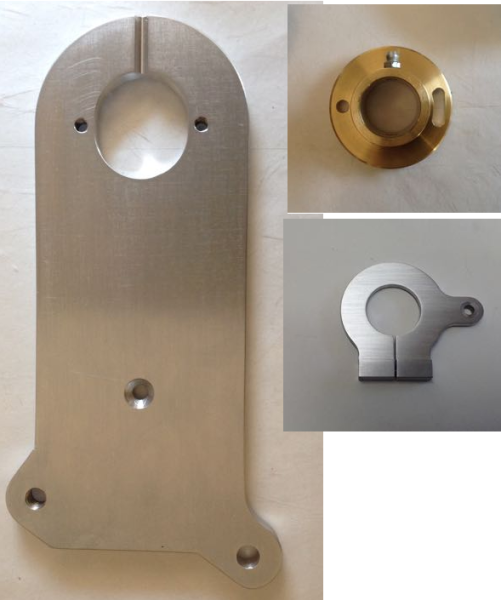

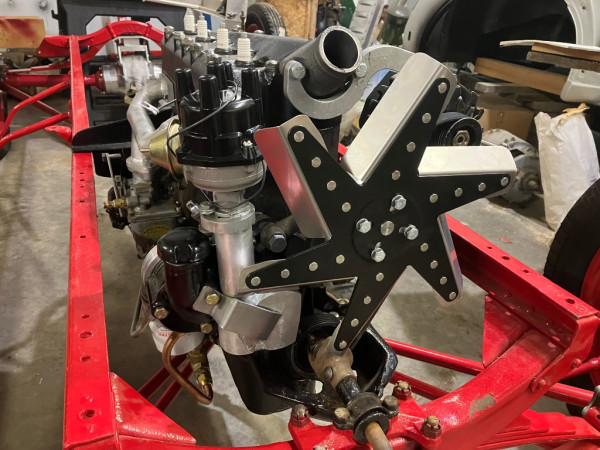

Here is my version of using the Vega distributor.
Gear driven.
Top

Topic author
Philip
Posts: 239
Joined: Sun Jan 06, 2019 12:09 pm
First Name: Philip
Last Name: Thompson
* REQUIRED* Type and Year of Model Ts owned: 1924 touring
Location: Graham NC

Re: Need blker. Distributor

Post by Philip » Wed Jul 19, 2023 6:19 am

Did you cast the body?
Top

Les Schubert
Posts: 1357
Joined: Thu Jan 10, 2019 5:47 pm
First Name: Les
Last Name: Schubert
* REQUIRED* Type and Year of Model Ts owned: 27 roadster 13 touring
Location: Calgary

Re: Need blker. Distributor

Post by Les Schubert » Wed Jul 19, 2023 9:41 am

I machined it from two pieces of aluminum and then welded
Top

Les Schubert
Posts: 1357
Joined: Thu Jan 10, 2019 5:47 pm
First Name: Les
Last Name: Schubert
* REQUIRED* Type and Year of Model Ts owned: 27 roadster 13 touring
Location: Calgary

Re: Need blker. Distributor

Post by Les Schubert » Wed Jul 19, 2023 9:44 am

For the shaft and bearings I bought what is referred to as a “water pump shaft “
Top

Les Schubert
Posts: 1357
Joined: Thu Jan 10, 2019 5:47 pm
First Name: Les
Last Name: Schubert
* REQUIRED* Type and Year of Model Ts owned: 27 roadster 13 touring
Location: Calgary

Re: Need blker. Distributor

Post by Les Schubert » Wed Jul 19, 2023 5:08 pm

The “traditional” approach to timing a automatic advance distributor is teeing a vacuum gauge into the system and adjusting the timing for maximum vacuum at idle
Top

Topic author
Philip
Posts: 239
Joined: Sun Jan 06, 2019 12:09 pm
First Name: Philip
Last Name: Thompson
* REQUIRED* Type and Year of Model Ts owned: 1924 touring
Location: Graham NC

Re: Need blker. Distributor

Post by Philip » Wed Jul 19, 2023 8:38 pm

Thanks les. My question is would I be better of with manual advance with this setup
Top
