Unusual Mixture control

[Oldav8tor]

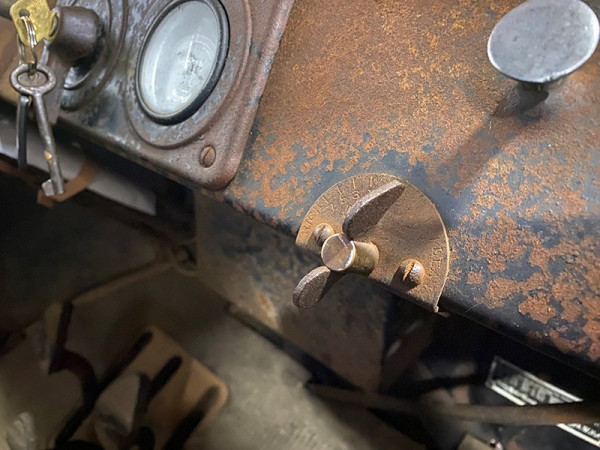

Has anyone seen a mixture control like this? A friend has a mostly unmolested roadster with this little gem.

[Norman Kling]

Never saw one like that! I wonder if that was home made or was sold somewhere aftermarket?
Norm

[Rich Eagle]

It doesn't look home made to me. Accessory or off some other make.

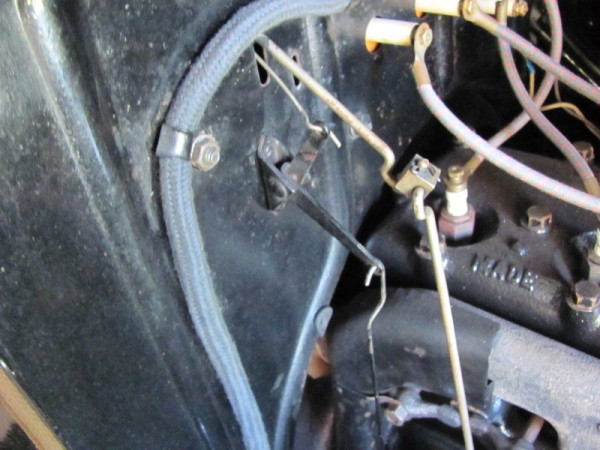

Maxwell used this one in 1915 and later. I'm sure other makes did also. Having a preset range would be handy. Not having to reach under the dash would be nice too.

[Jerry VanOoteghem]

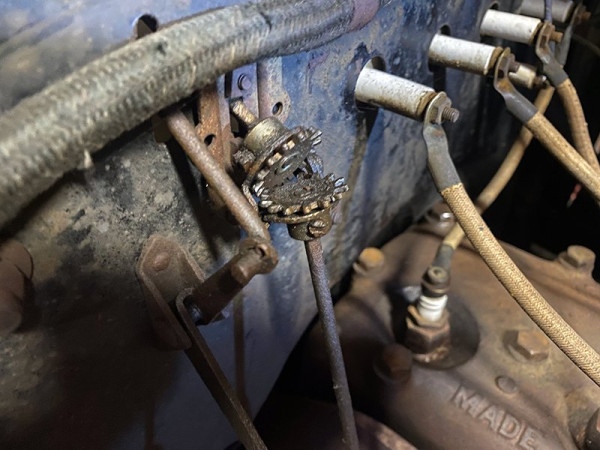

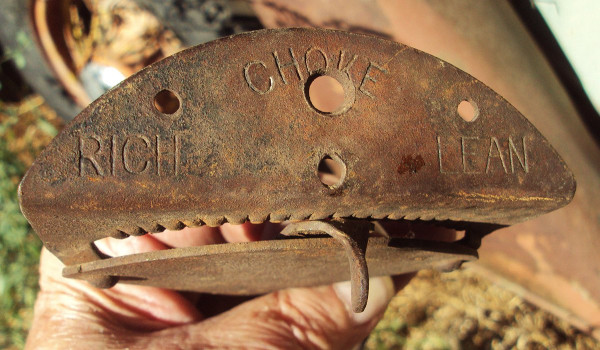

Not homemade. I have a similar unit on my Roadster. Mine has the exact same gear set-up, but in addition to mixture adjustment, it also controls the choke.

[TXGOAT2]

That's a nice one. A person could make a good one out of a length of speedometer cable. Mount a dial and knob wherever you want it and run the cable to a bracket on the engine. A similar arrangment could provide a dash mounted fuel shut off. Later models would need another bracket to divorce the choke function from the mixture control.

[Humblej]

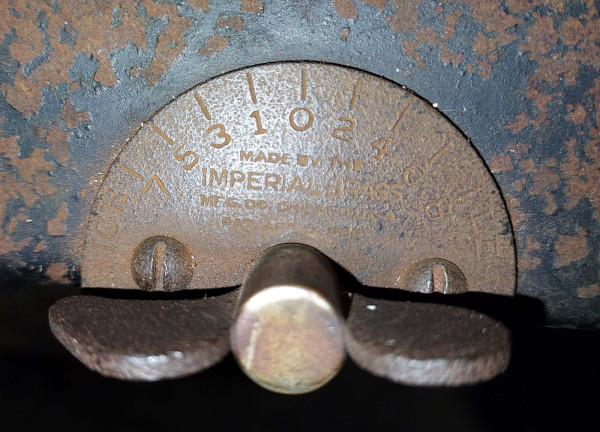

Here is a better picture of the face. It is marked "MADE BY THE IMPERIAL BRASS MFG CO" followed by a city and patent date that are illegible. The far left side of the dial is marked "RICH", the far right side is marked "LEAN".

[Jerry VanOoteghem]

Here is a better picture of the face. It is marked "MADE BY THE IMPERIAL BRASS MFG CO" followed by a city and patent date that are illegible. The far left side of the dial is marked "RICH", the far right side is marked "LEAN".


"Chicago, USA"

"Pat. Appld. For"

[Ron Patterson]

Not to much news there.
Rignty Tighty=leaner. Lefty loosey+Richer.

[A Whiteman]

We have another 'Imperial' very similar in our 'Aftermarket' section with a few comments too: app.php/gallery/image/2886

[DanTreace]

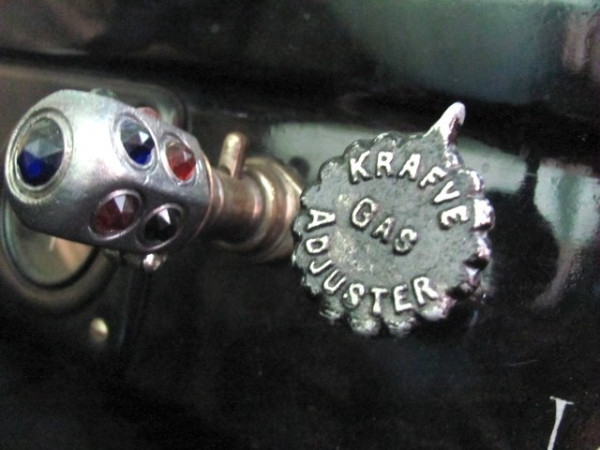

This one is my fav. "Karfve" gas adjuster... Has a knob to twist and adjust the gas, and if you pull on the knob, it chokes the carb! Unique universal joint to make the angle from the dash, and a loop wire on the shaft to pull up the choke butterfly. Think Ford got the idea for the later NH carb combo adjust for the later '25-'27 from this product.

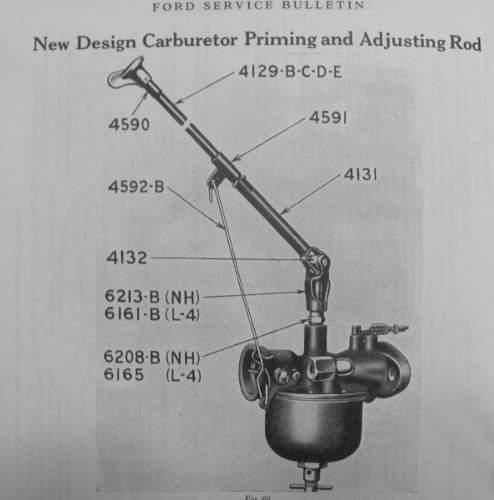

Ford NH later design combo dash control

528269 (494x500).jpg (95.99 KiB) Viewed 1079 times

[Erik Johnson]

Whenever stuff likes this comes up on the forum, I search Google books and find references in trade journals and catalogs.

When searching "Imperial Brass Mfg" they are listed as a carburetor, carburetor parts (ex. floats) and hubcap manufacturer in automotive and tractor trade journals.

Here is a link to an advertisement for their carburetor and choke control in a 1925 issue of "Automotive Merchandising." Note that it is the revised version that utilizes the stock hole in the instrument panel.

https://books.google.com/books/content? ... gew&w=1025

[Chris Bamford]

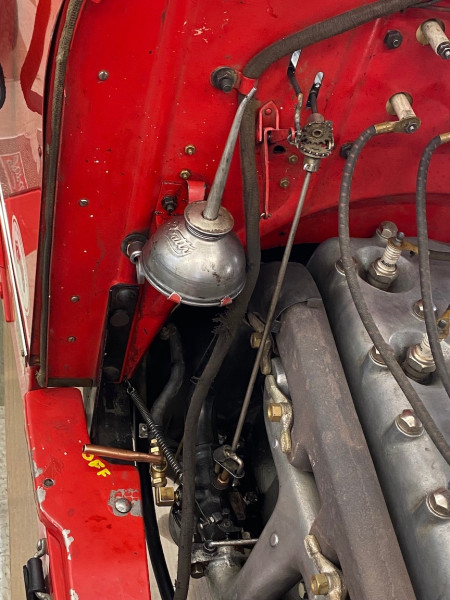

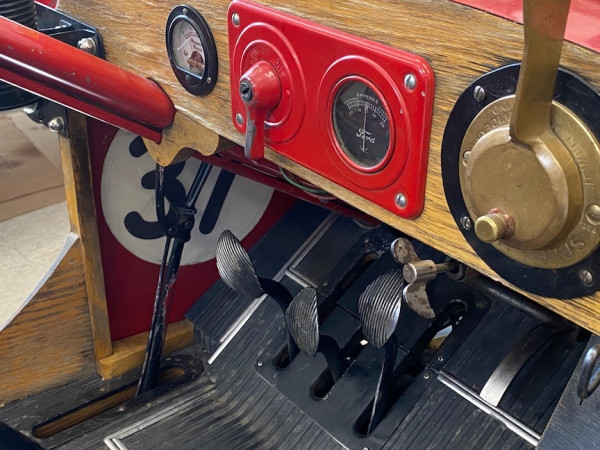

Here is the mixture control in my '24 Speedster, same as shown by Oldav8or in the initial post. I have the info dial but an under-mount worked better on this dash.
