Can you please explain the best way to attach the choke on the inlet to the mixture control rod, so that when you pull it up, it will act as a choke when starting, as it did when it was interfaced with the original vaporizer carb? Do any of the vendors such as Snyders or Macs supply a proper linkage for this?
I know that Ford never issued a kit for this, so apparently owners were left to their own devices when they removed the Vaporizer and put the Holley NH on the car.
Thanks to all replies!
Question for those who have installed a Holley NH in place of their Vaporizer Carbs
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Phillip
- Posts: 50
- Joined: Mon Feb 11, 2019 2:33 pm
- First Name: Phillip
- Last Name: Lee
- * REQUIRED* Type and Year of Model Ts owned: 1927 Model T Roadster Pickup
- Location: College Grove, TN
- Board Member Since: 2018
Re: Question for those who have installed a Holley NH in place of their Vaporizer Carbs
CHOKE ROD SLEEVE
Part # T-4591 | Model Year 26-27
In 26-27 the T's did not have a separate rod to choke the carb. This sleeve slips up the carb control beyond the cotter pin hole. A piece of wire goes from this sleeve down to the choke arm so when you pull up on the carb control, you choke the carb. U.S.A.
This is from Snyder's Antique Auto. I have it on my 1927 and it works great.
Phillip
Part # T-4591 | Model Year 26-27
In 26-27 the T's did not have a separate rod to choke the carb. This sleeve slips up the carb control beyond the cotter pin hole. A piece of wire goes from this sleeve down to the choke arm so when you pull up on the carb control, you choke the carb. U.S.A.
This is from Snyder's Antique Auto. I have it on my 1927 and it works great.
Phillip
- Attachments
-
- T-4591.jpg (6.89 KiB) Viewed 1478 times
-
John_Aldrich
- Posts: 117
- Joined: Wed Mar 13, 2019 10:46 am
- First Name: John
- Last Name: Aldrich
- * REQUIRED* Type and Year of Model Ts owned: 1915, 1923. 1927
- Location: Kapowsin WA
Re: Question for those who have installed a Holley NH in place of their Vaporizer Carbs
I agree with Phillip. Mine works great also.Phillip wrote: ↑Mon Sep 18, 2023 12:38 pmCHOKE ROD SLEEVE
Part # T-4591 | Model Year 26-27
In 26-27 the T's did not have a separate rod to choke the carb. This sleeve slips up the carb control beyond the cotter pin hole. A piece of wire goes from this sleeve down to the choke arm so when you pull up on the carb control, you choke the carb. U.S.A.
This is from Snyder's Antique Auto. I have it on my 1927 and it works great.
Phillip
John Aldrich
Typical Model T Addict
Typical Model T Addict
-
OilyBill
Topic author - Posts: 641
- Joined: Sat Apr 25, 2020 3:51 pm
- First Name: William
- Last Name: May
- * REQUIRED* Type and Year of Model Ts owned: 1914 Runabout
- Location: Tucson, Arizona
Re: Question for those who have installed a Holley NH in place of their Vaporizer Carbs
Thanks very much!
I have one of those as a spare part.
How far up the mixture rod does it need to mount? (That is, how far in inches above the edge of the mixture adjust sleeve that is mounted on the carb, and that the mixture adjust rod slides into, to the center of this little clip?)
(My mixture adjustment rod is undrilled as of now. I want to know the correct place to put the cotter pin through.)
I have one of those as a spare part.
How far up the mixture rod does it need to mount? (That is, how far in inches above the edge of the mixture adjust sleeve that is mounted on the carb, and that the mixture adjust rod slides into, to the center of this little clip?)
(My mixture adjustment rod is undrilled as of now. I want to know the correct place to put the cotter pin through.)
-
Original Smith
- Posts: 3699
- Joined: Tue Jan 08, 2019 10:43 am
- First Name: Larry
- Last Name: Smith
- * REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
- Location: Lomita, California
- MTFCA Life Member: YES
Re: Question for those who have installed a Holley NH in place of their Vaporizer Carbs
Those sleeves you are referring to were used on the late 1925's too.
-
John Codman
- Posts: 1481
- Joined: Mon Jan 07, 2019 10:27 am
- First Name: John
- Last Name: Codman
- * REQUIRED* Type and Year of Model Ts owned: 1927 Youring
- Location: Naples, FL 34120
Re: Question for those who have installed a Holley NH in place of their Vaporizer Carbs
I have the same setup on my '27 and have no complaints with it. I confess that the conversion was done before I met the car.
-
Chuck Regan
- Posts: 80
- Joined: Tue Jan 08, 2019 1:58 am
- First Name: Chuck
- Last Name: Regan
- * REQUIRED* Type and Year of Model Ts owned: 1926 Roadster Pickup
- Location: Thousand Oaks, CA
- Board Member Since: 2019
Re: Question for those who have installed a Holley NH in place of their Vaporizer Carbs

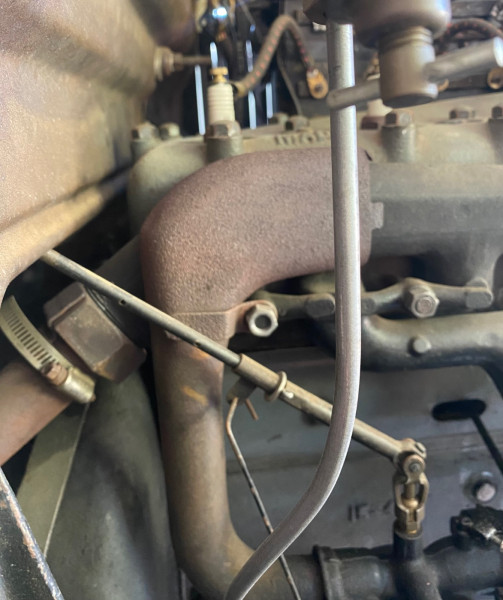

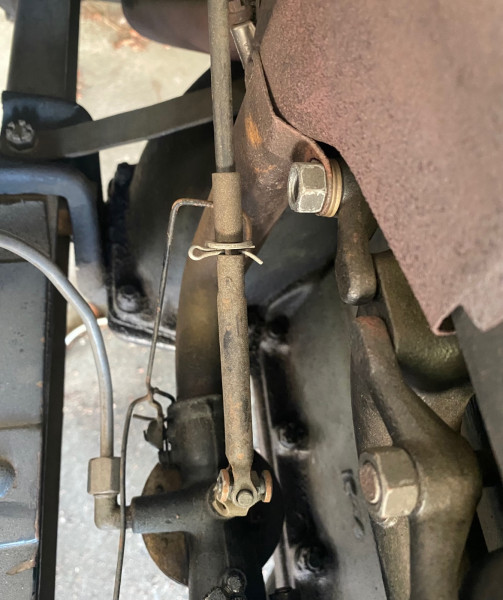

Bill - here are pictures of my ‘26.
- Attachments
-
-
-
OilyBill
Topic author - Posts: 641
- Joined: Sat Apr 25, 2020 3:51 pm
- First Name: William
- Last Name: May
- * REQUIRED* Type and Year of Model Ts owned: 1914 Runabout
- Location: Tucson, Arizona
Re: Question for those who have installed a Holley NH in place of their Vaporizer Carbs
Chuck Regan;
Absolutely AWESOME!! You answered all my questions with 2 pics!
Thanks very much! Just another demonstration of why this site is so valuable to Model T people!!
Absolutely AWESOME!! You answered all my questions with 2 pics!
Thanks very much! Just another demonstration of why this site is so valuable to Model T people!!
