Been there-done that.
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Bill Anziani
- Posts: 241
- Joined: Sun Jan 06, 2019 2:42 pm
- First Name: Bill
- Last Name: Anziani
- * REQUIRED* Type and Year of Model Ts owned: 1924 Coupe
- Location: Concord, NC
Re: Been there-done that.
Neat photo's Thanks for sharing them
-
Norman Kling
- Posts: 4634
- Joined: Tue Jan 08, 2019 1:39 pm
- First Name: Norman
- Last Name: Kling
- Location: Alpine California
Re: Been there-done that.
I appreciate the great pictures you post.
Norm
Norm
-
George House
- Posts: 2814
- Joined: Sun Jan 06, 2019 5:25 pm
- First Name: George
- Last Name: House
- * REQUIRED* Type and Year of Model Ts owned: ‘10 Maxwell AA, ‘11Hupp Model 20, Two 1914 Ford runabouts, 19 centerdoor, 25 C Cab,26 roadster
- Location: Northern Caldwell County TX
- MTFCA Life Member: YES
- Board Member Since: 1999
Re: Been there-done that.

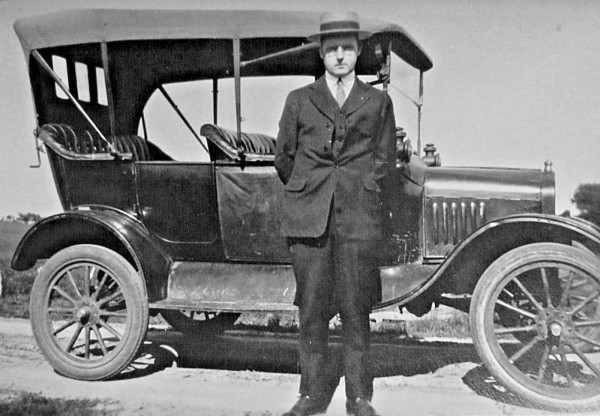

What ??.. A collection of Model T photos with no adult sitting on the hood ?!..I was befuddled by the photo of the suited man standing by the ‘17-‘18 touring that has no top saddles
Thanks again Tom; for finding and sharing these photos.
Thanks again Tom; for finding and sharing these photos.
A Fine is a Tax for Doing Something Wrong….A Tax is a Fine for Doing Something RIGHT
-
Norman Kling
- Posts: 4634
- Joined: Tue Jan 08, 2019 1:39 pm
- First Name: Norman
- Last Name: Kling
- Location: Alpine California
Re: Been there-done that.
That touring with no saddles is later than 17-18. It has a black radiator but the top is still straight but opens inward. I would say it is a 20 through 22.
Norm
Norm
-
Dennis_Brown
- Posts: 245
- Joined: Wed Jan 09, 2019 10:14 pm
- First Name: Dennis
- Last Name: Brown
- * REQUIRED* Type and Year of Model Ts owned: 1926 Roadster pickup
- Location: Spring Hill Fl
Re: Been there-done that.

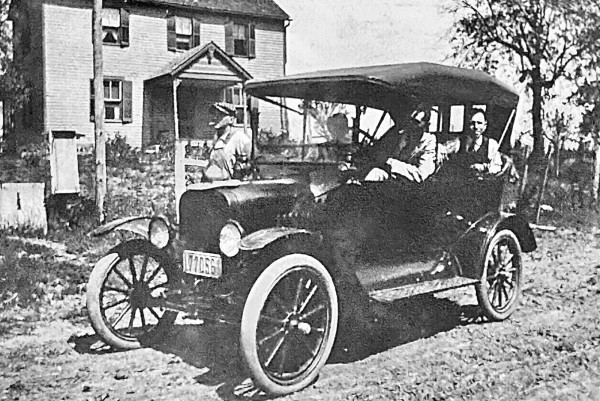

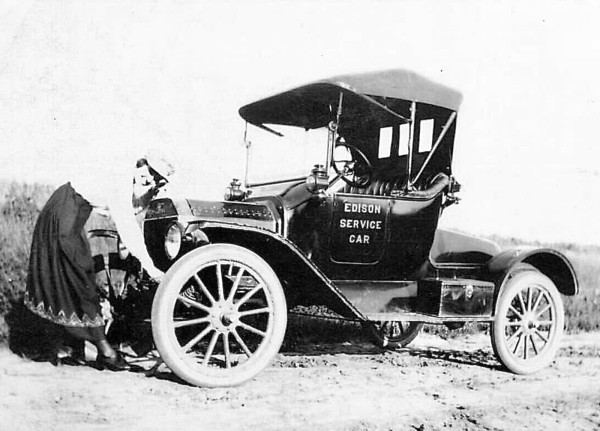

The 6th photo down has had more issues than top saddles. If you notice the panel in front of the right rear door , it , the splash aprons and hood do not have a shine like other body parts on the car. May have been wrecked or upset at some time and repaired with used body parts and a new top puton.
-
Wayne Sheldon
- Posts: 4249
- Joined: Sun Jan 06, 2019 3:13 pm
- First Name: Wayne
- Last Name: Sheldon
- * REQUIRED* Type and Year of Model Ts owned: 1915 Runabout 1913 Speedster
- Location: Grass Valley California, USA
- Board Member Since: 2005
Re: Been there-done that.
That sixth photo is interesting. Non-electric and non-demountable wheels don't mean a lot, as the base model continued that way until the end for runabouts and touring cars. The difference in condition, shine, etc, casts doubt about a number of things. I tend to agree that he cars was somehow damaged, and repairs may account for some issues. The outer panel beside the front seat is very interesting. It almost looks as if a replacement panel was added to the outside of the seat? There appear to be screws in the two visible corners. It could even be a piece of oilcloth or top material attached there, although I can't think of a good reason for it.
As for the year of the car. Considerable doubt on this one. Both front and rear seats do appear to have the upholstery tack strip outside the body panel, causing the upholstery to overhang the seat panels. That would indicate anything from 1917 to possibly as late as an early 1921. The rear tub is the five panel type with a bead around the rear fender supporting the 1917 into 1921 timeframe.
The square wood felloe wheels suggest 1918 or later, and I think 1918s mostly still had round felloe wheels. Uneven windshield hinges may eliminate an early 1917? And the square top sockets indicate about 1919 or later. However any or all of those things might have been changed to later parts if the car was in fact repaired.
I tried zooming in to the front end. Detail isn't very clear, but I "think" I can see an over-axle wishbone with an under-axle brace added.
My guess would be a 1919 or 1920 base model. Most likely a 1919 if it was with an over-axle wishbone.
But I sure wonder what that is outside the front seat?
As for the year of the car. Considerable doubt on this one. Both front and rear seats do appear to have the upholstery tack strip outside the body panel, causing the upholstery to overhang the seat panels. That would indicate anything from 1917 to possibly as late as an early 1921. The rear tub is the five panel type with a bead around the rear fender supporting the 1917 into 1921 timeframe.
The square wood felloe wheels suggest 1918 or later, and I think 1918s mostly still had round felloe wheels. Uneven windshield hinges may eliminate an early 1917? And the square top sockets indicate about 1919 or later. However any or all of those things might have been changed to later parts if the car was in fact repaired.
I tried zooming in to the front end. Detail isn't very clear, but I "think" I can see an over-axle wishbone with an under-axle brace added.
My guess would be a 1919 or 1920 base model. Most likely a 1919 if it was with an over-axle wishbone.
But I sure wonder what that is outside the front seat?
