OHV Head #78 Unknown ID

Post by JSteele » Tue Nov 14, 2023 10:36 pm

I picked up another project. I think it's project #6093 on my list. The head is the first mystery I'm trying to solve so I thought I would post some pictures and see if anyone knows. It has been suggested that it was for a marine engine which could be possible but I believe this head was sold with accessories or as a package for street use.
Attachments

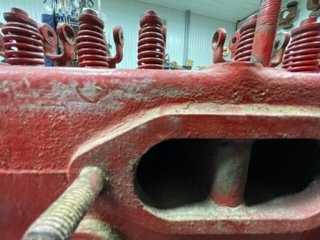

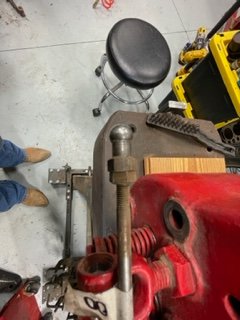

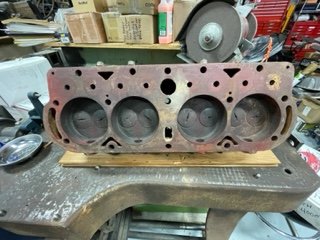

Port is really well divided
Port is really well divided

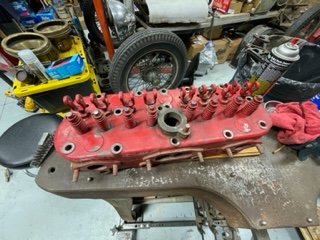

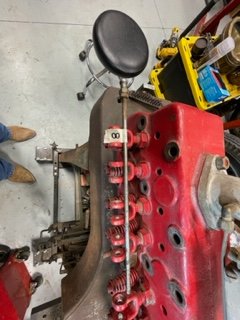

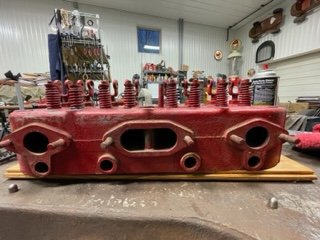

Cross flow head
Cross flow head

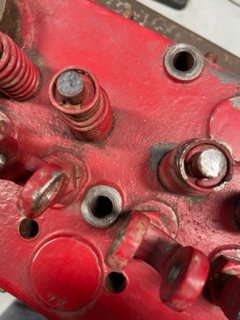

individual rocker arms stands
individual rocker arms stands
Top

Topic author
JSteele
Posts: 144
Joined: Sun Jan 06, 2019 11:25 am
First Name: John P.
Last Name: Steele
* REQUIRED* Type and Year of Model Ts owned: 1915 Roadster
Location: Montana
MTFCA Life Member: YES

Re: OHV Head #78 Unknown ID

Post by JSteele » Tue Nov 14, 2023 10:48 pm

Rocker arm and some pictures of water heated manifold
Attachments

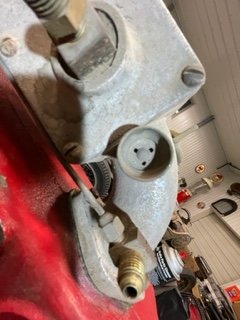

primer cup
primer cup

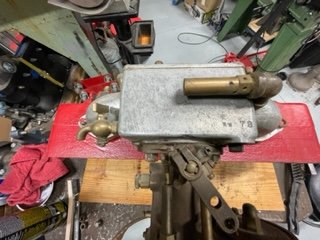

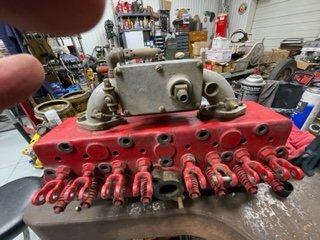

front of intake
front of intake
Top of intake
Top of intake

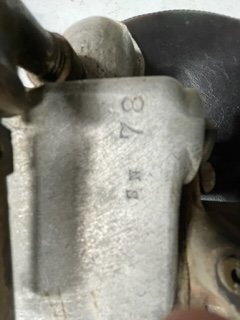

Intake serial # 78
Intake serial # 78

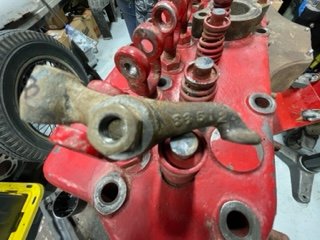

rocker arm part #33512
rocker arm part #33512
Top

Topic author
JSteele
Posts: 144
Joined: Sun Jan 06, 2019 11:25 am
First Name: John P.
Last Name: Steele
* REQUIRED* Type and Year of Model Ts owned: 1915 Roadster
Location: Montana
MTFCA Life Member: YES

Re: OHV Head #78 Unknown ID

Post by JSteele » Tue Nov 14, 2023 10:57 pm

Exhaust system/ push rods/ Beehive valve springs
Attachments
horseshoe clip holding valve spring retainer in place
horseshoe clip holding valve spring retainer in place
push rod end
push rod end
push rod
push rod
Cast iron piece flex tube fasten to, nice casting
Cast iron piece flex tube fasten to, nice casting

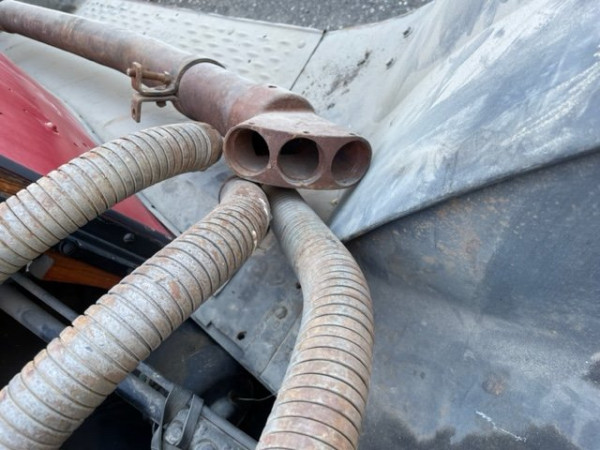

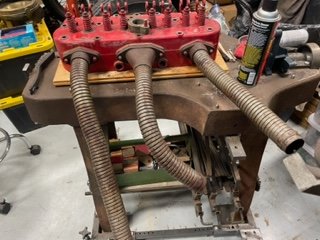

Exhaust manifold cast head with flex pipe
Exhaust manifold cast head with flex pipe
Top

Topic author
JSteele
Posts: 144
Joined: Sun Jan 06, 2019 11:25 am
First Name: John P.
Last Name: Steele
* REQUIRED* Type and Year of Model Ts owned: 1915 Roadster
Location: Montana
MTFCA Life Member: YES

Re: OHV Head #78 Unknown ID

Post by JSteele » Tue Nov 14, 2023 11:08 pm

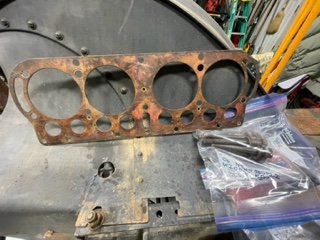

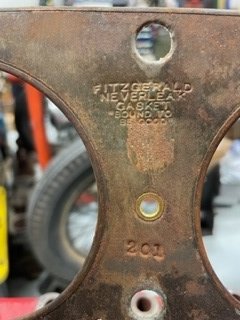

Head Gasket Fitzgerald
Never Leak
Gasket
Bound To
Be Good

201
Anybody know what years this company was in business making Model T Head Gaskets
Attachments
Top

Kevin Pharis
Posts: 1558
Joined: Thu Jan 10, 2019 3:54 pm
First Name: Kevin
Last Name: Pharis
Location: Sacramento CA
Contact:
Contact Kevin Pharis

Re: OHV Head #78 Unknown ID

Post by Kevin Pharis » Wed Nov 15, 2023 12:02 am

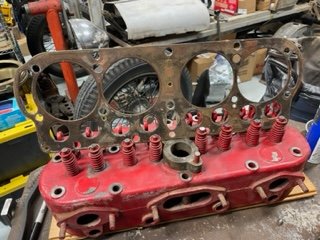

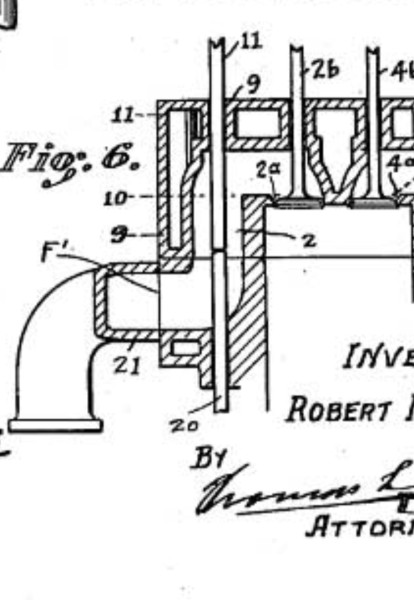

That’s an interesting gasket variation as it has the push rod pass thru hole at the full valve diameter. This extra clearance is needed on a select few O/H conversions that utilize the ports in the block. One example is the Roof 16 valve model “A” cylinder head
Top

TXGOAT2
Posts: 7391
Joined: Sun Feb 14, 2021 10:08 pm
First Name: Pat
Last Name: McNallen
* REQUIRED* Type and Year of Model Ts owned: 1926-7 roadster
Location: Graham, Texas
Board Member Since: 2021

Re: OHV Head #78 Unknown ID

Post by TXGOAT2 » Wed Nov 15, 2023 9:10 am

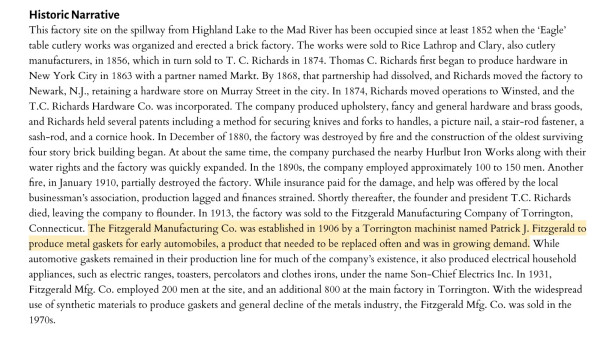

Mr. Fitzgerald made his first gaskets for the Breech Block spark plug.
Top

ThreePedalTapDancer
Posts: 1631
Joined: Sun Nov 24, 2019 2:29 pm
First Name: Ed
Last Name: Martin
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1909 Touring
Location: Idaho

Re: OHV Head #78 Unknown ID

Post by ThreePedalTapDancer » Wed Nov 15, 2023 9:17 am

Top

got10carz
Posts: 552
Joined: Sun Jan 06, 2019 6:37 pm
First Name: Steve
Last Name: Meixner
* REQUIRED* Type and Year of Model Ts owned: 1911,13,14,19,23,25,26,27
Location: Moorhead MN

Re: OHV Head #78 Unknown ID

Post by got10carz » Wed Nov 15, 2023 9:32 am

My 16 valve had a Fitzgerald head gasket when I took it apart. I don't remember the part number, and I'm sure I threw it away.
Top
User avatar

Duey_C
Posts: 1553
Joined: Sun Jan 06, 2019 12:28 pm
First Name: Duane
Last Name: Cooley
* REQUIRED* Type and Year of Model Ts owned: 18 Runabout, 24 Runabout for 20yrs, 25 TT, late Center Door project, open express pickup
Location: central MN
Board Member Since: 2015

Re: OHV Head #78 Unknown ID

Post by Duey_C » Thu Nov 16, 2023 1:53 am

Thank you for the Fitzgerald info Ed. :)
There's a pair of Fitz #728's here which are far, far from this realm. ;)
Since I lost my mind mind, I feel more liberated
Top
