Ball Joint Gasket Question
Does anyone have a guess as to why my 27 touring would have 3 ball joint gaskets between the pan and ball cap? This has me puzzled!
A man has got to know his limitations!
-
Scott_Conger
- Posts: 6523
- Joined: Sun Jan 06, 2019 11:18 am
- First Name: Scott
- Last Name: Conger
- * REQUIRED* Type and Year of Model Ts owned: 1919
- Location: not near anywhere, WY
- Board Member Since: 2005
Re: Ball Joint Gasket Question
I'm puzzled, too. What is a ball joint gasket?
Scott Conger
Tyranny under the guise of law is still Tyranny
NH Full Flow Float Valves™
Obsolete carburetor parts manufactured
Tyranny under the guise of law is still Tyranny
NH Full Flow Float Valves™
Obsolete carburetor parts manufactured
-
Paranyos
Topic author - Posts: 37
- Joined: Mon Jan 07, 2019 6:59 pm
- First Name: Paul
- Last Name: Aranyos
- * REQUIRED* Type and Year of Model Ts owned: 1927 Touring
- Location: Greenville, PA
Re: Ball Joint Gasket Question
That is what Snyders calls it in their catalog. It is the gasket between the back of the pan and the ball cap. The point where the U-joint matches up with the transmission. Round gasket with 4 holes for the bolts.
A man has got to know his limitations!
-
DanTreace
- Posts: 3812
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Ball Joint Gasket Question
Should be only one gasket on the 4th main surface against the crankcase/hogshead to prevent oil leaking at that joint.
Only can guess a former owner had loose fitting torque tube ball and figured it would be snugger with more gaskets? That isn't the way, if the torque tube ball is worn, you are best served by using the accessory shims, that fit around the torque tube ball and held by the U-joint ball cap, and take up that excess play of a worn ball.
No gasket between the U-joint ball cap and the 4th main.
Only can guess a former owner had loose fitting torque tube ball and figured it would be snugger with more gaskets? That isn't the way, if the torque tube ball is worn, you are best served by using the accessory shims, that fit around the torque tube ball and held by the U-joint ball cap, and take up that excess play of a worn ball.

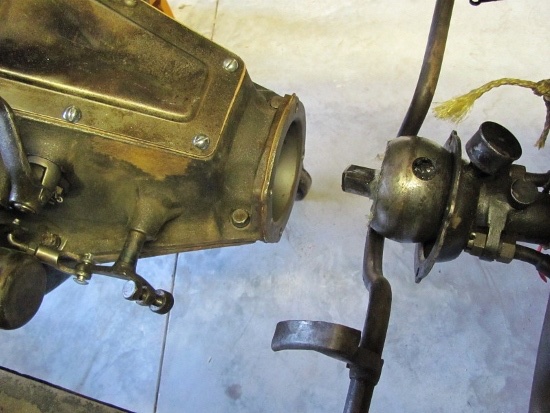

- IMG_0653 (800x600) (550x413).jpg (113.63 KiB) Viewed 4622 times
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
got10carz
- Posts: 552
- Joined: Sun Jan 06, 2019 6:37 pm
- First Name: Steve
- Last Name: Meixner
- * REQUIRED* Type and Year of Model Ts owned: 1911,13,14,19,23,25,26,27
- Location: Moorhead MN
Re: Ball Joint Gasket Question
My thought is the oil pan isn't located properly, and the gaskets acted as shims to push the ball cap backwards. The centering flange would be about 3 gaskets wide.
-
Paranyos
Topic author - Posts: 37
- Joined: Mon Jan 07, 2019 6:59 pm
- First Name: Paul
- Last Name: Aranyos
- * REQUIRED* Type and Year of Model Ts owned: 1927 Touring
- Location: Greenville, PA
Re: Ball Joint Gasket Question
It does have the round soft metal shim around the ball also. I just cant figure out the reasoning for 3 gaskets. My fear is that there is a problem that he was trying to compensate for. I am just not sure what that would be or how to identify it.
A man has got to know his limitations!
-
RajoRacer
- Posts: 5171
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: Ball Joint Gasket Question
Simple test to check for wear in the ball cap area is to pull the hand brake lever back & forth rather quickly several times in succession from the forward position to engage the clutch throw-out bolt and watch the ball end to see if it is actually 'walking" in & out of the collar - if so, install the shaped metal shim mentioned above.
-
Oldav8tor
- Posts: 2245
- Joined: Sun Jan 06, 2019 11:39 am
- First Name: Tim
- Last Name: Juhl
- * REQUIRED* Type and Year of Model Ts owned: 1917 Touring
- Location: Thumb of Michigan
- Board Member Since: 2018
Re: Ball Joint Gasket Question
I would think additional gaskets would loosen the ball cap, not tighten it. Since I will soon be installing mine to my engine, I have a question: Is it best to use a dry paper gasket in this location or could I forego the gasket and just apply a bead of ultra black RTV?
1917 Touring
1946 Aeronca Champ
1952 Willys M38a1 Jeep (sold 2023)
1953 Ford Jubilee Tractor
1946 Aeronca Champ
1952 Willys M38a1 Jeep (sold 2023)
1953 Ford Jubilee Tractor
-
RajoRacer
- Posts: 5171
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: Ball Joint Gasket Question
I use both - paper gasket & a small bead of black RTV on both sides.
