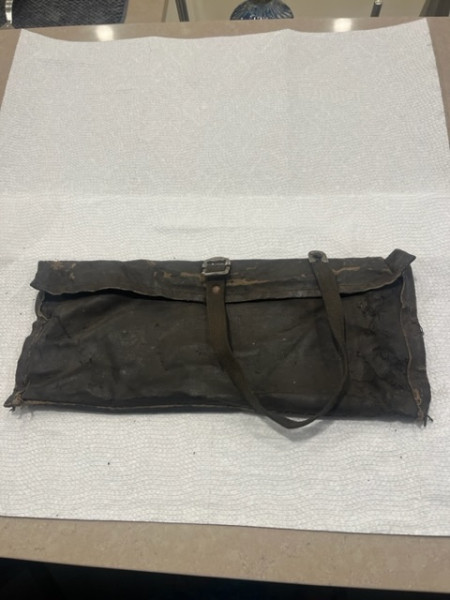

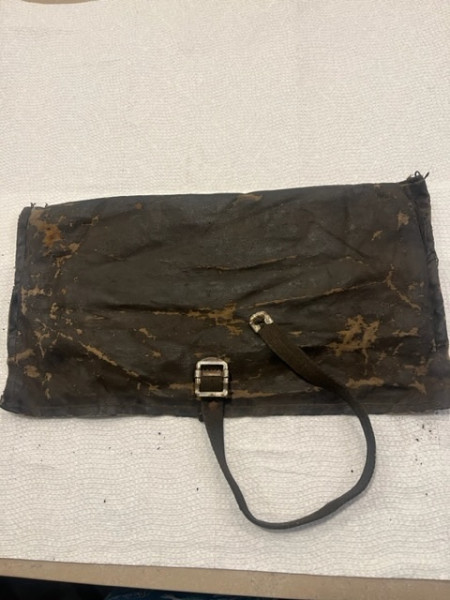

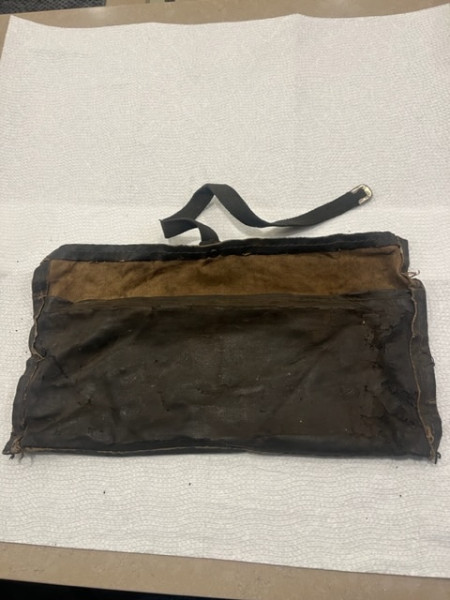

I ran across this original tool bag in a friends garage. It has the correct tools, but I can't say with any certainty that these tools were always together. The bag is made of 2 pieces of model T top material. I think it's in pretty good shape for carrying all those tools for 100+ years.

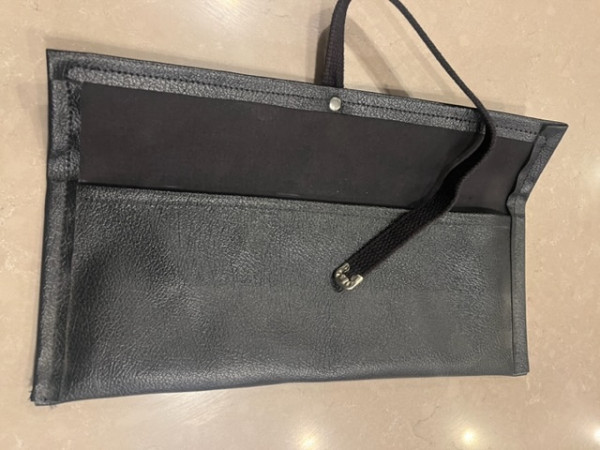

The new bag also pictured in an excellent reproduction by Larry Smith.
A look at an original tool bag and tools
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
KimDobbins
Topic author - Posts: 1554
- Joined: Sun Jan 06, 2019 12:16 pm
- First Name: Kim
- Last Name: Dobbins
- * REQUIRED* Type and Year of Model Ts owned: 1909 touring, 1910 touring, 1913 touring, 1916 couplet, 1925 roadster pickup.
- Location: Southern California
-
KimDobbins
Topic author - Posts: 1554
- Joined: Sun Jan 06, 2019 12:16 pm
- First Name: Kim
- Last Name: Dobbins
- * REQUIRED* Type and Year of Model Ts owned: 1909 touring, 1910 touring, 1913 touring, 1916 couplet, 1925 roadster pickup.
- Location: Southern California
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: A look at an original tool bag and tools
The roll has likely carried those tools longer than 100 years. The spark plug wrench with the closed socket end is mid teens. The later T1917 band adjusting wrench had the diamond shape. This one a second iteration of that tool the first one being much chunkier.
This all depends on the kit not being an assembled collection of course.
Allan from down under.
This all depends on the kit not being an assembled collection of course.
Allan from down under.
-
Humblej
- Posts: 1957
- Joined: Sun Jan 06, 2019 12:23 pm
- First Name: Jeff
- Last Name: Humble
- * REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
- Location: Charlevoix, Mi
- Board Member Since: 2006
Re: A look at an original tool bag and tools
That is great, thanks for posting.
-
Original Smith
- Posts: 3699
- Joined: Tue Jan 08, 2019 10:43 am
- First Name: Larry
- Last Name: Smith
- * REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
- Location: Lomita, California
- MTFCA Life Member: YES
Re: A look at an original tool bag and tools
What is interesting is this information hasn't been posted before. I made the new tool bag posted from an original print I found at the archives. I need to know what years this was used. Most of the tool roll, tool bag information available is not accurate in my opinion. The original tool bag Kim posted is the only example I've seen.
-
1915ford
- Posts: 102
- Joined: Sun Mar 27, 2022 10:54 pm
- First Name: Mark
- Last Name: Cameron
- * REQUIRED* Type and Year of Model Ts owned: 1909touring 1915 touring
- Location: Owatonna, MN
Re: A look at an original tool bag and tools

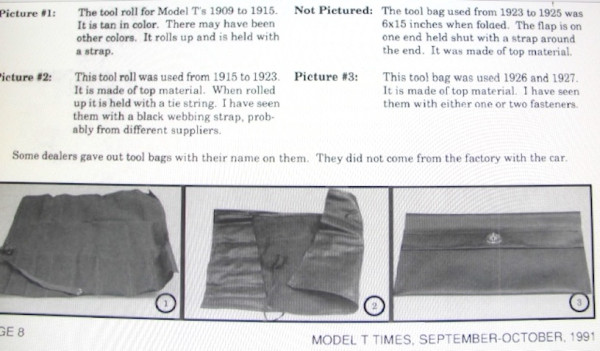

I researched the tool rolls in some detail years ago. Generally speaking, the roll with individual pockets was used until 1922. For 1923 they changed to an end loading pouchwith a short strap and buckle. In 1926 the design changed to the envelope style. All were made from top scrap per the blueprints.
-
cwlittle
- Posts: 94
- Joined: Thu Apr 25, 2019 12:11 pm
- First Name: Charles
- Last Name: Little
- * REQUIRED* Type and Year of Model Ts owned: 1913 Touring, 1924 Del. Truck, 1924 Touring
- Location: South Paris, Maine
Re: A look at an original tool bag and tools
The above information raises the questions: Is the style Kim posted. and Larry made, the original iteration of the "envelope" style? Or was that 26-27 Model T style similar to the Model A pouch that had snaps? If so, where does this one fit into the scheme of thins?
Charlie Little, South Paris, Maine
-
ModelTSpeedster
- Posts: 121
- Joined: Mon Jan 07, 2019 7:13 am
- First Name: Randy
- Last Name: Brown
- * REQUIRED* Type and Year of Model Ts owned: 1910 Speedster, 1915 Speedster, 1924 Roadster, 1926 TT, 1923 boattail (project)
- Location: Austin, Texas
- Contact:
-
Humblej
- Posts: 1957
- Joined: Sun Jan 06, 2019 12:23 pm
- First Name: Jeff
- Last Name: Humble
- * REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
- Location: Charlevoix, Mi
- Board Member Since: 2006
Re: A look at an original tool bag and tools
Randy,
That is not a Ford tool bag.
That is not a Ford tool bag.
-
Original Smith
- Posts: 3699
- Joined: Tue Jan 08, 2019 10:43 am
- First Name: Larry
- Last Name: Smith
- * REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
- Location: Lomita, California
- MTFCA Life Member: YES
Re: A look at an original tool bag and tools
I have a NOS Ford tool bag that is the same as pictured above, but is made of Ford top material. I suspect the photo above is original, but that day they decided to make the bags out of the top boot and gypsy curtain material used in 1927?
-
DanTreace
- Posts: 3812
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: A look at an original tool bag and tools
cwlittle wrote: ↑Wed Nov 15, 2023 11:03 amThe above information raises the questions: Is the style Kim posted. and Larry made, the original iteration of the "envelope" style? Or was that 26-27 Model T style similar to the Model A pouch that had snaps? If so, where does this one fit into the scheme of thins?
Believe this info below is mostly correct, but haven't personally examined drawings at the Benson Ford to confirm.

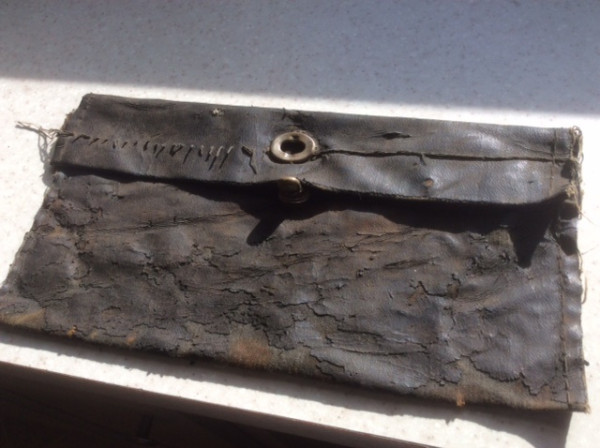

1926-27 tool bag, top material with Common Sense fastener. If two fasteners, then likely Model A, as this bag style continued.
- 308916.jpg (61.19 KiB) Viewed 1607 times

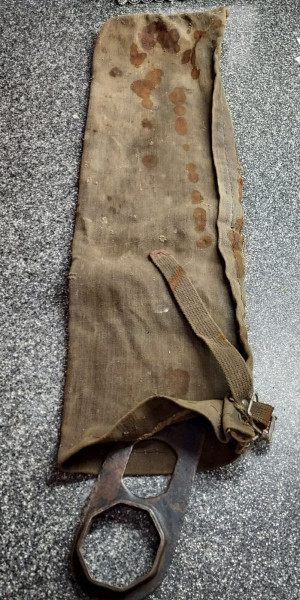

1923 to 1925 sleeve style tool bag, 6" x 15", the open end is tied shut with strap and buckle.
- 157734.jpg (26.74 KiB) Viewed 1607 times
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
Original Smith
- Posts: 3699
- Joined: Tue Jan 08, 2019 10:43 am
- First Name: Larry
- Last Name: Smith
- * REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
- Location: Lomita, California
- MTFCA Life Member: YES
Re: A look at an original tool bag and tools
As I mentioned previously, I have a NOS 25-27 tool bag I bought from Don Lang years ago. My assumption is it was used until 1927. Why? That style was introduced to hold the new long jack handle the came along in 1925, That jack handle also has a spoon end on it, so they were able to remove one of the short tire irons.
As far as the previous photo posted by Kim. I made the new reproduction bag several years ago from a print I found at the Benson Ford. It is exact in every way to the original, which I now own, that Kim posted.
As far as the previous photo posted by Kim. I made the new reproduction bag several years ago from a print I found at the Benson Ford. It is exact in every way to the original, which I now own, that Kim posted.
