26/27 spindlesg
So how much do the spindles lower the chassis? Looks to me like about an inch?
-
TRDxB2
- Posts: 6259
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: 26/27 spindlesg
From another discussion

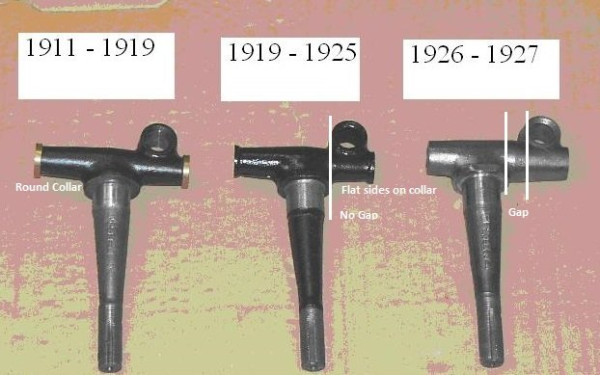

A 09-25 T spindle. Measures 2.125" from bottom of kingpin shaft (not including bushing) to spindle centerline.
The 'improved car' (26-27) model T spindle; 2.75" from bottom of kingpin shaft (not including bushing) to spindle CL (spindle CL is 5/8" higher than the 09-25 spindle, producing a 'drop' of like amount.). So 5/8"
A 09-25 T spindle. Measures 2.125" from bottom of kingpin shaft (not including bushing) to spindle centerline.
The 'improved car' (26-27) model T spindle; 2.75" from bottom of kingpin shaft (not including bushing) to spindle CL (spindle CL is 5/8" higher than the 09-25 spindle, producing a 'drop' of like amount.). So 5/8"
- Attachments
-
