Question on early spindle arms

Post by FATMAN » Wed Jan 03, 2024 2:53 pm

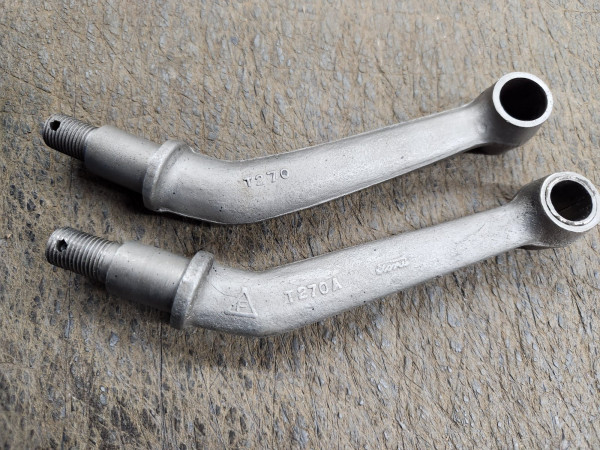

I have had a lot of early spindle arms but just ran across this pair they have a sharp bend a lot more than the standard early arms, what year were these used? Bob
Attachments
Top
User avatar

TWrenn
Posts: 3743
Joined: Sun Jan 06, 2019 10:53 am
First Name: Tim
Last Name: Wrenn
* REQUIRED* Type and Year of Model Ts owned: '13 Touring, '26 "Overlap" Fordor
Location: Ohio
Board Member Since: 2019

Re: Question on early spindle arms

Post by TWrenn » Wed Jan 03, 2024 3:12 pm

Those are weird! Can't help ya...even the judging guidelines don't show any like that. Aftermarket maybe? Different brand of car?
Top
User avatar

Mark Nunn
Posts: 1241
Joined: Mon Jan 07, 2019 8:01 am
First Name: Mark
Last Name: Nunn
* REQUIRED* Type and Year of Model Ts owned: 1926 Runabout
Location: Bennington, NE
Board Member Since: 2017

Re: Question on early spindle arms

Post by Mark Nunn » Wed Jan 03, 2024 4:46 pm

Are wide-track spindle arms different from standard? I'm just throwing this out without ANY facts to fall upon.
Top

Allan
Posts: 6609
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
* REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
Location: Gawler, Australia

Re: Question on early spindle arms

Post by Allan » Wed Jan 03, 2024 5:15 pm

Clever thought Mark. If the tie rod and drag link are standard fitment on Wide tracks, it make good sense.

Allan from down under.
Top

John kuehn
Posts: 4433
Joined: Sun Jan 06, 2019 8:00 pm
First Name: John
Last Name: Kuehn
* REQUIRED* Type and Year of Model Ts owned: 19 Roadster, 21 Touring, 24 Coupe
Location: Texas

Re: Question on early spindle arms

Post by John kuehn » Wed Jan 03, 2024 5:37 pm

Any markings or T numbers on them?
Top

Topic author
FATMAN
Posts: 1697
Joined: Sat Jan 19, 2019 9:28 am
First Name: ROBERT
Last Name: BERGSTADT
Location: LOVES PARK IL

Re: Question on early spindle arms

Post by FATMAN » Wed Jan 03, 2024 6:05 pm

Ford script on one also part number
Top

Topic author
FATMAN
Posts: 1697
Joined: Sat Jan 19, 2019 9:28 am
First Name: ROBERT
Last Name: BERGSTADT
Location: LOVES PARK IL

Re: Question on early spindle arms

Post by FATMAN » Wed Jan 03, 2024 6:06 pm

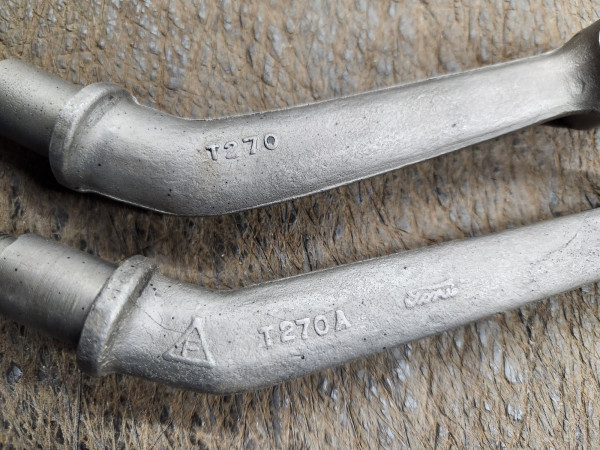

T 270 A is on the one if you enlarge photo,Bob
Top

Topic author
FATMAN
Posts: 1697
Joined: Sat Jan 19, 2019 9:28 am
First Name: ROBERT
Last Name: BERGSTADT
Location: LOVES PARK IL

Re: Question on early spindle arms

Post by FATMAN » Wed Jan 03, 2024 6:07 pm

T 270 is on the other one
Top
User avatar

TRDxB2
Posts: 6259
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
* REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
Location: Moline IL
Board Member Since: 2018

Re: Question on early spindle arms

Post by TRDxB2 » Wed Jan 03, 2024 7:07 pm

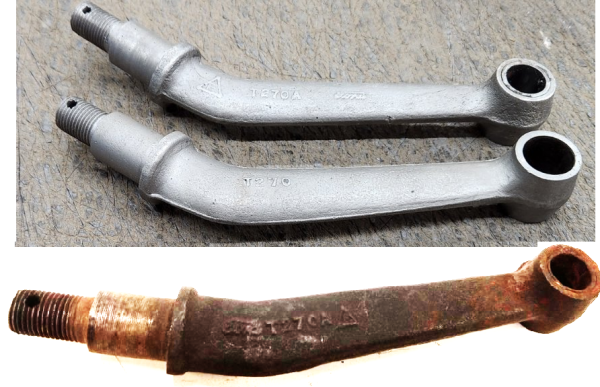

The odd shaped spindle arms, with Ford part numbers, appear to be unused, perhaps a repro intended for a special purpose
Attachments
spindle arm.png
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Top

Topic author
FATMAN
Posts: 1697
Joined: Sat Jan 19, 2019 9:28 am
First Name: ROBERT
Last Name: BERGSTADT
Location: LOVES PARK IL

Re: Question on early spindle arms

Post by FATMAN » Wed Jan 03, 2024 9:33 pm

Not re pros 1 used they are original
Top
User avatar

Tbird
Posts: 1230
Joined: Sun Jan 06, 2019 6:51 pm
First Name: Mike
Last Name: Bird
* REQUIRED* Type and Year of Model Ts owned: 1912 Delivery Car
Location: Goshen IN

Re: Question on early spindle arms

Post by Tbird » Wed Jan 03, 2024 9:49 pm

I wonder if they were modified for some sort of Gow job back in the day?
Top

M.Sinclair
Posts: 54
Joined: Sun Oct 02, 2022 2:47 pm
First Name: Matthew
Last Name: Sinclair
* REQUIRED* Type and Year of Model Ts owned: 1921 Coupe
Location: Canton, Michigan

Re: Question on early spindle arms

Post by M.Sinclair » Wed Jan 03, 2024 11:17 pm

That’s a pretty severe angle for a modification I’d think. Especially with cast steels tendency to snap.
Top

Wayne Sheldon
Posts: 4248
Joined: Sun Jan 06, 2019 3:13 pm
First Name: Wayne
Last Name: Sheldon
* REQUIRED* Type and Year of Model Ts owned: 1915 Runabout 1913 Speedster
Location: Grass Valley California, USA
Board Member Since: 2005

Re: Question on early spindle arms

Post by Wayne Sheldon » Thu Jan 04, 2024 6:13 am

Any chance they could be tractor? They have a really short wheelbase, requiring a sharper angle for the steering arms.
Model T spindle arms are not cast iron. They are steel, probably drop forgings. They can be bent cold or hot, and even welded without much trouble. I have straightened several wrecked ones in the past, and for one racing car needed to custom bend to clear the special suspension. That car I drove VERY hard! Never had a hint of trouble from it.

However, they can be broken. Just ask Ed Archer about the Baja Run!
Top

speedytinc
Posts: 4725
Joined: Fri Feb 12, 2021 12:24 pm
First Name: john
Last Name: karvaly
* REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
Location: orange, ca
Board Member Since: 2020

Re: Question on early spindle arms

Post by speedytinc » Thu Jan 04, 2024 7:59 am

Mark Nunn wrote: ↑
Wed Jan 03, 2024 4:46 pm
 Are wide-track spindle arms different from standard? I'm just throwing this out without ANY facts to fall upon.
I can confirm, they are NOT wide track.
Top

Topic author
FATMAN
Posts: 1697
Joined: Sat Jan 19, 2019 9:28 am
First Name: ROBERT
Last Name: BERGSTADT
Location: LOVES PARK IL

Re: Question on early spindle arms

Post by FATMAN » Thu Jan 04, 2024 10:06 am

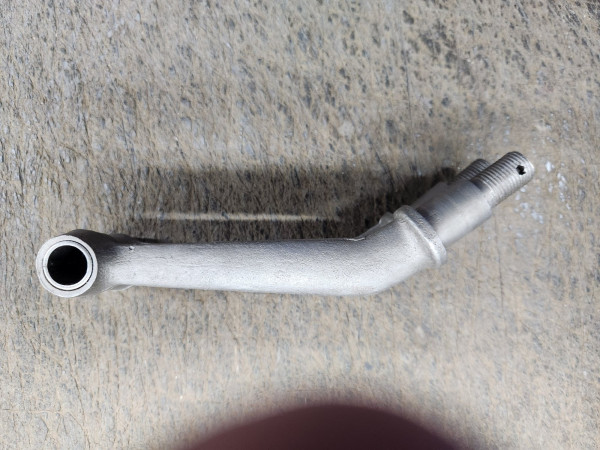

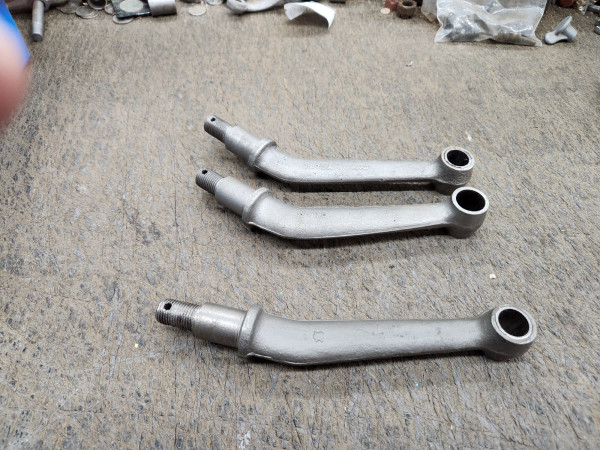

More photos we had about 300 arms over the last 30 years when sorting we found these in 2 separate places bought at separate times what are the odds they match? Bob
Attachments
Top

Allan
Posts: 6609
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
* REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
Location: Gawler, Australia

Re: Question on early spindle arms

Post by Allan » Thu Jan 04, 2024 10:23 pm

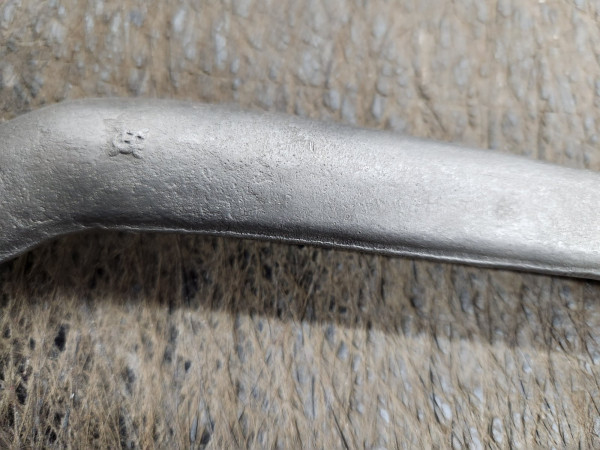

In the last photo there is absolutely no distortion in the part number and the maker's mark. This would suggest there is no modification to the arms, as these marks would be distorted in any bending. The mystery remains.

Allan from down under.
Top

Topic author
FATMAN
Posts: 1697
Joined: Sat Jan 19, 2019 9:28 am
First Name: ROBERT
Last Name: BERGSTADT
Location: LOVES PARK IL

Re: Question on early spindle arms

Post by FATMAN » Fri Jan 05, 2024 9:32 am

Could it have been made for some kind of racer or 1st year after 1 pc spindles? Bob
