Almost e ashamed to ask, I know I have seen it, but a Google search cannot find it, but it may be a Google thing. Can anyone share with me the correct order of assembly for the radiator and sheet metal on a 26/27?
I have no felt washer or rubber pads, just sheet metal.
Fenders
Shelves
Radiator
Radiator shell
Lower front splash apron
I'm presuming fenders first and I need to do some welding and repairs to fendr and don't want to install radiator and hoses and then have to take all off for fender installation.
I know this has been repeated a gazillion times, but, again, I tried to search and could not find it.
Order of sheet metal assembly. 26/27 radiator.
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
signsup
Topic author - Posts: 472
- Joined: Thu Jan 10, 2019 12:56 pm
- First Name: Robert
- Last Name: Brough
- * REQUIRED* Type and Year of Model Ts owned: 1915 War Wagon 1927 Depot Hack 1927 TT
- Location: Winston, GA
- Board Member Since: 2015
Order of sheet metal assembly. 26/27 radiator.
Why do we drive on parkways and park on driveways?
A bunch of old cars
Sometimes they run.
Sometimes, they don't.
A bunch of old cars
Sometimes they run.
Sometimes, they don't.
-
perry kete
- Posts: 1629
- Joined: Sun Jan 06, 2019 11:46 am
- First Name: Dennis
- Last Name: Seth
- * REQUIRED* Type and Year of Model Ts owned: 1922 Coupe 1927 Touring
- Location: Jefferson Ohio
Re: Order of sheet metal assembly. 26/27 radiator.

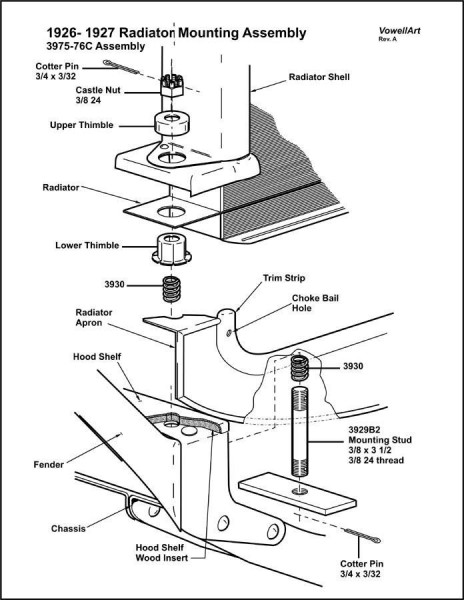

The drawings for the sequence of sheet metal assembly for your radiator is uploaded on the MTFCA homepage under the resource section under drawings by Vowellart
