Tire flaps . . . canvas vs. rubber?

Post by signsup » Thu Feb 15, 2024 11:30 am

Don't flame me for bringing up the dreded tire flap topic, I've made the decision to use flaps on my 21" demountable rims. But, my question is . . . I have obtained the typical rubber tire flaps as well as two canvas strips that were used as flaps at some point in time. This is new to me, not being rubber. I obviousely have four rubber flaps to use, but the canvas flap intriques me as these will go on my WWI ambulance project. Adn, a military or Red Cross motor pool would have used the resources available to get a vehicle back into service. So, these canvas flaps have seen their better days and I would not reuse them, but use them as a pattern to reconstruct new canvas webbing flaps.

Is there something I need to be aware of in attempting to use canvas webbing instead of rubber? Moisture retention? Scuffing?

I will sand and treat the rims prior to installation to get them as smooth as possible and my experience in the WWII combat rim flap installation is that 75 prcent of the requirement for them was not pinching the tube during installation and 25 percent tube protection during use. So, I'm thinking the same.

Thoughts?

And, when we are done discussing this, we can move on to Marvel Mystery Oil .

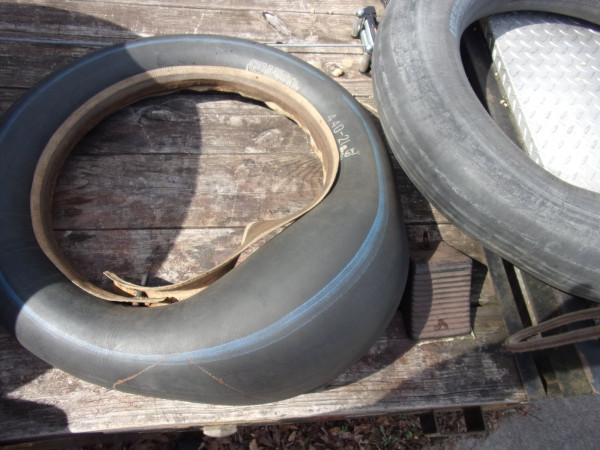

canvas flap 1.JPG

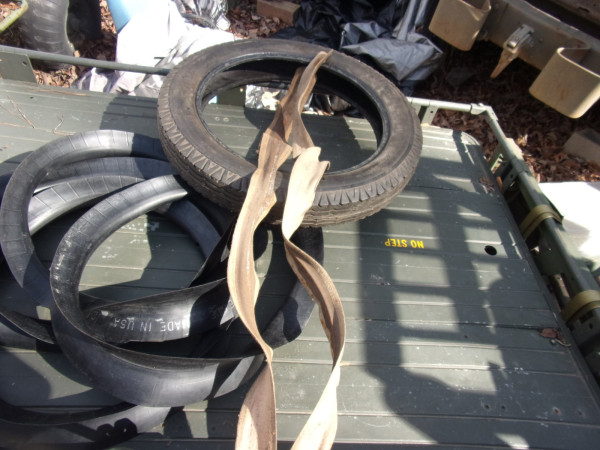

canvas flap 2.JPG
Why do we drive on parkways and park on driveways?

A bunch of old cars
Sometimes they run.
Sometimes, they don't.


Erik Johnson
Posts: 1055
Joined: Mon Feb 04, 2019 10:25 pm
First Name: Erik
Last Name: Johnson
Location: Minneapolis, MN

Re: Tire flaps . . . canvas vs. rubber?

Post by Erik Johnson » Thu Feb 15, 2024 11:56 am

I can't comment on canvas vs rubber flaps.

However, because you are mounting balloon tires on split rims, installing tire flaps is absolutely correct and not controversial. Flaps are required to protect the rim from the split and the rim lock.

The controversy pertains to using flaps with clincher tires and rims.

User avatar

Mark Gregush
Posts: 5370
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
* REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1948 F2 Ford flat head 6 pickup 3 speed
Location: Portland Or
Board Member Since: 1999

Re: Tire flaps . . . canvas vs. rubber?

Post by Mark Gregush » Thu Feb 15, 2024 12:15 pm

Are you sure the canvas one isn't felt? I have one that came out of my 1920 Dodge Brothers that is a felt material. It is not homemade. The edges are tapered with thicker center.
I know the voices aren't real but damn they have some good ideas! :shock:

1925 Cut down pickup
1948 Ford F2 pickup

User avatar

Humblej
Posts: 1957
Joined: Sun Jan 06, 2019 12:23 pm
First Name: Jeff
Last Name: Humble
* REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
Location: Charlevoix, Mi
Board Member Since: 2006

Re: Tire flaps . . . canvas vs. rubber?

Post by Humblej » Thu Feb 15, 2024 12:57 pm

If as you say you have already obtained new rubber flaps, why are you considering using something home made and from non standard material? I have been involved with Model T's for over 50 years and am unaware of canvas tire flaps. Using logic as to what the WWI Red Cross motor pool might have on hand is mute since demountable rims were not available until 1919 and 21" split rims were not available until 1925.

User avatar

RajoRacer
Posts: 5171
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: Tire flaps . . . canvas vs. rubber?

Post by RajoRacer » Thu Feb 15, 2024 1:27 pm

I have removed "era" canvas flaps from T tires !


Topic author
signsup
Posts: 472
Joined: Thu Jan 10, 2019 12:56 pm
First Name: Robert
Last Name: Brough
* REQUIRED* Type and Year of Model Ts owned: 1915 War Wagon 1927 Depot Hack 1927 TT
Location: Winston, GA
Board Member Since: 2015

Re: Tire flaps . . . canvas vs. rubber?

Post by signsup » Thu Feb 15, 2024 1:54 pm

They may very well be felt. My wife felt them and believed them to be covered with flannel as the inner side that was not subject to metal rim exposure feels fuzzy. And, yes, I thought it was formed that way after decades of use, but they could be thicker in the center and thinner at the sidewall tucked in edges.
I'm not hearing that moisture retention is a concern. If it was, I was even thinking nylon web strapping to use as a flap.

Yes, I have the rubber flaps. But, perhaps someone else can use tthem as I have the resources to consider another option. And, I like the canvas web strap story in my military vehicle. This is the look I am going for. I just presumed the spare tire mounted on the side panel of this example was a demountable as it has no wooden spokes. I guess it could be a clincher tire, but don't know why they would carry one that needed an entire wheel disassembly.

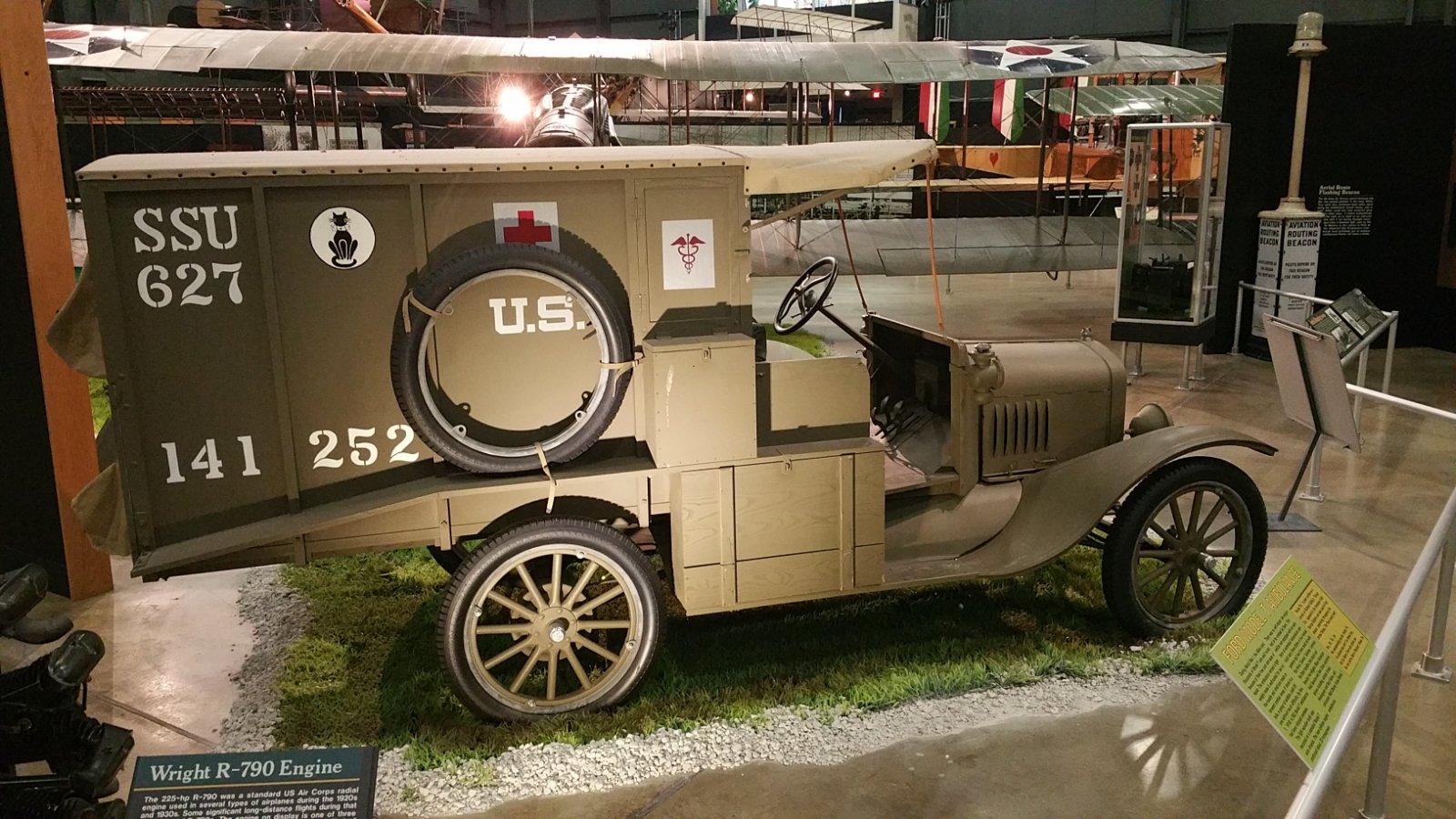

example 1.jpg
Why do we drive on parkways and park on driveways?

A bunch of old cars
Sometimes they run.
Sometimes, they don't.


Jerry VanOoteghem
Posts: 4082
Joined: Sun Jan 06, 2019 4:06 pm
First Name: Jerry
Last Name: Van
Location: S.E. Michigan

Re: Tire flaps . . . canvas vs. rubber?

Post by Jerry VanOoteghem » Thu Feb 15, 2024 2:04 pm

Humblej wrote:
Thu Feb 15, 2024 12:57 pm
... why are you considering using something home made and from non standard material?
Not home made or non-standard. Just another construction used in the Model T era.

That said, I'd use the new rubber ones.


speedytinc
Posts: 4725
Joined: Fri Feb 12, 2021 12:24 pm
First Name: john
Last Name: karvaly
* REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
Location: orange, ca
Board Member Since: 2020

Re: Tire flaps . . . canvas vs. rubber?

Post by speedytinc » Thu Feb 15, 2024 2:42 pm

signsup wrote:
Thu Feb 15, 2024 1:54 pm
They may very well be felt. My wife felt them and believed them to be covered with flannel as the inner side that was not subject to metal rim exposure feels fuzzy. And, yes, I thought it was formed that way after decades of use, but they could be thicker in the center and thinner at the sidewall tucked in edges.
I'm not hearing that moisture retention is a concern. If it was, I was even thinking nylon web strapping to use as a flap.

Yes, I have the rubber flaps. But, perhaps someone else can use tthem as I have the resources to consider another option. And, I like the canvas web strap story in my military vehicle. This is the look I am going for. I just presumed the spare tire mounted on the side panel of this example was a demountable as it has no wooden spokes. I guess it could be a clincher tire, but don't know why they would carry one that needed an entire wheel disassembly. example 1.jpg
That type of demount-able rim was not offered until 1919.
Another incorrect representation.


Jerry VanOoteghem
Posts: 4082
Joined: Sun Jan 06, 2019 4:06 pm
First Name: Jerry
Last Name: Van
Location: S.E. Michigan

Re: Tire flaps . . . canvas vs. rubber?

Post by Jerry VanOoteghem » Thu Feb 15, 2024 3:14 pm

Yes, I have the rubber flaps. But, perhaps someone else can use them as I have the resources to consider another option. And, I like the canvas web strap story in my military vehicle. This is the look I am going for.
Canvas web strap story????

As to the "look" you're going for, nobody will ever see the flaps as they're hidden inside the tires.


Allan
Posts: 6609
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
* REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
Location: Gawler, Australia

Re: Tire flaps . . . canvas vs. rubber?

Post by Allan » Thu Feb 15, 2024 4:08 pm

Eric is right. Flaps are meant to be used on split rims. They offer protection to the tube, especially at the split.
I would stick to rubber flaps. They will stretch/relax. They need to stretch when the rim is again spread to lock the split.

Allan from down under.


Norman Kling
Posts: 4634
Joined: Tue Jan 08, 2019 1:39 pm
First Name: Norman
Last Name: Kling
Location: Alpine California

Re: Tire flaps . . . canvas vs. rubber?

Post by Norman Kling » Thu Feb 15, 2024 4:21 pm

Two points I will make.
The wheels are not correct for the era of the car, and they show to a viewer. The flaps are hidden inside the tires and will not be seen, so use the rubber flaps.
I personally would be more concerned with what is seen by the person looking at the car, than what is hidden inside.
Norm


Topic author
signsup
Posts: 472
Joined: Thu Jan 10, 2019 12:56 pm
First Name: Robert
Last Name: Brough
* REQUIRED* Type and Year of Model Ts owned: 1915 War Wagon 1927 Depot Hack 1927 TT
Location: Winston, GA
Board Member Since: 2015

Re: Tire flaps . . . canvas vs. rubber?

Post by signsup » Thu Feb 15, 2024 6:58 pm

Well, I'm not one of those guys that comes here looking for validation for something that my mind was already made up on. I'll bow to the will of the masses. Rubber flaps it is.

TO THE BABY POWDER!!!
Why do we drive on parkways and park on driveways?

A bunch of old cars
Sometimes they run.
Sometimes, they don't.


Wayne Sheldon
Posts: 4249
Joined: Sun Jan 06, 2019 3:13 pm
First Name: Wayne
Last Name: Sheldon
* REQUIRED* Type and Year of Model Ts owned: 1915 Runabout 1913 Speedster
Location: Grass Valley California, USA
Board Member Since: 2005

Re: Tire flaps . . . canvas vs. rubber?

Post by Wayne Sheldon » Thu Feb 15, 2024 7:04 pm

The original era cloth/canvas/felt liners I have seen were well made, formed to fit the compound curvature inside the tire, and far superior to any rubber flaps I have ever seen. The 1927 Paige my dad bought over fifty years ago had several original tire liners in its wheels. I still have them, some inside the newer tires on the wheels now.
If they are in good condition, keep them, maybe use them, whether on this T or another car, doesn't matter. They are an example of how things were made back in the day, but not some sort of battle zone "make-do".


Topic author
signsup
Posts: 472
Joined: Thu Jan 10, 2019 12:56 pm
First Name: Robert
Last Name: Brough
* REQUIRED* Type and Year of Model Ts owned: 1915 War Wagon 1927 Depot Hack 1927 TT
Location: Winston, GA
Board Member Since: 2015

Re: Tire flaps . . . canvas vs. rubber?

Post by signsup » Thu Feb 15, 2024 7:19 pm

I can always make seat belts out of them. But, I can still tell their story, perhaps a little better with them out of the wheels to use as show and tell.
Why do we drive on parkways and park on driveways?

A bunch of old cars
Sometimes they run.
Sometimes, they don't.


jiminbartow
Posts: 2433
Joined: Sun Jan 06, 2019 10:55 pm
First Name: James
Last Name: Patrick
* REQUIRED* Type and Year of Model Ts owned: 1926 Coupe
Location: Bartow, FL
Board Member Since: 2001

Re: Tire flaps . . . canvas vs. rubber?

Post by jiminbartow » Thu Feb 15, 2024 8:50 pm

Rubber is the best choice for the purpose and on split rims, is crucial. On rusted, pitted split rims, is even more so. Jim Patrick


Allan
Posts: 6609
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
* REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
Location: Gawler, Australia

Re: Tire flaps . . . canvas vs. rubber?

Post by Allan » Thu Feb 15, 2024 9:42 pm

Agreed James. felt/canvas will wet at the split, and retain this moisture for some time. It is rust out from the split which causes many failures on T split rims. The sides of the rim get thinner over time due to rust at the join. I have seen some cruse welding jobs to correct this.

Allan from down under.


schwabd1
Posts: 255
Joined: Sun Jan 06, 2019 7:26 pm
First Name: David
Last Name: Schwab
Location: Northwest Ohio

Re: Tire flaps . . . canvas vs. rubber?

Post by schwabd1 » Fri Feb 16, 2024 6:31 pm

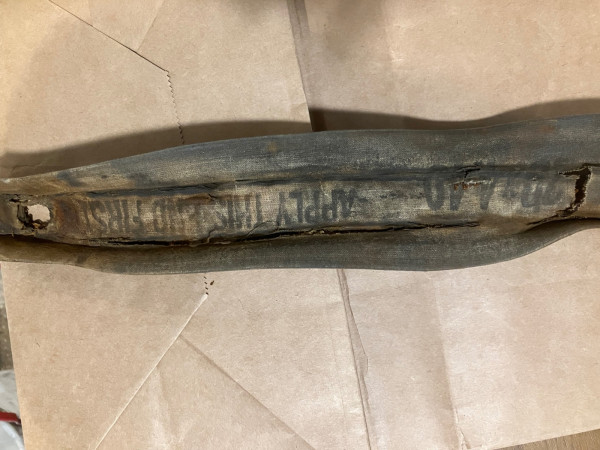

Look what I found! An old ripped up flap…. It says “20 x 4.40 APPLY THIS END FIRST”. It’s a 1/16” thick X 3” wide piece of rubber tapered down to nothing on the outside edges wrapped in a thin canvas type material.


schwabd1
Posts: 255
Joined: Sun Jan 06, 2019 7:26 pm
First Name: David
Last Name: Schwab
Location: Northwest Ohio

Re: Tire flaps . . . canvas vs. rubber?

Post by schwabd1 » Fri Feb 16, 2024 6:32 pm

Sorry about the upside down picture…..
