Ford Special Racer, it's about a wrap.

Post by Rob » Wed May 29, 2019 12:40 pm

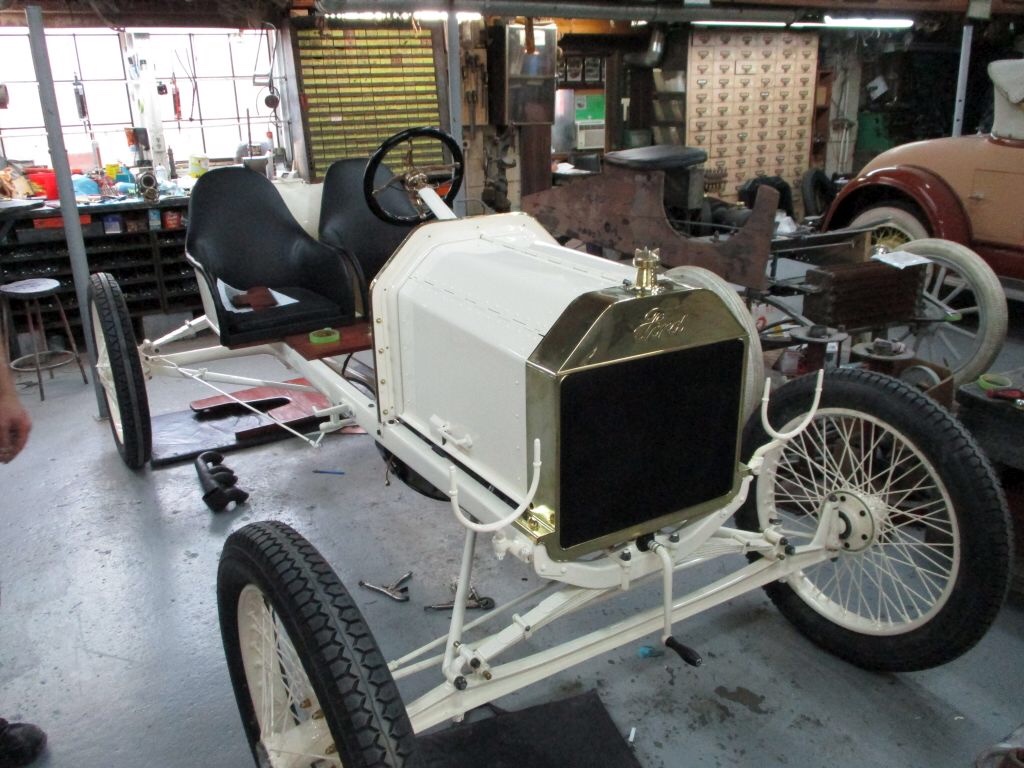

Just received the latest pics. If all goes well, it's on the way back to Nebraska next week.

User avatar

Henry K. Lee
Posts: 3249
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN
MTFCA Number: 479
MTFCA Life Member: YES

Re: Ford Special Racer, it's about a wrap.

Post by Henry K. Lee » Wed May 29, 2019 12:46 pm

Rob,

Absolutely Beautiful!!!! Be a Proud Daddy!

All the Best,

Hank

User avatar

RustyFords
Posts: 1329
Joined: Sun Jan 06, 2019 11:16 am
First Name: Don
Last Name: Allen
Location: Houston, TX
MTFCA Number: 50001

Re: Ford Special Racer, it's about a wrap.

Post by RustyFords » Wed May 29, 2019 1:06 pm

That right there is some high level coolness.

Thanks for posting the photos.
1924 Touring

User avatar

Topic author
Rob
Posts: 587
Joined: Fri Jan 04, 2019 1:53 pm
First Name: Rob
Last Name: Heyen
Location: Eastern Nebraska

Re: Ford Special Racer, it's about a wrap.

Post by Rob » Wed May 29, 2019 1:49 pm

Thanks guys. For a little context, four Ford Special racers dressed in white:


DHort
Posts: 987
Joined: Sun Jan 06, 2019 1:30 pm
First Name: DAVID
Last Name: HJORTNAES
Location: Men Falls, WI
MTFCA Number: 28762
MTFCI Number: 22402

Re: Ford Special Racer, it's about a wrap.

Post by DHort » Wed May 29, 2019 1:54 pm

Super. Will you have a number on the gas tank or the radiator?


Wayne Sheldon
Posts: 1732
Joined: Sun Jan 06, 2019 3:13 pm
First Name: Wayne
Last Name: Sheldon
Location: Grass Valley Califunny, USA
Board Member Since: 2005

Re: Ford Special Racer, it's about a wrap.

Post by Wayne Sheldon » Wed May 29, 2019 4:14 pm

Oh yeah that thing is looking sweet and mean!
It looks to me like Ford never had any number painted on that were meant to be permanent. The number "12" car pictured above (a picture posted often) appears to have the number in black tape. It was most likely that old style black cloth electrical tape as there were not many "tape" options available at that time. Although the demand for that stuff is limited these days, I have seen it in hardware stores in recent years.

I know that Ford had these cars originally configured to "quick change" the seats and gasoline tanks to favor different kinds of speed contests. Are you having the smaller gasoline tank made and painted ready to use? Or the seats set up to change in or out? As I recall, you already said you were having both wood and wire wheels done for the car.

Thank you so much for taking us along on this quest! Remarkable to say the least!

User avatar

perry kete
Posts: 720
Joined: Sun Jan 06, 2019 11:46 am
First Name: Dennis
Last Name: Seth
Location: Jefferson Ohio

Re: Ford Special Racer, it's about a wrap.

Post by perry kete » Wed May 29, 2019 5:19 pm

WOW! That is beautiful
1922 Coupe & 1927 Touring

User avatar

Topic author
Rob
Posts: 587
Joined: Fri Jan 04, 2019 1:53 pm
First Name: Rob
Last Name: Heyen
Location: Eastern Nebraska

Re: Ford Special Racer, it's about a wrap.

Post by Rob » Wed May 29, 2019 5:24 pm

Dave and Wayne,
I'll probably have magnetic numbers made that may be placed on the gas tank. The aluminum hood doesn't give me the same option. I know places like Kinkos in Lincoln make a mesh sign material that might make a radiator number, although I don't know if it will stand up to heat.

A few period photos of Fords with numbers;
This is a version of the largest Ford racer taken at the Detroit Branch Store over the winter of 1911-12:

At one of the summer 1910 races:


spadpilot
Posts: 56
Joined: Mon Jan 14, 2019 12:43 pm
First Name: David
Last Name: Carnahan
Location: Northern California
MTFCA Number: 49550

Re: Ford Special Racer, it's about a wrap.

Post by spadpilot » Wed May 29, 2019 5:33 pm

WELL DONE INDEED!!! It's a real beauty.

Best
Dave Carnahan
...some people are like Slinkies....they're generally useless but fun to watch when you push them down the stairs.

User avatar

Topic author
Rob
Posts: 587
Joined: Fri Jan 04, 2019 1:53 pm
First Name: Rob
Last Name: Heyen
Location: Eastern Nebraska

Re: Ford Special Racer, it's about a wrap.

Post by Rob » Wed May 29, 2019 5:54 pm

Dave, thanks.

Wayne, i meant to answer, I probably won't make another tank. We will have the wood wheels although I'm not sure I'll ever put them on. The back wire wheels are 32 inch giving us a slightly higher gearing. Along with 3:1 ring and pinion it should be a good "go fast" racer.


Wayne Sheldon
Posts: 1732
Joined: Sun Jan 06, 2019 3:13 pm
First Name: Wayne
Last Name: Sheldon
Location: Grass Valley Califunny, USA
Board Member Since: 2005

Re: Ford Special Racer, it's about a wrap.

Post by Wayne Sheldon » Wed May 29, 2019 6:21 pm

For my previous speedster, I considered it more of a road car than a racing car, so I didn't want to paint a number onto the radiator. I also didn't want to paint over paint and build up insulating coatings on the radiator. So I got some wire mesh/screen. I think 1/8 inch galvanized would work best. I cut the number I was using slightly oversize, then rolled about a quarter inch underside all around the number. Painted with silver paint, and carefully wired onto the radiator with soft copper wire, it showed up very well on the black painted radiator core.
The SCVMTFC for their Endurance Run required a number on the front so that timers could see what car was coming and be prepared to mark them off on their time sheets.

Poster type artist paints will wash off with water, and could be used for other places on the car. HOWEVER, they do tend to stain even most quality paints if used too often or left very long. I used to know a few people that tried that and proved it the hard way. An old racer's trick is to use a piece of old linen, held onto the car with honey. It is quite sticky, and holds very well. It does not appear to stain the paint, and generally rinses off with water and a bit of elbow grease. I have done that a couple times just to try it. However I haven't tried it on more recent types of paint, so can't be certain how well it would work with them.


KeithG
Posts: 357
Joined: Thu Jan 03, 2019 3:00 pm
First Name: Keith
Last Name: Gumbinger
Location: Kenosha, WI
MTFCA Number: 4661
MTFCA Life Member: YES
MTFCI Number: 6866
Board Member Since: 1999

Re: Ford Special Racer, it's about a wrap.

Post by KeithG » Wed May 29, 2019 10:33 pm

It looks really nice, Rob. Can't wait to see it in person....
Keith
'14 Touring, '26 Roadster Pickup, '27 Fordor, '25 TT C Cab with Express Bed.
Motto: It's hard to build a garage that's tooooo big! :D

User avatar

Kaiser
Posts: 463
Joined: Mon Jan 07, 2019 5:32 am
First Name: Leo
Last Name: van Stirum
Location: Netherlands
Board Member Since: 2016

Re: Ford Special Racer, it's about a wrap.

Post by Kaiser » Thu May 30, 2019 7:10 am

Absolutely gorgeous, stunning racer Rob ! :D
When in trouble, do not fear, blame the second engineer ! 8-)
Leo van Stirum, Netherlands
'23 Huckster, '66 CJ5 daily driver


Drkbp
Posts: 138
Joined: Sun Jan 06, 2019 11:28 am
First Name: Kenneth
Last Name: Parker
Location: Houston, Texas

Re: Ford Special Racer, it's about a wrap.

Post by Drkbp » Thu May 30, 2019 7:18 am

Beautiful!! :)
Love your idea about the magnetic numbers. I vote for "12".. :D
Get your goggles ready!! 8-)

User avatar

perry kete
Posts: 720
Joined: Sun Jan 06, 2019 11:46 am
First Name: Dennis
Last Name: Seth
Location: Jefferson Ohio

Re: Ford Special Racer, it's about a wrap.

Post by perry kete » Thu May 30, 2019 9:12 am

Not only "get your goggles ready" but also your drone so we can ride with you!
1922 Coupe & 1927 Touring


MWalker
Posts: 274
Joined: Fri Jan 04, 2019 9:49 am
First Name: Mike
Last Name: Walker
Location: NW Arkansas
MTFCA Number: 314
MTFCA Life Member: YES

Re: Ford Special Racer, it's about a wrap.

Post by MWalker » Thu May 30, 2019 9:34 am

It's looking great, Rob, Congratulations! Those guys are doing a beautiful job on it.


DHort
Posts: 987
Joined: Sun Jan 06, 2019 1:30 pm
First Name: DAVID
Last Name: HJORTNAES
Location: Men Falls, WI
MTFCA Number: 28762
MTFCI Number: 22402

Re: Ford Special Racer, it's about a wrap.

Post by DHort » Thu May 30, 2019 11:47 am

Rob,

Wondering how Peter is going to accommodate those headlamp holders in building your car. None of the earlier pictures have headlights. I am assuming you plan on a few nighttime runs. Do you have an acetylene tank to place on the side of the car?

Just give Julie a can of red rustoleum and a 1 inch brush. She will get you the right number. :)

User avatar

Topic author
Rob
Posts: 587
Joined: Fri Jan 04, 2019 1:53 pm
First Name: Rob
Last Name: Heyen
Location: Eastern Nebraska

Re: Ford Special Racer, it's about a wrap.

Post by Rob » Thu May 30, 2019 1:42 pm

Thanks guys.
Wayne, good ideas on numbers.
Dave, there are a few Ford Special racer photos with headlamps. A few of the races the Specials ran in were long enough to require headlamps:
Below is a photo of the Ford Special 3 liter racer sent to France, with headlamp forks:
Courtesy of THF, all rights apply.
I'm not sure where I'll mount the prest-o-lite tank yet.
